Richtek

工業、 汽車和LED照明應用的寬輸入電壓範圍DC/DC電源轉換方案



簡介

立錡科技擁有各種各樣的電源轉換方案,其輸入電壓範圍涵蓋1.4V至80V的寬闊空間,可供工業、汽車和專業照明等廣泛的領域使用。

此應用筆記將立錡科技的部分線性和開關模式轉換器列入其中,內容涵蓋低耗電線性穩壓器(LDO)、高效率升壓/降壓DC/DC轉換器和控制器、LED驅動器、功率開關和DDR記憶體匯流排終端調節器。

  • 列入其中的很多器件具有特別的性能,有的具有PGOOD信號,有的具有可程式設計的軟起動特性。
  • 立錡科技的很多Buck轉換器採用了魯棒性極高的控制架構,ACOT®就是其中之一,利用這種特殊的控制架構,補償電路不再被需要,使用起來也特別簡單。
  • 很多器件採用了熱性能得到強化的封裝,容許使用在較高的溫度環境之下。
  • 針對工業和汽車應用,立錡科技提供經過三溫(3T)測試和AEC-Q100認證的產品,它們可在-40°C ~ 85°C工業溫度範圍內穩定工作並確保相應的性能。
  • 所有器件都可使用陶瓷電容作為輸入、輸出電容,可以大大延長產品使用壽命。

由於具有這些特性,這些器件可以滿足如下應用場合的需要,但又絕不僅限於此。

描述: D:\Task file\03.eNews\10-Issue 10\Icons\Icon_Industrial.jpg

描述: D:\Task file\03.eNews\10-Issue 10\Icons\Icon_Car.jpg

描述: D:\Task file\03.eNews\10-Issue 10\Icons\Icon_Communication.jpg

描述: D:\Task file\03.eNews\10-Issue 10\01-Pictures\Icons\新增資料夾\Icon_LED_Lighting-2.jpg.png

工業

  • 電錶
  • 嵌入式計算
  • 工業控制系統
  • 可擕式設備
  • 測試儀器
  • 工業攝像機

汽車

  • 車載資訊、娛樂設備
  • USB電源

通訊

  • 網路設備
  • 伺服器
  • 數據存放裝置

專業LED照明

  • 汽車照明
  • 路燈
  • 顯示照明
  • 照明控制系統

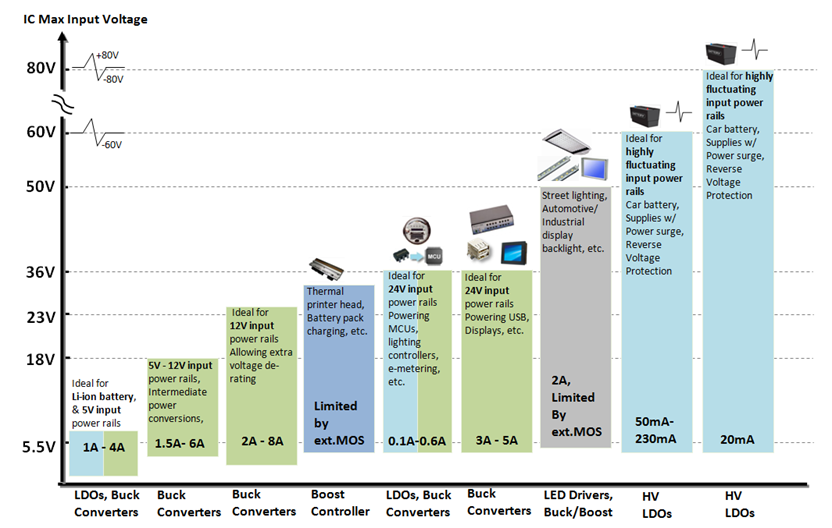

工業、汽車和LED照明應用選型概要

Technical Document Image Preview



Buck轉換器和LDO


輸入電壓1.4V~6V、電流高達4A的Buck轉換器或LDO

最適合以鋰離子電池為電源的應用需要的產品,5V供電場合的需要也被涵蓋其中。

Technical Document Image Preview

P/N

Description

IOUT

VIN

VOUT

fSW

Key Features

Package

RT2657BQ

Synchronous

Buck converter

0.6A

2.7V~5.5V

0.6V~5.5V

2.25MHz

· AEC-Q100 Compliance

· Built-in Soft-Start

· 1.5A Current limit peak

WDFN-8L 3x3

RT5712A

2A

2.7V~5.5V

0.6V~3.4V

1MHz

· RON 100mΩ HS / 70mΩ LS

· 1.2ms fixed Soft-Start

· CMCOT topology: good transient response, stable with MLCC

· Hiccup or Latch off UVP

WDFN-6L-2x2

RT8079

3A

2.95V~6V

VREF: 0.827V

300kHz~2MHz

· RON 45mΩ HS / 45mΩ LS

· Power Good

· Adjustable Soft-Start

WQFN-16L-3x3

RT8086B

3.5A

2.8V~5.5V

0.6V~3.3V

1.2MHz

· RON 50mΩ HS / 40mΩ LS

· CMCOT topology: good transient response, stable with MLCC

· Power Good

· Built-in Soft-Start

· Hiccup UVP

UQFN-12L-2x2 (FC)

RT8074

4A

2.7V~5.5V

0.8V~5V

200kHz~2MHz

· Built-in Soft-Start

PSOP-8

P/N

Description

IOUT

VIN

VOUT

VDropout

Key Features

Package

RT2517B

LDO

1A

2.2V~6V

1.2V~VIN

200mV@1A

· AEC-Q100 Compliance

· Low Quiescent 1.5µA in Shutdown Mode

PSOP-8

RT2517C

1A

2.2V~6V

1.2V~VIN

150mV@1A

· 3T Grade

· Low Quiescent 0.1µA in Shutdown Mode

VDFN-8AL-3x3

RT2518

LDO with EN

1A

1.4V~6V

0.5V~VIN

200mV@1A

· 3T Grade

· EN control

WDFN-8L-3x3

RT2515H

2A

1.4V~6V

0.5V~VIN

400mV@2A

· 3T Grade

· EN control

PSOP-8



4V~18V輸入、負載電流能力達6A的Buck轉換器

最適合5V~12V輸入電壓範圍的應用。

Technical Document Image Preview

P/N

Description

IOUT

VIN

VOUT

fSW

Key Features

Package

RT8297B

Current Mode Synchronous Buck converter

1.5A

4V~17V

0.8V~12V

800kHz

· Power Good

WDFN-8L-2x2

RT6232/33/A/B

A:PSM

B:PWM

ACOT® Synchronous

Buck converter

2A/3A

4.5V~18V

0.765V~8V

500kHz

· ACOT® topology for ultra-fast transient response and MLCC COUT stable

· Adjustable Soft-Start

· Power Good

· Force PWM or PSM (enhanced light load efficiency)

WDFN-8L-2x3

RT7275/76

75:PWM

76:PSM

3A

700kHz

WDFN-10L-3x3

PTSSOP-14

RT7231/32

31:PWM

32:PSM

4A

650kHz

WDFN-10L-3x3

PTSSOP-14

RT6206B

PSM

5.5A

650kHz

WDFN-10L-3x3

PSOP-8

RT2859A/B

A:PSM

B:PWM

ACOT® Synchronous

Buck converter

3A

4.5V~18V

0.765V~7V

650kHz

· 3T Grade

· ACOT® topology for ultra-fast transient response and MLCC COUT stable

· Adjustable Soft-Start

· Power Good

· Hiccup or Latch off UVP

WDFN-16L-3x3

RT2855A/B

A:PSM

B:PWM

4A

650kHz

WDFN-16L-3x3

RT2856

Current Mode Synchronous Buck converter

6A

4.5V~18V

VREF: 0.8V

200kHz~1.6MHz

· 3T Grade

· RON 26mΩ HS / 19mΩ LS

· Adjustable Soft-Start

· Power Good

· VREF:0.8V ±1% over -40°C ~ 85°C

WQFN-14AL-3.5x3.5



3V~24V輸入、負載電流能力高達8A的Buck轉換器

非常適合12V輸入電壓的應用,容許輸入電壓在較寬的範圍內變化。

Technical Document Image Preview

P/N

Description

IOUT

VIN

VOUT

fSW

Key Features

Package

RT7262/63/64

Current Mode Synchronous Buck converter

2A/3A/4A

4.5V~21V

0.808V~15V

500kHz

· Synchronized external clock from 300kHz~2MHz

· Adjustable Soft-Start

· Low LS RON ideal for low VOUT

WDFN-14L-4x3

PSOP-8

RT8299

3A

3V~24V

0.8V~15V

500kHz

· Power Good and very wide VIN range

WDFN-10L-3x3

PSOP-8

RT6220

ACOT® Synchronous

Buck converter

6A

4.5V~23V

0.6V~5V

500kHz

· ACOT® topology for ultra-fast transient response and MLCC COUT stable

· RON 31mΩ HS / 20mΩ LS

· Power Good

UQFN-16L-3x3(FC)

RT7238

ACOT® Synchronous

Buck converterwith 3.3V/5V LDO

8A

8V~23V

0.9V~5V Adj.

3.35V fixed

5.0V fixed

500kHz

· ACOT® topology for ultra-fast transient response and MLCC COUT stable

· RON 27mΩ HS / 10mΩ LS

· With fixed 70mA 3.3V/5V LDO

UQFN-10L-3x3(FC)

參考閱讀:

應用筆記: "Buck converter selection criteria"

應用筆記: "降壓轉換器架構之比較"

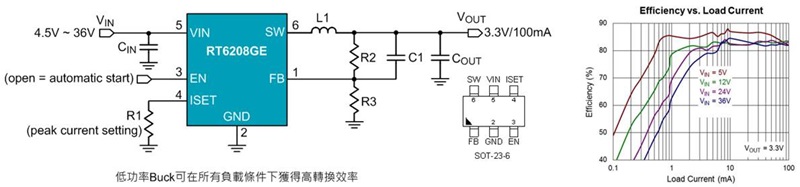

3.5V~36V輸入電壓、負載電流高達0.6A的Buck轉換器/低耗電LDO

24V電源供電的低功耗應用的理想選擇,可用於電錶、照明控制、感測器應用等場合。

Technical Document Image Preview

P/N

Description

IOUT

VIN

VOUT

fSW

Key Features

Package

RT6208

Buck converter

0.1A

4.5V~36V

Adj.VOUT

VREF = 0.8V

Hysteretic mode operation using Boundary conduction mode

· Synchronous

· Adjustable current limit

· 25µA IQ

· Very high efficiency at low load

SOT-23-6

PSOP-8(w/PG)

SOT-23-8(w/PG)

RT6200

0.6A

4.5V~36V

0.8V~15V± 2%

1.2MHz

· Asynchronous with internal 0.3Ω HS MOSFET

SOT-23-6

P/N

Description

IOUT

VIN

VOUT

VDropout

Key Features

Package

RT9058

RT2560Q

LDO

100mA

3.5V~36V

2.5V,3.3V,5V,12V fixed

550mV@10mA

· AEC-Q100 Grade(RT2560Q)

· 2µA ultra low IQ

SOT-23-3

SOT-89

PSOP-8

應用筆記: "在工業場合為MCU供電"

Technical Document Image Preview



4.5V~36V輸入、負載能力高達5A的Buck轉換器

24V供電的USB電源、顯示裝置、中功率MCU、儀器儀錶等應用的理想選擇。

Technical Document Image Preview

P/N

Description

IOUT

VIN

VOUT

fSW

Key Features

Package

RT7272A
RT7272B

(PWM/PSM)

Current Mode

Buck converter

3A

4.5V~36V

0.8V~30V

500kHz

· Adjustable current limit: 2.5A~5.5A

· Integrated 150/80mΩ HS/LS MOSFET

PSOP-8

RT2872

3A

4.5V~36V

0.8V~30V

300kHz~1MHz

· AEC-Q100 Grade 3

· 105/80mΩ HS/LS MOSFET

· Ext.compensation

PSOP-8

RT2875A/B

(latch UV/hiccup UV)

3A

4.5V~36V

0.6V~24V

300kHz~2.1MHz

· AEC-Q100 Grade 2

· 95/70mΩ HS/LS MOSFET

· Ext.compensation

· Adjustable current limit:1.5A~6A

PTSSOP-14

RT8289

RT8279

5A

peak

5.5V~32V

5.5V~36V

1.222V~26V

500kHz

· Asynchronous with integrated 100mΩ HS MOSFET

· Internal compensation & Soft-Start

PSOP-8

RT2805A

5A

peak

5.5V~36V

1.222V~26V

500kHz

· 3T Grade

· Asynchronous with integrated 110mΩ HS MOSFET

· Internal compensation & Soft-Start

PSOP-8

Technical Document Image Preview

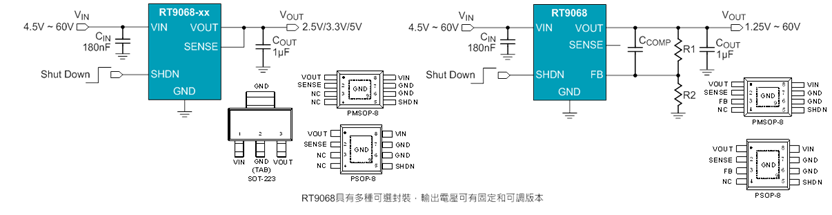

4.5V~80V輸入、負載能力高達230mA的LDO

特別適合使用在存在大範圍電壓波動的場合,它們能承受±60/±80V的電壓衝擊,可為汽車應用提供高可靠的電源供應解決方案,滿足感測器、低功耗MCU等應用需要。

Technical Document Image Preview

P/N

Description

IOUT

VIN

VOUT

VDropout

Key Features

Package

RT2571

LDO

50mA

4.5V~60V

2.5V,3.3V,5V Fixed

1.25-60V Adj.

250mV@50mA

· 30µA low IQ

· -60V reverse protection

PSOP-8, PMSOP-8,
SOT-223

RT9074

100mA

4.5V~60V

2.5V,3.3V,5V Fixed

1.25-60V Adj.

300mV@100mA

· 30µA low IQ

· -60V reverse protection

PSOP-8, PMSOP-8,
SOT-223

RT9068

230mA

4.5V~60V

2.5V,3.3V,5V fixed

1.25V~60V Adj.

230mV@50mA

· 30µA low IQ

· -60V reverse protection

PSOP-8, PMSOP-8,
SOT-223

RT9072A/B

20mA

4.5V~80V

1.25V~60V Adj.

180mV@20mA

· 23µA low IQ

· -80V reverse protection

SOT-23-5,
WDFN-8L 3x3

Technical Document Image Preview



Boost控制器

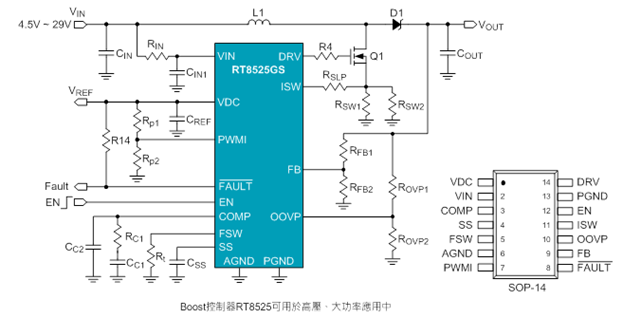

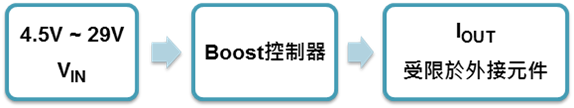

4.5V~29V輸入的Boost控制器

高壓大功率應用的理想選擇,可滿足諸如24V轉48V之類應用的需要,可用於顯示器背光系統、熱敏印表機、電池充電等應用中。

Technical Document Image Preview

P/N

Description

IOUT

VIN

VOUT

fSW

Key Features

Package

RT8525

Boost controller

Limited by ext.MOSFET

4.5V~29V

Limited by MOSFET

50K-600kHz

· Programmable Soft-Start Time

· Programmable Boost SW Frequency

· Fault signaling pin

SOP-14

Technical Document Image Preview



LED驅動器

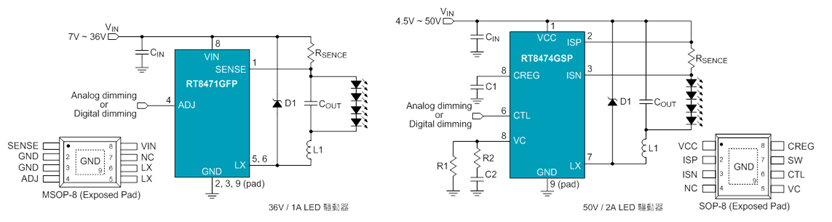

4.5V~50V輸入的恒流降壓轉換器

工業LED照明的理想選擇

Technical Document Image Preview

P/N

Description

IOUT

VIN

Key Features

Where to use, (application examples)

Package

RT8471

Hysteretic control, high brightness LED driver

1/1.2A

7V~36V

· Simple application: no COUT needed

· Analog or digital dimming control

· Ultra-fast response

· Colour control for single string

· LED strips, signage, < 15W

· MR-16 ≤ 4WSingle string buck with color control via LED shunt dimming

TSOT-23-5

PMSOP-8

PSOP-8

RT8474
RT8474A

(A:OVP for hot swap function)

50V high voltage LED driver

2A

4.5V~50V

· Analog or digital dimming control

· Low RON

· LED strips, signage, LED engines, POUT< 30W

· RT8474A with special open string protection is ideal for hot-swap LED string

PSOP-8

Technical Document Image Preview

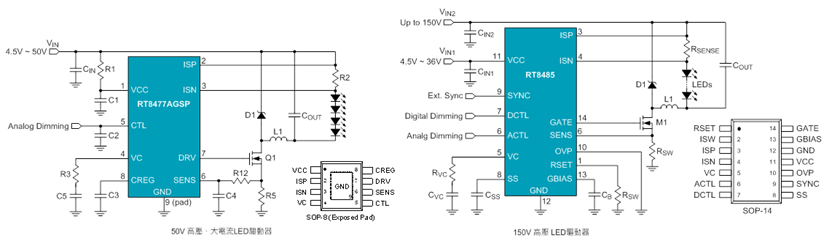

4.5V~150V輸入、輸出電流可達2A的恒流LED驅動器/ Buck-Boost控制器

工業照明/汽車照明的理想選擇,可滿足多顆LED串聯應用、路燈、顯示器背光等應用的需要。

Technical Document Image Preview

P/N

Description

IOUT

VIN

VLED

Key Features

Where to use

Package

RT8477A

Buck / Boost controller

Limited by external MOSFET

4.5V~50V

up to 50V

· low component count

· Analog or PWM Dimming control

· Wide input / output range with medium power: LED modules, down-light, emergency lighting

· Buck ≤ 60W, Boost ≤ 40W

PSOP-8

RT8475/
RT8494

LED Driver Controller for Buck, Boost or Buck-Boost Topology

4.5V~36V

(IC VIN)

up to 90V

· Programmable FSW 100kHzto 1MHz

· Analog or Digital to Analog Dimming control

· Industrial Display Backlight

· AEC-Q100 Compliance (RT8494)

SOP-14,

WQFN-16L 3x3

RT8485

LED Driver controller for

Buck/Boost/Buck-Boost topologies

4.5V~36V

(IC VIN)

up to 150V

· Programmable switching frequency

· Analog, Digital or Digital to Analog Dimming control

· Street lighting

· High power, high LED string application

· Buck ≤ 100W, Boost ≤ 80W

SOP-14

Technical Document Image Preview



功率開關和DDR記憶體匯流排終端調節器

P/N

Description

IOUT

VIN

Key Features

Package

RT2528

Power Switch with adj.ILIM

0.5A~2.5A

2.5V~5.5V

· AEC-Q100 Grade 3

· Adjustable current limit: 0.5A~2.5A via an ext. resistance

· 120mΩ P-MOSFET

· Built-in Soft-Start

· Low supply current:120µA

· Reverse input-out voltage

PSOP-8

RT2526Q

DDR Termination regulator

DDRII/III:2A

VIN:3.1V~3.6V

VLDOIN:1.2V~1.8V

· 3T Grade

· S3, S5 off modes

· MLCC stable

· Remote sense

PSOP-8



相關資源
立錡科技電子報 訂閱立錡科技電子報
檔案下載 PDF 下載



Related Parts
TitlePart NoDocument
2.25MHz 600mA Synchronous Step-Down Converter RT2657BQ
2A, 1MHz, 6V CMCOT Synchronous Step-Down Converter RT5712A
2.95V to 6V Input, 3A Output, 2MHz, Synchronous Step-Down Converter RT8079
3.5A, 1.2MHz, Synchronous Step-Down Converter RT8086B
4A, 2MHz, Synchronous Step-Down Converter RT8074
1A, 6V, Ultra-Low Dropout Linear Regulator RT2517B
1.2A, Ultra-Low Dropout Linear Regulator with Enable RT2518
2A, Low Input Voltage, Ultra-Low Dropout LDO Regulator with Enable RT2515H
1.5A, 17V, 340/800kHz Synchronous Step-Down Converter RT8297ART8297B
2A, 18V, 500kHz, ACOT® Step-Down Converter RT6232ART6232B
3A Peak, 18V, 500kHz, ACOT® Step-Down Converter RT6233ART6233B
3A, 18V, 700kHz ACOT® Synchronous Step-Down Converter RT7275RT7276
4A, 18V, 650kHz, ACOT® Synchronous Step-Down Converter RT7231RT7232RT7233RT7234
5.5A, 18V, 650kHz, ACOTTM Synchronous Step-Down Converter RT6206B
3A, 18V, 650kHz, ACOTTM Synchronous Step-Down Converter RT2859ART2859B
4A, 18V, 650kHz, ACOT® Synchronous Step-Down Converter RT2855ART2855B
6A, 18V, Synchronous Step-Down Converter RT2856
2A, 21V 500kHz Synchronous Step-Down Converter RT7262A
2A, 21V 500kHz Synchronous Step-Down Converter RT7262E
3A, 21V 500kHz Synchronous Step-Down Converter RT7263A
3A, 21V 500kHz Synchronous Step-Down Converter RT7263B
3A, 21V 500kHz Synchronous Step-Down Converter RT7263E
4A, 21V, 500kHz Synchronous Step-Down Converter RT7264A
4A, 21V, 500kHz Synchronous Step-Down Converter RT7264E
3A, 24V, 500kHz Synchronous Step-Down Converter RT8299
6A, 23V, 500kHz, ACOT® Synchronous Buck Converter RT6220
8A, 23V, 500kHz Synchronous Step-Down Converter with 3.3V/5V LDO RT7238BRT7238CRT7238DRT7238E
High Efficiency, 36V 100mA Synchronous Step-Down Converter RT6208
0.6A, 36V, 1.2MHz Step-Down Converter RT6200
36V, 2μA IQ, 100mA Low Dropout Voltage Linear Regulator RT9058
36V, 2μA IQ, 100mA Low Dropout Voltage Linear Regulator RT2560Q
3A, 36V, 500kHz Synchronous Step-Down Converter RT7272A
3A, 36V, 500kHz Synchronous Step-Down Converter RT7272B
3A, 36V, Synchronous Step-Down Converter RT2872
3A, 36V, Synchronous Step-Down Converter RT2875ART2875B
5A, 32V, 500kHz Step-Down Converter RT8289
5A, 36V, 500kHz Step-Down Converter RT8279
5A, 36V, 500kHz Current Mode Asynchronous Step-Down Converter RT2805A
60V, 30μA IQ, Low Dropout Voltage Linear Regulator RT9074
60V, 30μA IQ, Low Dropout Voltage Linear Regulator RT9068
Boost Controller with Dimming Control RT8525
Current Mode Boost Controller RT8525D
120mΩ, 2.5A Power Switch with Adjustable Current Limit RT2528
TOP
