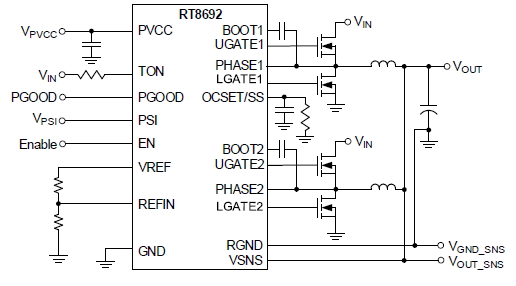

The RT8692 is a 2/1 phase synchronous Buck PWM controller optimized for high performance graphic microprocessor. The IC integrates a Constant-On-Time (COT) PWM controller, two MOSFET drivers with internal bootstrap diodes, as well as channel current balance and protection functions including overvoltage protection (OVP), undervoltage protection (UVP), current limit, and thermal shutdown into the WQFN-20L 3x3 package.

The RT8692 adopts RDS(ON) current sensing technique. Current limit is accomplished through continuous inductor current sensing, while RDS(ON) current sensing is used for accurate channel current balance. Using the method of current sampling utilizes the best advantages of each technique.

The RT8692 features external reference input control, of which the feedback voltage is regulated and tracks external input reference voltage. Other features include adjustable switching frequency, dynamic phase number control, internal soft-start, power good indicator, and enable functions.


  • Desktop PC Memory, VTT Power
  • Chipset/RAM Power Supply
  • Generic DC-DC Power Regulator
Key Spec.
Status Active
Vin (min) (V) 2.5
Vin (max) (V) 26
Vout (min) (V) 0.3
Vout (max) (V) 2
Number of Phases 2
Accuracy (Vout>=1V) (+/- %) 1
Freq Adj Yes
Freq (typ) (kHz) 300
Vcc (typ) (V) 5
Features Adjustable Current Limit;Adjustable Frequency;Adjustable Soft-Start;COT Control;Cycle-by-Cycle Current Limit;Diode Emulation Mode;Enable Input;OVP;Power Good;SCP;UVP

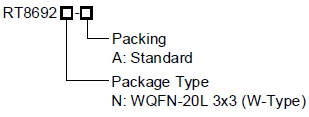

Package Type WQFN3x3-20
  • Dual-Phase PWM Controller
  • VOUT Operating Range: 0.3V to 2V
  • 1% High Accuracy 2V Reference
  • Differential Remote Voltage Sensing
  • Power State Indicator
    ► 1P-CCM/2P-CCM/1P-DEM/2P-DEM
  • Two Embedded MOSFET Drivers and Embedded Switching Boot Diode
  • External Reference Input Control
  • Dynamic Phase Number Control
  • Lossless RDS(ON) Current Sensing for Current Balance
  • Internal/External Soft-Start
  • Adjustable Current-Limit Threshold
  • Adjustable Switching Frequency
  • UVP/OVP Protection
  • Shoot Through Protection and Short Pulse Free Technology
  • Thermal Shutdown
  • Power Good Indicator (EN to PG high = 500μs)
