The RT4801H is a highly integrated Boost and LDO and inverting charge pump to generate positive and negative output voltage. The output voltages can be adjusted from ±4V to ±6V with 100mV steps by I<sup>2</sup>C interface protocols. With its input voltage range of 2.5V to 5.5V, RT4801H is optimized for products powered by single-cell batteries and symmetrical output currents up to 80mA. The RT4801H is available in the WL-CSP-15B 1.31x2.07 (BSC) package.
3

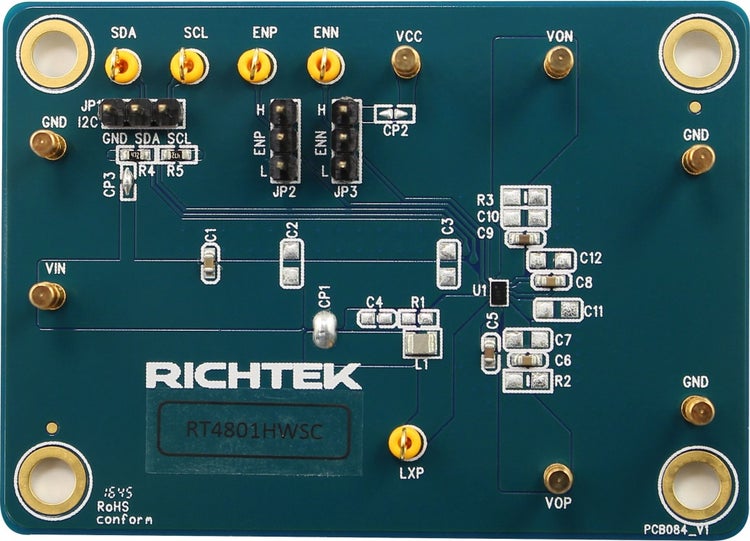

EVB_RT4801HWSC
anchor
overviewSection
i18n(anchor-tab.overview-section.title)
overviewSectionAnchorTab
designResourceSection
i18n(anchor-tab.design-resource-section.title)
designResourceSectionAnchorTab
relatedProductSection
i18n(anchor-tab.related-product-section.title)
relatedProductSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
32
32
32
24
overview
1. Purpose
<p class="MsoNormal">The RT4801H is a dual output LCD bias with the input voltage range from 2.5V to 5.5V and provides 80mA output current. This document explains the function and use of the RT4801H evaluation board (EVB), and provides information to enable operation, output voltage setting of the evaluation board.</p>
2. Introduction
<h3>General Product Information</h3> <p class="bady">The RT4801H is a highly integrated Boost and LDO and inverting charge pump to generate positive and negative output voltage. The output voltages can be adjusted from ±4V to ±6V with 100mV steps by I<sup>2</sup>C interface protocols. With its input voltage range of 2.5V to 5.5V, RT4801H is optimized for products powered by single-cell batteries and symmetrical output currents up to 80mA. The RT4801H is available in the WL-CSP-15B 1.31x2.07 (BSC) package.</p> <h3><br /> Product Feature</h3> <ul> <li> 2.5V to 5.5V Supply Voltage Range </li> <li> Up to 90% Efficiency with Small Magnetics </li> <li> Support Up to 80mA Output Current </li> <li> Low 1µA Shutdown Current </li> <li> Internal Soft-start Function </li> <li> Short Circuit Protection Function </li> <li> Over-Voltage Protection Function </li> <li> Over-Current Protection Function </li> <li> Over-Temperature Protection Function </li> <li> Elastic Positive and Negative Voltage On/Off Control by ENP/ENN </li> <li> Voltage Output from 4V to 6V per 0.1V </li> <li> Low Input Noise and EMI </li> <li> Output with Programmable Fast Discharge when IC Shutdown </li> <li> Adjustable Output Voltage by I<sup>2</sup>C Compatible Interface </li> <li> Available in the 15-Ball WL-CSP Package </li> </ul>
3. Key Performance Summary Table
<table class="MsoTableLightListAccent2" border="1" cellspacing="0" cellpadding="0" width="680" style="width:510.2pt;border-collapse:collapse;border:none"> <tr style="height:17.0pt"> <td width="34%" style="width:34.94%;border:solid #009EB8 1.0pt;background: #009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpFirst">Key Features</p> </td> <td width="65%" style="width:65.06%;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpLast">Evaluation Board Number: PCB084_V1</p> </td> </tr> <tr style="height:17.0pt"> <td width="34%" style="width:34.94%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpFirst">Default Input Voltage</p> </td> <td width="65%" style="width:65.06%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpLast">3.7V</p> </td> </tr> <tr style="height:17.0pt"> <td width="34%" style="width:34.94%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpFirst">Max Output Current</p> </td> <td width="65%" style="width:65.06%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpLast">80mA</p> </td> </tr> <tr style="height:17.0pt"> <td width="34%" style="width:34.94%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpFirst">Default Output Voltage</p> </td> <td width="65%" style="width:65.06%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpLast">V<sub>OP</sub> = 5V, V<sub>ON</sub> = -5V</p> </td> </tr> <tr style="height:17.0pt"> <td width="34%" style="width:34.94%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpFirst">Default Marking & Package Type</p> </td> <td width="65%" style="width:65.06%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpLast">RT4801HWSC, WL-CSP-15B 1.31x2.07 (BSC)</p> </td> </tr> </table>
4. Bench Test Setup Conditions
<p class="MsoNormal"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt4801hwsc/html-images/image001_en.jpg"><img width="453" height="327" id="圖片 3" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt4801hwsc/html-images/image001_en.jpg" alt="Technical Document Image Preview" /></a></p> <p class="2">Carefully inspect all the components used in the EVB according to the following Bill of Materials table, and then make sure all the components are undamaged and correctly installed. If there is any missing or damaged component, which may occur during transportation, please contact our distributors or e-mail us at <a href="mailto:evb_service@richtek.com" class="link">evb_service@richtek.com</a>.</p> <h3><br /> Test Points</h3> <p class="MsoNormal">The EVB is provided with the test points and pin names listed in the table below.</p> <table class="MsoTableLightListAccent2" border="1" cellspacing="0" cellpadding="0" width="680" style="width:520.2pt;border-collapse:collapse;border:none"> <tr> <td width="12%" style="width:12.5%;border:solid #009EB8 1.0pt;background: #009EB8;padding:0cm 5.4pt 0cm 5.4pt"> <p class="23CxSpFirst">Test point/<br /> Pin name</p> </td> <td style="border-right: 1.0pt solid #009EB8; border-top: 1.0pt solid #009EB8; border-bottom: 1.0pt solid #009EB8; width:27%; background:#009EB8; padding:0cm 5.4pt 0cm 5.4pt; border-left-style: none; border-left-color: inherit; border-left-width: medium;"> <p class="23CxSpMiddle">Signal</p> </td> <td width="65%" style="width:65.26%;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt"> <p class="23CxSpLast">Comment (expected waveforms or voltage levels on test points)</p> </td> </tr> <tr> <td width="12%" style="width:12.5%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt"> <p class="ListParagraph1CxSpFirst">VIN</p> </td> <td style="width:27%; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt; border-left-style: none; border-left-color: inherit; border-left-width: medium; border-top-style: none; border-top-color: inherit; border-top-width: medium;"> <p class="ListParagraph1CxSpLast">Input voltage</p> </td> <td width="65%" style="width:65.26%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt"> <p class="MsoNormal">Input voltage with range 2.5V to 5.5V.</p> </td> </tr> <tr> <td width="12%" style="width:12.5%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt"> <p class="ListParagraph1">ENP</p> </td> <td style="width:27%; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt; border-left-style: none; border-left-color: inherit; border-left-width: medium; border-top-style: none; border-top-color: inherit; border-top-width: medium;"> <p class="MsoNormal">VOP Enable</p> </td> <td width="65%" style="width:65.26%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt"> <p class="MsoNormal">Enable control pin for VOP.</p> </td> </tr> <tr> <td width="12%" style="width:12.5%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt"> <p class="ListParagraph1">ENN</p> </td> <td style="width:27%; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt; border-left-style: none; border-left-color: inherit; border-left-width: medium; border-top-style: none; border-top-color: inherit; border-top-width: medium;"> <p class="MsoNormal">VON Enable</p> </td> <td width="65%" style="width:65.26%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt"> <p class="MsoNormal">Enable control pin for VON.</p> </td> </tr> <tr> <td width="12%" style="width:12.5%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt"> <p class="ListParagraph1CxSpFirst">GND</p> </td> <td style="width:27%; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt; border-left-style: none; border-left-color: inherit; border-left-width: medium; border-top-style: none; border-top-color: inherit; border-top-width: medium;"> <p class="ListParagraph1CxSpMiddle">Ground</p> </td> <td width="65%" style="width:65.26%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt"> <p class="ListParagraph1CxSpLast">Ground.</p> </td> </tr> <tr> <td width="12%" style="width:12.5%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt"> <p class="ListParagraph1CxSpFirst">I2C</p> </td> <td style="width:27%; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt; border-left-style: none; border-left-color: inherit; border-left-width: medium; border-top-style: none; border-top-color: inherit; border-top-width: medium;"> <p class="ListParagraph1CxSpMiddle">I<sup>2</sup>C Control</p> </td> <td width="65%" style="width:65.26%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt"> <p class="ListParagraph1CxSpLast">Pins to set function and output voltage.</p> </td> </tr> <tr> <td width="12%" style="width:12.5%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt"> <p class="ListParagraph1CxSpFirst">VOP</p> </td> <td style="width:27%; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt; border-left-style: none; border-left-color: inherit; border-left-width: medium; border-top-style: none; border-top-color: inherit; border-top-width: medium;"> <p class="ListParagraph1CxSpLast">Positive output voltage</p> </td> <td width="65%" style="width:65.26%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt"> <p class="MsoNormal">Default voltage: 5V±1%.</p> </td> </tr> <tr> <td width="12%" style="width:12.5%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt"> <p class="ListParagraph1">VON</p> </td> <td style="width:27%; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt; border-left-style: none; border-left-color: inherit; border-left-width: medium; border-top-style: none; border-top-color: inherit; border-top-width: medium;"> <p class="MsoNormal">Negative output voltage</p> </td> <td width="65%" style="width:65.26%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt"> <p class="MsoNormal">Default voltage: -5V±1%.</p> </td> </tr> <tr> <td width="12%" style="width:12.5%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt"> <p class="ListParagraph1">LXP</p> </td> <td style="width:27%; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt; border-left-style: none; border-left-color: inherit; border-left-width: medium; border-top-style: none; border-top-color: inherit; border-top-width: medium;"> <p class="MsoNormal">Switching Node of Boost Converter Test Pin</p> </td> <td width="65%" style="width:65.26%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt"> <p class="Default">Switching Node of Boost Converter.</p> </td> </tr> </table> <h3><br /> Power-up & Measurement Procedure</h3> <p class="right">Connect input voltage (2.5V < V<sub>IN</sub> < 5.5V).</p> <p class="MsoListParagraph">1. To use a jumper at “H” option to tie ENP or ENN test pin to input voltage VIN via CP3 or external voltage via CP2 for enabling the device. Inversely, to use a jumper at “L” option to tie ENP or ENN test pin to ground GND for disabling the device.</p> <p class="MsoListParagraph">2. To verify the output voltage VOP and VON (±5V) via I<sup>2</sup>C connector.</p> <p class="MsoListParagraph">3. To connect an external load up to 80mA and verify the output voltage and current.</p> <h3><br /> Output Voltage Setting</h3> <p class="a5">The output voltage can be programmed by a MCU through the dedicated I<sup>2</sup>C interface according to the VOP/VON voltage selection table. The device slave address is 0xE6.</p> <p class="Table"><br /> Table1. VOP Voltage Selection</p> <table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="680" style="margin-left:1.65pt;border-collapse:collapse"> <tr style="height:31.5pt"> <td width="50" nowrap style="width:37.35pt;border:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:31.5pt; font-weight: bold;"> <p class="MsoNormal" style="font-weight: bold">Name</p> </td> <td width="65" style="width:48.45pt;border:solid windowtext 1.0pt;border-left: none;padding:0cm 1.4pt 0cm 1.4pt;height:31.5pt"> <p class="MsoNormal"><b>Register Address</b></p> </td> <td width="49" nowrap style="width:36.65pt;border:solid windowtext 1.0pt; border-left:none;padding:0cm 1.4pt 0cm 1.4pt;height:31.5pt"> <p class="MsoNormal" style="font-weight: bold">DATA</p> </td> <td width="67" nowrap style="width:50.5pt;border:solid windowtext 1.0pt; border-left:none;padding:0cm 1.4pt 0cm 1.4pt;height:31.5pt"> <p class="MsoNormal" style="font-weight: bold">Bit7</p> </td> <td width="68" nowrap style="width:51.15pt;border:solid windowtext 1.0pt; border-left:none;padding:0cm 1.4pt 0cm 1.4pt;height:31.5pt"> <p class="MsoNormal" style="font-weight: bold">Bit6</p> </td> <td width="69" nowrap style="width:51.85pt;border:solid windowtext 1.0pt; border-left:none;padding:0cm 1.4pt 0cm 1.4pt;height:31.5pt"> <p class="MsoNormal" style="font-weight: bold">Bit5</p> </td> <td width="49" nowrap style="width:36.65pt;border:solid windowtext 1.0pt; border-left:none;padding:0cm 1.4pt 0cm 1.4pt;height:31.5pt"> <p class="MsoNormal" style="font-weight: bold">Bit4</p> </td> <td width="49" nowrap style="width:36.65pt;border:solid windowtext 1.0pt; border-left:none;padding:0cm 1.4pt 0cm 1.4pt;height:31.5pt"> <p class="MsoNormal" style="font-weight: bold">Bit3</p> </td> <td width="49" nowrap style="width:36.65pt;border:solid windowtext 1.0pt; border-left:none;padding:0cm 1.4pt 0cm 1.4pt;height:31.5pt"> <p class="MsoNormal" style="font-weight: bold">Bit2</p> </td> <td width="49" nowrap style="width:36.65pt;border:solid windowtext 1.0pt; border-left:none;padding:0cm 1.4pt 0cm 1.4pt;height:31.5pt"> <p class="MsoNormal" style="font-weight: bold">Bit1</p> </td> <td width="49" nowrap style="width:36.65pt;border:solid windowtext 1.0pt; border-left:none;padding:0cm 1.4pt 0cm 1.4pt;height:31.5pt"> <p class="MsoNormal" style="font-weight: bold">Bit0</p> </td> <td width="68" nowrap style="width:51.1pt;border:solid windowtext 1.0pt; border-left:none;padding:0cm 1.4pt 0cm 1.4pt;height:31.5pt"> <p class="MsoNormal" style="font-weight: bold">VOP (V)</p> </td> </tr> <tr style="height:15.75pt"> <td width="50" nowrap style="width:37.35pt;border:solid windowtext 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">VOP</p> </td> <td width="65" nowrap style="width:48.45pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">00h</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">00h</p> </td> <td width="67" nowrap style="width:50.5pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="68" nowrap style="width:51.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="69" nowrap style="width:51.85pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="68" nowrap style="width:51.1pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">4</p> </td> </tr> <tr style="height:15.75pt"> <td width="50" nowrap style="width:37.35pt;border:solid windowtext 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">VOP</p> </td> <td width="65" nowrap style="width:48.45pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">00h</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">01h</p> </td> <td width="67" nowrap style="width:50.5pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="68" nowrap style="width:51.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="69" nowrap style="width:51.85pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">1</p> </td> <td width="68" nowrap style="width:51.1pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">4.1</p> </td> </tr> <tr style="height:15.75pt"> <td width="50" nowrap style="width:37.35pt;border:solid windowtext 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">VOP</p> </td> <td width="65" nowrap style="width:48.45pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">00h</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">02h</p> </td> <td width="67" nowrap style="width:50.5pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="68" nowrap style="width:51.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="69" nowrap style="width:51.85pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">1</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="68" nowrap style="width:51.1pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">4.2</p> </td> </tr> <tr style="height:15.75pt"> <td width="50" nowrap style="width:37.35pt;border:solid windowtext 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">VOP</p> </td> <td width="65" nowrap style="width:48.45pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">00h</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">03h</p> </td> <td width="67" nowrap style="width:50.5pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="68" nowrap style="width:51.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="69" nowrap style="width:51.85pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">1</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">1</p> </td> <td width="68" nowrap style="width:51.1pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">4.3</p> </td> </tr> <tr style="height:15.75pt"> <td width="50" nowrap style="width:37.35pt;border:solid windowtext 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">VOP</p> </td> <td width="65" nowrap style="width:48.45pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">00h</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">04h</p> </td> <td width="67" nowrap style="width:50.5pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="68" nowrap style="width:51.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="69" nowrap style="width:51.85pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">1</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="68" nowrap style="width:51.1pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">4.4</p> </td> </tr> <tr style="height:15.75pt"> <td width="50" nowrap style="width:37.35pt;border:solid windowtext 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">VOP</p> </td> <td width="65" nowrap style="width:48.45pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">00h</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">05h</p> </td> <td width="67" nowrap style="width:50.5pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="68" nowrap style="width:51.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="69" nowrap style="width:51.85pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">1</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">1</p> </td> <td width="68" nowrap style="width:51.1pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">4.5</p> </td> </tr> <tr style="height:15.75pt"> <td width="50" nowrap style="width:37.35pt;border:solid windowtext 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">VOP</p> </td> <td width="65" nowrap style="width:48.45pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">00h</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">06h</p> </td> <td width="67" nowrap style="width:50.5pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="68" nowrap style="width:51.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="69" nowrap style="width:51.85pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">1</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">1</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="68" nowrap style="width:51.1pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">4.6</p> </td> </tr> <tr style="height:15.75pt"> <td width="50" nowrap style="width:37.35pt;border:solid windowtext 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">VOP</p> </td> <td width="65" nowrap style="width:48.45pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">00h</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">07h</p> </td> <td width="67" nowrap style="width:50.5pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="68" nowrap style="width:51.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="69" nowrap style="width:51.85pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">1</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">1</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">1</p> </td> <td width="68" nowrap style="width:51.1pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">4.7</p> </td> </tr> <tr style="height:15.75pt"> <td width="50" nowrap style="width:37.35pt;border:solid windowtext 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">VOP</p> </td> <td width="65" nowrap style="width:48.45pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">00h</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">08h</p> </td> <td width="67" nowrap style="width:50.5pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="68" nowrap style="width:51.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="69" nowrap style="width:51.85pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">1</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="68" nowrap style="width:51.1pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">4.8</p> </td> </tr> <tr style="height:15.75pt"> <td width="50" nowrap style="width:37.35pt;border:solid windowtext 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">VOP</p> </td> <td width="65" nowrap style="width:48.45pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">00h</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">09h</p> </td> <td width="67" nowrap style="width:50.5pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="68" nowrap style="width:51.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="69" nowrap style="width:51.85pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">1</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">1</p> </td> <td width="68" nowrap style="width:51.1pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">4.9</p> </td> </tr> <tr style="height:15.75pt"> <td width="50" nowrap style="width:37.35pt;border:solid windowtext 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">VOP</p> </td> <td width="65" nowrap style="width:48.45pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">00h</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0Ah</p> </td> <td width="67" nowrap style="width:50.5pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="68" nowrap style="width:51.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="69" nowrap style="width:51.85pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">1</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">1</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="68" nowrap style="width:51.1pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">5</p> </td> </tr> <tr style="height:15.75pt"> <td width="50" nowrap style="width:37.35pt;border:solid windowtext 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">VOP</p> </td> <td width="65" nowrap style="width:48.45pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">00h</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0Bh</p> </td> <td width="67" nowrap style="width:50.5pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="68" nowrap style="width:51.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="69" nowrap style="width:51.85pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">1</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">1</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">1</p> </td> <td width="68" nowrap style="width:51.1pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">5.1</p> </td> </tr> <tr style="height:15.75pt"> <td width="50" nowrap style="width:37.35pt;border:solid windowtext 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">VOP</p> </td> <td width="65" nowrap style="width:48.45pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">00h</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0Ch</p> </td> <td width="67" nowrap style="width:50.5pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="68" nowrap style="width:51.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="69" nowrap style="width:51.85pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">1</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">1</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="68" nowrap style="width:51.1pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">5.2</p> </td> </tr> <tr style="height:15.75pt"> <td width="50" nowrap style="width:37.35pt;border:solid windowtext 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">VOP</p> </td> <td width="65" nowrap style="width:48.45pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">00h</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0Dh</p> </td> <td width="67" nowrap style="width:50.5pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="68" nowrap style="width:51.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="69" nowrap style="width:51.85pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">1</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">1</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">1</p> </td> <td width="68" nowrap style="width:51.1pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">5.3</p> </td> </tr> <tr style="height:15.75pt"> <td width="50" nowrap style="width:37.35pt;border:solid windowtext 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">VOP</p> </td> <td width="65" nowrap style="width:48.45pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">00h</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0Eh</p> </td> <td width="67" nowrap style="width:50.5pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="68" nowrap style="width:51.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="69" nowrap style="width:51.85pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">1</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">1</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">1</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="68" nowrap style="width:51.1pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">5.4</p> </td> </tr> <tr style="height:15.75pt"> <td width="50" nowrap style="width:37.35pt;border:solid windowtext 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">VOP</p> </td> <td width="65" nowrap style="width:48.45pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">00h</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0Fh</p> </td> <td width="67" nowrap style="width:50.5pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="68" nowrap style="width:51.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="69" nowrap style="width:51.85pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">1</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">1</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">1</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">1</p> </td> <td width="68" nowrap style="width:51.1pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">5.5</p> </td> </tr> <tr style="height:15.75pt"> <td width="50" nowrap style="width:37.35pt;border:solid windowtext 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">VOP</p> </td> <td width="65" nowrap style="width:48.45pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">00h</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">10h</p> </td> <td width="67" nowrap style="width:50.5pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="68" nowrap style="width:51.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="69" nowrap style="width:51.85pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">1</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="68" nowrap style="width:51.1pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">5.6</p> </td> </tr> <tr style="height:15.75pt"> <td width="50" nowrap style="width:37.35pt;border:solid windowtext 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">VOP</p> </td> <td width="65" nowrap style="width:48.45pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">00h</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">11h</p> </td> <td width="67" nowrap style="width:50.5pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="68" nowrap style="width:51.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="69" nowrap style="width:51.85pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">1</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">1</p> </td> <td width="68" nowrap style="width:51.1pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">5.7</p> </td> </tr> <tr style="height:15.75pt"> <td width="50" nowrap style="width:37.35pt;border:solid windowtext 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">VOP</p> </td> <td width="65" nowrap style="width:48.45pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">00h</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">12h</p> </td> <td width="67" nowrap style="width:50.5pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="68" nowrap style="width:51.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="69" nowrap style="width:51.85pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">1</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">1</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="68" nowrap style="width:51.1pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">5.8</p> </td> </tr> <tr style="height:15.75pt"> <td width="50" nowrap style="width:37.35pt;border:solid windowtext 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">VOP</p> </td> <td width="65" nowrap style="width:48.45pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">00h</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">13h</p> </td> <td width="67" nowrap style="width:50.5pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="68" nowrap style="width:51.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="69" nowrap style="width:51.85pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">1</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">1</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">1</p> </td> <td width="68" nowrap style="width:51.1pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">5.9</p> </td> </tr> <tr style="height:15.75pt"> <td width="50" nowrap style="width:37.35pt;border:solid windowtext 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">VOP</p> </td> <td width="65" nowrap style="width:48.45pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">00h</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">14h</p> </td> <td width="67" nowrap style="width:50.5pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="68" nowrap style="width:51.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="69" nowrap style="width:51.85pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">1</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">1</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="49" nowrap style="width:36.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="68" nowrap style="width:51.1pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">6</p> </td> </tr> </table> <p class="Table"><br /> Table 2. VON Voltage Selection</p> <table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="680" style="border-collapse:collapse"> <thead> <tr style="height:31.5pt"> <td width="47" nowrap style="width:34.95pt;border:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:31.5pt; font-weight: bold;"> <p class="MsoNormal" style="font-weight: bold">Name</p> </td> <td width="66" style="width:49.15pt;border:solid windowtext 1.0pt;border-left: none;padding:0cm 1.4pt 0cm 1.4pt;height:31.5pt"> <p class="MsoNormal"><b>Register Address</b></p> </td> <td width="50" nowrap style="width:37.85pt;border:solid windowtext 1.0pt; border-left:none;padding:0cm 1.4pt 0cm 1.4pt;height:31.5pt"> <p class="MsoNormal" style="font-weight: bold">DATA</p> </td> <td width="71" nowrap style="width:53.05pt;border:solid windowtext 1.0pt; border-left:none;padding:0cm 1.4pt 0cm 1.4pt;height:31.5pt"> <p class="MsoNormal" style="font-weight: bold">Bit7</p> </td> <td width="71" nowrap style="width:53.05pt;border:solid windowtext 1.0pt; border-left:none;padding:0cm 1.4pt 0cm 1.4pt;height:31.5pt"> <p class="MsoNormal" style="font-weight: bold">Bit6</p> </td> <td width="71" nowrap style="width:53.5pt;border:solid windowtext 1.0pt; border-left:none;padding:0cm 1.4pt 0cm 1.4pt;height:31.5pt"> <p class="MsoNormal" style="font-weight: bold">Bit5</p> </td> <td width="48" nowrap style="width:36.2pt;border:solid windowtext 1.0pt; border-left:none;padding:0cm 1.4pt 0cm 1.4pt;height:31.5pt"> <p class="MsoNormal" style="font-weight: bold">Bit4</p> </td> <td width="48" nowrap style="width:36.2pt;border:solid windowtext 1.0pt; border-left:none;padding:0cm 1.4pt 0cm 1.4pt;height:31.5pt"> <p class="MsoNormal" style="font-weight: bold">Bit3</p> </td> <td width="48" nowrap style="width:36.25pt;border:solid windowtext 1.0pt; border-left:none;padding:0cm 1.4pt 0cm 1.4pt;height:31.5pt"> <p class="MsoNormal" style="font-weight: bold">Bit2</p> </td> <td width="48" nowrap style="width:36.2pt;border:solid windowtext 1.0pt; border-left:none;padding:0cm 1.4pt 0cm 1.4pt;height:31.5pt"> <p class="MsoNormal" style="font-weight: bold">Bit1</p> </td> <td width="48" nowrap style="width:36.25pt;border:solid windowtext 1.0pt; border-left:none;padding:0cm 1.4pt 0cm 1.4pt;height:31.5pt"> <p class="MsoNormal" style="font-weight: bold">Bit0</p> </td> <td width="64" nowrap style="width:47.65pt;border:solid windowtext 1.0pt; border-left:none;padding:0cm 1.4pt 0cm 1.4pt;height:31.5pt"> <p class="MsoNormal" style="font-weight: bold">VON (V)</p> </td> </tr> </thead> <tr style="height:15.75pt"> <td width="47" nowrap style="width:34.95pt;border:solid windowtext 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">VON</p> </td> <td width="66" nowrap style="width:49.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">01h</p> </td> <td width="50" nowrap style="width:37.85pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">00h</p> </td> <td width="71" nowrap style="width:53.05pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="71" nowrap style="width:53.05pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="71" nowrap style="width:53.5pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="48" nowrap style="width:36.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="48" nowrap style="width:36.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="48" nowrap style="width:36.25pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="48" nowrap style="width:36.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="48" nowrap style="width:36.25pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="64" nowrap style="width:47.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">-4</p> </td> </tr> <tr style="height:15.75pt"> <td width="47" nowrap style="width:34.95pt;border:solid windowtext 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">VON</p> </td> <td width="66" nowrap style="width:49.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">01h</p> </td> <td width="50" nowrap style="width:37.85pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">01h</p> </td> <td width="71" nowrap style="width:53.05pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="71" nowrap style="width:53.05pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="71" nowrap style="width:53.5pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="48" nowrap style="width:36.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="48" nowrap style="width:36.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="48" nowrap style="width:36.25pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="48" nowrap style="width:36.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="48" nowrap style="width:36.25pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">1</p> </td> <td width="64" nowrap style="width:47.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">-4.1</p> </td> </tr> <tr style="height:15.75pt"> <td width="47" nowrap style="width:34.95pt;border:solid windowtext 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">VON</p> </td> <td width="66" nowrap style="width:49.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">01h</p> </td> <td width="50" nowrap style="width:37.85pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">02h</p> </td> <td width="71" nowrap style="width:53.05pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="71" nowrap style="width:53.05pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="71" nowrap style="width:53.5pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="48" nowrap style="width:36.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="48" nowrap style="width:36.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="48" nowrap style="width:36.25pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="48" nowrap style="width:36.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">1</p> </td> <td width="48" nowrap style="width:36.25pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="64" nowrap style="width:47.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">-4.2</p> </td> </tr> <tr style="height:15.75pt"> <td width="47" nowrap style="width:34.95pt;border:solid windowtext 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">VON</p> </td> <td width="66" nowrap style="width:49.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">01h</p> </td> <td width="50" nowrap style="width:37.85pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">03h</p> </td> <td width="71" nowrap style="width:53.05pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="71" nowrap style="width:53.05pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="71" nowrap style="width:53.5pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="48" nowrap style="width:36.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="48" nowrap style="width:36.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="48" nowrap style="width:36.25pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="48" nowrap style="width:36.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">1</p> </td> <td width="48" nowrap style="width:36.25pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">1</p> </td> <td width="64" nowrap style="width:47.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">-4.3</p> </td> </tr> <tr style="height:15.75pt"> <td width="47" nowrap style="width:34.95pt;border:solid windowtext 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">VON</p> </td> <td width="66" nowrap style="width:49.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">01h</p> </td> <td width="50" nowrap style="width:37.85pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">04h</p> </td> <td width="71" nowrap style="width:53.05pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="71" nowrap style="width:53.05pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="71" nowrap style="width:53.5pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="48" nowrap style="width:36.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="48" nowrap style="width:36.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="48" nowrap style="width:36.25pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">1</p> </td> <td width="48" nowrap style="width:36.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="48" nowrap style="width:36.25pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="64" nowrap style="width:47.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">-4.4</p> </td> </tr> <tr style="height:15.75pt"> <td width="47" nowrap style="width:34.95pt;border:solid windowtext 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">VON</p> </td> <td width="66" nowrap style="width:49.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">01h</p> </td> <td width="50" nowrap style="width:37.85pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">05h</p> </td> <td width="71" nowrap style="width:53.05pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="71" nowrap style="width:53.05pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="71" nowrap style="width:53.5pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="48" nowrap style="width:36.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="48" nowrap style="width:36.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="48" nowrap style="width:36.25pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">1</p> </td> <td width="48" nowrap style="width:36.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="48" nowrap style="width:36.25pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">1</p> </td> <td width="64" nowrap style="width:47.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">-4.5</p> </td> </tr> <tr style="height:15.75pt"> <td width="47" nowrap style="width:34.95pt;border:solid windowtext 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">VON</p> </td> <td width="66" nowrap style="width:49.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">01h</p> </td> <td width="50" nowrap style="width:37.85pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">06h</p> </td> <td width="71" nowrap style="width:53.05pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="71" nowrap style="width:53.05pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="71" nowrap style="width:53.5pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="48" nowrap style="width:36.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="48" nowrap style="width:36.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="48" nowrap style="width:36.25pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">1</p> </td> <td width="48" nowrap style="width:36.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">1</p> </td> <td width="48" nowrap style="width:36.25pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="64" nowrap style="width:47.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">-4.6</p> </td> </tr> <tr style="height:15.75pt"> <td width="47" nowrap style="width:34.95pt;border:solid windowtext 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">VON</p> </td> <td width="66" nowrap style="width:49.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">01h</p> </td> <td width="50" nowrap style="width:37.85pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">07h</p> </td> <td width="71" nowrap style="width:53.05pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="71" nowrap style="width:53.05pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="71" nowrap style="width:53.5pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="48" nowrap style="width:36.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="48" nowrap style="width:36.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="48" nowrap style="width:36.25pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">1</p> </td> <td width="48" nowrap style="width:36.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">1</p> </td> <td width="48" nowrap style="width:36.25pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">1</p> </td> <td width="64" nowrap style="width:47.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">-4.7</p> </td> </tr> <tr style="height:15.75pt"> <td width="47" nowrap style="width:34.95pt;border:solid windowtext 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">VON</p> </td> <td width="66" nowrap style="width:49.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">01h</p> </td> <td width="50" nowrap style="width:37.85pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">08h</p> </td> <td width="71" nowrap style="width:53.05pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="71" nowrap style="width:53.05pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="71" nowrap style="width:53.5pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="48" nowrap style="width:36.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="48" nowrap style="width:36.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">1</p> </td> <td width="48" nowrap style="width:36.25pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="48" nowrap style="width:36.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="48" nowrap style="width:36.25pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="64" nowrap style="width:47.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">-4.8</p> </td> </tr> <tr style="height:15.75pt"> <td width="47" nowrap style="width:34.95pt;border:solid windowtext 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">VON</p> </td> <td width="66" nowrap style="width:49.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">01h</p> </td> <td width="50" nowrap style="width:37.85pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">09h</p> </td> <td width="71" nowrap style="width:53.05pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="71" nowrap style="width:53.05pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="71" nowrap style="width:53.5pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="48" nowrap style="width:36.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="48" nowrap style="width:36.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">1</p> </td> <td width="48" nowrap style="width:36.25pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="48" nowrap style="width:36.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="48" nowrap style="width:36.25pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">1</p> </td> <td width="64" nowrap style="width:47.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">-4.9</p> </td> </tr> <tr style="height:15.75pt"> <td width="47" nowrap style="width:34.95pt;border:solid windowtext 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">VON</p> </td> <td width="66" nowrap style="width:49.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">01h</p> </td> <td width="50" nowrap style="width:37.85pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0Ah</p> </td> <td width="71" nowrap style="width:53.05pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="71" nowrap style="width:53.05pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="71" nowrap style="width:53.5pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="48" nowrap style="width:36.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="48" nowrap style="width:36.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">1</p> </td> <td width="48" nowrap style="width:36.25pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="48" nowrap style="width:36.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">1</p> </td> <td width="48" nowrap style="width:36.25pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="64" nowrap style="width:47.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">-5</p> </td> </tr> <tr style="height:15.75pt"> <td width="47" nowrap style="width:34.95pt;border:solid windowtext 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">VON</p> </td> <td width="66" nowrap style="width:49.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">01h</p> </td> <td width="50" nowrap style="width:37.85pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0Bh</p> </td> <td width="71" nowrap style="width:53.05pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="71" nowrap style="width:53.05pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="71" nowrap style="width:53.5pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="48" nowrap style="width:36.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="48" nowrap style="width:36.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">1</p> </td> <td width="48" nowrap style="width:36.25pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="48" nowrap style="width:36.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">1</p> </td> <td width="48" nowrap style="width:36.25pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">1</p> </td> <td width="64" nowrap style="width:47.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">-5.1</p> </td> </tr> <tr style="height:15.75pt"> <td width="47" nowrap style="width:34.95pt;border:solid windowtext 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">VON</p> </td> <td width="66" nowrap style="width:49.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">01h</p> </td> <td width="50" nowrap style="width:37.85pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0Ch</p> </td> <td width="71" nowrap style="width:53.05pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="71" nowrap style="width:53.05pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="71" nowrap style="width:53.5pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="48" nowrap style="width:36.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="48" nowrap style="width:36.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">1</p> </td> <td width="48" nowrap style="width:36.25pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">1</p> </td> <td width="48" nowrap style="width:36.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="48" nowrap style="width:36.25pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="64" nowrap style="width:47.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">-5.2</p> </td> </tr> <tr style="height:15.75pt"> <td width="47" nowrap style="width:34.95pt;border:solid windowtext 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">VON</p> </td> <td width="66" nowrap style="width:49.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">01h</p> </td> <td width="50" nowrap style="width:37.85pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0Dh</p> </td> <td width="71" nowrap style="width:53.05pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="71" nowrap style="width:53.05pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="71" nowrap style="width:53.5pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="48" nowrap style="width:36.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="48" nowrap style="width:36.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">1</p> </td> <td width="48" nowrap style="width:36.25pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">1</p> </td> <td width="48" nowrap style="width:36.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="48" nowrap style="width:36.25pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">1</p> </td> <td width="64" nowrap style="width:47.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">-5.3</p> </td> </tr> <tr style="height:15.75pt"> <td width="47" nowrap style="width:34.95pt;border:solid windowtext 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">VON</p> </td> <td width="66" nowrap style="width:49.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">01h</p> </td> <td width="50" nowrap style="width:37.85pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0Eh</p> </td> <td width="71" nowrap style="width:53.05pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="71" nowrap style="width:53.05pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="71" nowrap style="width:53.5pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="48" nowrap style="width:36.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="48" nowrap style="width:36.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">1</p> </td> <td width="48" nowrap style="width:36.25pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">1</p> </td> <td width="48" nowrap style="width:36.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">1</p> </td> <td width="48" nowrap style="width:36.25pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="64" nowrap style="width:47.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">-5.4</p> </td> </tr> <tr style="height:15.75pt"> <td width="47" nowrap style="width:34.95pt;border:solid windowtext 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">VON</p> </td> <td width="66" nowrap style="width:49.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">01h</p> </td> <td width="50" nowrap style="width:37.85pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0Fh</p> </td> <td width="71" nowrap style="width:53.05pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="71" nowrap style="width:53.05pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="71" nowrap style="width:53.5pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="48" nowrap style="width:36.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="48" nowrap style="width:36.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">1</p> </td> <td width="48" nowrap style="width:36.25pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">1</p> </td> <td width="48" nowrap style="width:36.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">1</p> </td> <td width="48" nowrap style="width:36.25pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">1</p> </td> <td width="64" nowrap style="width:47.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">-5.5</p> </td> </tr> <tr style="height:15.75pt"> <td width="47" nowrap style="width:34.95pt;border:solid windowtext 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">VON</p> </td> <td width="66" nowrap style="width:49.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">01h</p> </td> <td width="50" nowrap style="width:37.85pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">10h</p> </td> <td width="71" nowrap style="width:53.05pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="71" nowrap style="width:53.05pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="71" nowrap style="width:53.5pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="48" nowrap style="width:36.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">1</p> </td> <td width="48" nowrap style="width:36.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="48" nowrap style="width:36.25pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="48" nowrap style="width:36.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="48" nowrap style="width:36.25pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="64" nowrap style="width:47.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">-5.6</p> </td> </tr> <tr style="height:15.75pt"> <td width="47" nowrap style="width:34.95pt;border:solid windowtext 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">VON</p> </td> <td width="66" nowrap style="width:49.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">01h</p> </td> <td width="50" nowrap style="width:37.85pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">11h</p> </td> <td width="71" nowrap style="width:53.05pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="71" nowrap style="width:53.05pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="71" nowrap style="width:53.5pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="48" nowrap style="width:36.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">1</p> </td> <td width="48" nowrap style="width:36.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="48" nowrap style="width:36.25pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="48" nowrap style="width:36.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="48" nowrap style="width:36.25pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">1</p> </td> <td width="64" nowrap style="width:47.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">-5.7</p> </td> </tr> <tr style="height:15.75pt"> <td width="47" nowrap style="width:34.95pt;border:solid windowtext 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">VON</p> </td> <td width="66" nowrap style="width:49.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">01h</p> </td> <td width="50" nowrap style="width:37.85pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">12h</p> </td> <td width="71" nowrap style="width:53.05pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="71" nowrap style="width:53.05pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="71" nowrap style="width:53.5pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="48" nowrap style="width:36.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">1</p> </td> <td width="48" nowrap style="width:36.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="48" nowrap style="width:36.25pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="48" nowrap style="width:36.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">1</p> </td> <td width="48" nowrap style="width:36.25pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="64" nowrap style="width:47.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">-5.8</p> </td> </tr> <tr style="height:15.75pt"> <td width="47" nowrap style="width:34.95pt;border:solid windowtext 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">VON</p> </td> <td width="66" nowrap style="width:49.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">01h</p> </td> <td width="50" nowrap style="width:37.85pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">13h</p> </td> <td width="71" nowrap style="width:53.05pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="71" nowrap style="width:53.05pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="71" nowrap style="width:53.5pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="48" nowrap style="width:36.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">1</p> </td> <td width="48" nowrap style="width:36.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="48" nowrap style="width:36.25pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="48" nowrap style="width:36.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">1</p> </td> <td width="48" nowrap style="width:36.25pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">1</p> </td> <td width="64" nowrap style="width:47.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">-5.9</p> </td> </tr> <tr style="height:15.75pt"> <td width="47" nowrap style="width:34.95pt;border:solid windowtext 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">VON</p> </td> <td width="66" nowrap style="width:49.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">01h</p> </td> <td width="50" nowrap style="width:37.85pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">14h</p> </td> <td width="71" nowrap style="width:53.05pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="71" nowrap style="width:53.05pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="71" nowrap style="width:53.5pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">Reserved</p> </td> <td width="48" nowrap style="width:36.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">1</p> </td> <td width="48" nowrap style="width:36.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="48" nowrap style="width:36.25pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">1</p> </td> <td width="48" nowrap style="width:36.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="48" nowrap style="width:36.25pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">0</p> </td> <td width="64" nowrap style="width:47.65pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:15.75pt"> <p class="MsoNormal">-6</p> </td> </tr> </table>
5. Schematic, Bill of Materials & Board Layout
<h3><br /> EVB Schematic Diagram </h3> <p class="a5"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt4801hwsc/html-images/image002_en.jpg"><img border="0" width="681" height="307" id="圖片 12" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt4801hwsc/html-images/image002_en.jpg" alt="Technical Document Image Preview" /></a></p> <h3><br /> Bill of Materials</h3> <table class="MsoTableLightListAccent2" border="1" cellspacing="0" cellpadding="0" width="780" style="border-collapse:collapse;border:none"> <tr style="height:17.0pt"> <td width="11%" style="width:11.8%;border:solid #009EB8 1.0pt;background: #009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">Reference</p> </td> <td width="5%" style="width:5.76%;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">Qty</p> </td> <td width="21%" style="width:21.4%;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">Part number</p> </td> <td width="21%" style="width:21.68%;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">Description</p> </td> <td width="26%" style="width:26.2%;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">Package</p> </td> <td width="13%" style="width:13.16%;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">Manufacturer</p> </td> </tr> <tr style="height:17.0pt"> <td width="11%" style="width:11.8%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">U1</p> </td> <td width="5%" style="width:5.76%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">1</p> </td> <td width="21%" style="width:21.4%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">RT4801HWSC</p> </td> <td width="21%" style="width:21.68%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">Dual Output LCD Bias IC</p> </td> <td width="26%" style="width:26.2%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">WL-CSP-15B 1.31x2.07 (BSC)</p> </td> <td width="13%" style="width:13.16%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">RICHTEK</p> </td> </tr> <tr style="height:17.0pt"> <td width="11%" style="width:11.8%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">C1, C6, C8</p> </td> <td width="5%" style="width:5.76%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">3</p> </td> <td width="21%" style="width:21.4%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">GRM188R61C475KAAJ</p> </td> <td width="21%" style="width:21.68%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">4.7µF/16V/0603</p> </td> <td width="26%" style="width:26.2%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">C-0603</p> </td> <td width="13%" style="width:13.16%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">Murata</p> </td> </tr> <tr style="height:17.0pt"> <td width="11%" style="width:11.8%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">C5, C9</p> </td> <td width="5%" style="width:5.76%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">2</p> </td> <td width="21%" style="width:21.4%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">GRM188R61C106KAAL</p> </td> <td width="21%" style="width:21.68%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">10µF/16V/0603</p> </td> <td width="26%" style="width:26.2%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">C-0603</p> </td> <td width="13%" style="width:13.16%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">Murata</p> </td> </tr> <tr style="height:17.0pt"> <td width="11%" style="width:11.8%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">L1</p> </td> <td width="5%" style="width:5.76%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">1</p> </td> <td width="21%" style="width:21.4%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">1269AS-H</p> </td> <td width="21%" style="width:21.68%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">2.2µH</p> </td> <td width="26%" style="width:26.2%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">2520</p> </td> <td width="13%" style="width:13.16%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">TOKO</p> </td> </tr> <tr style="height:17.0pt"> <td width="11%" style="width:11.8%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">R4, R5</p> </td> <td width="5%" style="width:5.76%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">2</p> </td> <td width="21%" style="width:21.4%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">RC0603JR-074K7L</p> </td> <td width="21%" style="width:21.68%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">4.7K/0603</p> </td> <td width="26%" style="width:26.2%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">R-0603</p> </td> <td width="13%" style="width:13.16%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">Yageo</p> </td> </tr> </table> <h3><br /> PCB Layout </h3> <p class="23CxSpFirst"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt4801hwsc/html-images/image003_en.jpg"><img border="0" width="453" height="324" id="圖片 5" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt4801hwsc/html-images/image003_en.jpg" alt="Technical Document Image Preview" /></a></p> <p class="23CxSpLast">Top View (1<sup>st</sup> layer)</p> <p class="MsoNormal"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt4801hwsc/html-images/image004_en.jpg"><img border="0" width="453" height="326" id="圖片 8" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt4801hwsc/html-images/image004_en.jpg" alt="Technical Document Image Preview" /></a></p> <p class="23">Bottom View (4<sup>th</sup> Layer)</p>
