The RT4822 is a boost regulator designed to provide a minimum output voltage from a single-cell Li-Ion battery or two alkaline battery series, even when the battery voltage is below system minimum. Quiescent current in shutdown mode is less than 1µA, which maximizes battery life.

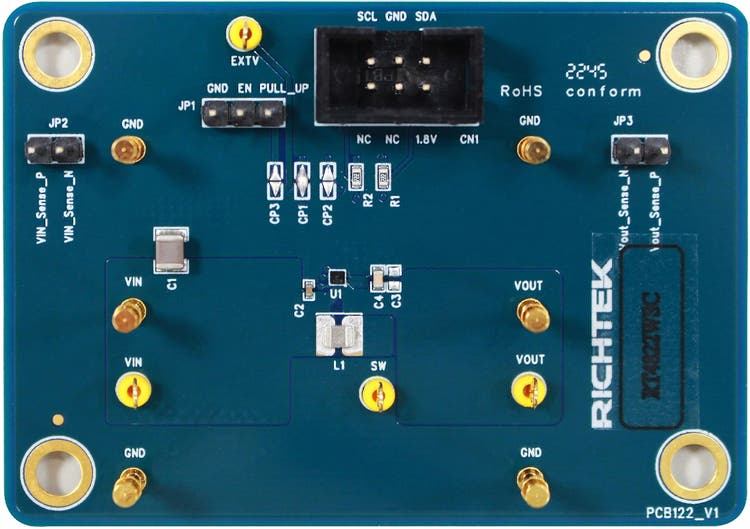

EVB_RT4822WSC

width

fixed-width

basicInfoImageSection

anchor

overviewSection

i18n(anchor-tab.overview-section.title)

overviewSectionAnchorTab

designResourceSection

i18n(anchor-tab.design-resource-section.title)

designResourceSectionAnchorTab

relatedProductSection

i18n(anchor-tab.related-product-section.title)

relatedProductSectionAnchorTab

orderingInformationSection

i18n(anchor-tab.ordering-information-section.title)

orderingInformationSectionAnchorTab

width

full-width

anchorSection

overview

1. General Description

The RT4822 is a boost regulator designed to provide a minimum output voltage from a single-cell Li-Ion battery or two alkaline battery series, even when the battery voltage is below system minimum. Quiescent current in shutdown mode is less than 1µA, which maximizes battery life.

2. Performance Specification Summary

The boost conveter has an input voltage range from 1.8V to 5.5V, and the output voltage range is from 3.15V to 5.5V. It can operate in force bypass mode and boost mode. And the power-on inrush current and current limit are implemented serval setting for difference application. The RT4822 is available in a WL-CSP-9B 1.3x1.2 (BSC) package. Table 1. RT4822WSC Evaluation Board Performance Specification Summary <div> <table class="MsoTableLightListAccent2" border="1" cellspacing="0" cellpadding="0" width="680" style="width:510.2pt;border-collapse:collapse;border:none"> <tr style="height:17.0pt"> <td style="border:solid #009EB8 1.0pt;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> Specification </td> <td style="border:solid #009EB8 1.0pt;border-left:none;background:#009EB8; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Test Conditions </td> <td style="border:solid #009EB8 1.0pt;border-left:none;background:#009EB8; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Min </td> <td style="border:solid #009EB8 1.0pt;border-left:none;background:#009EB8; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Typ </td> <td style="border:solid #009EB8 1.0pt;border-left:none;background:#009EB8; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Max </td> <td style="border:solid #009EB8 1.0pt;border-left:none;background:#009EB8; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Unit </td> </tr> <tr style="height:17.0pt"> <td style="border:solid #009EB8 1.0pt;border-top:none;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> Input Voltage Range </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 1.8 </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> -- </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 5.5 </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> V </td> </tr> <tr style="height:17.0pt"> <td style="border:solid #009EB8 1.0pt;border-top:none;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> Output Current </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> VIN > 3V, VOUT = 5V </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 0 </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> -- </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 1.5 </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> A </td> </tr> <tr style="height:17.0pt"> <td style="border:solid #009EB8 1.0pt;border-top:none;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> Default Output Voltage </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> -- </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 5 </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> -- </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> V </td> </tr> <tr style="height:17.0pt"> <td style="border:solid #009EB8 1.0pt;border-top:none;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> Operation Frequency </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 3 </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 3.5 </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 4 </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> MHz </td> </tr> <tr style="height:17.0pt"> <td style="border:solid #009EB8 1.0pt;border-top:none;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> Output Ripple Voltage </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> VIN = 3.6V, VOUT = 5V, IOUT = 0.5A </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> -- </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 40 </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> -- </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> mVp-p </td> </tr> <tr style="height:17.0pt"> <td style="border:solid #009EB8 1.0pt;border-top:none;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> Line Regulation </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> IOUT = 0.5A, VIN = 1.8V to 4.8V, VOUT = 5V </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> -- </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> ±1 </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> -- </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> % </td> </tr> <tr style="height:17.0pt"> <td style="border:solid #009EB8 1.0pt;border-top:none;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> Load Regulation </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> VIN = 3.6V, IOUT = 0.2A to 1A, VOUT = 5V </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> -- </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> ±1 </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> -- </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> % </td> </tr> <tr style="height:17.0pt"> <td style="border:solid #009EB8 1.0pt;border-top:none;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> Load Transient Response </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> VIN = 3.6V, VOUT = 5V ,IOUT = 50mA to 500mA </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> -- </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> ±3 </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> -- </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> % </td> </tr> <tr style="height:17.0pt"> <td style="border:solid #009EB8 1.0pt;border-top:none;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> Maximum Efficiency </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> VIN = 3.6V, VOUT = 5V, IOUT = 0.6A </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> -- </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 93 </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> -- </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> % </td> </tr> </table> </div>

3. Power-up Procedure

1. Connect input voltage (1.8V < VIN < 5.5V) to VIN pin. 2. Setting BOOST enable selection by CHIP_EN. (setting 0x05[0] by I2C) 3. Setting BOOST pre-charge current and BOOST_LIMIT for power on inrush current. (setting 0x00 by I2C) 4. To enable Boost converter by external EN pin or 0x05[5]. 5. To connect an external load to output and verify the output voltage versus applied current.

4. Output Voltage Setting

The output voltage set by internal register in the following I2C table. <table class="MsoTableGrid" border="1" cellspacing="0" cellpadding="0" width="680" style="width:510.2pt;border-collapse:collapse;border:none"> <tr style="height:17.0pt"> <td width="95" style="width:71.3pt;border:solid #009EB8 1.0pt;background:#009EB8; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Addr </td> <td width="106" style="width:79.15pt;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Reg Name </td> <td width="35" style="width:26.2pt;border:solid #009EB8 1.0pt;border-left:none; background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Bit </td> <td width="106" style="width:79.15pt;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Bit Name </td> <td width="65" style="width:48.75pt;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Default </td> <td width="47" style="width:35.4pt;border:solid #009EB8 1.0pt;border-left:none; background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Type </td> <td width="226" style="width:169.75pt;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Description </td> </tr> <tr style="height:17.0pt"> <td width="95" rowspan="2" style="width:71.3pt;border:solid #009EB8 1.0pt; border-top:none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 0x02 </td> <td width="106" rowspan="2" style="width:79.15pt;border-top:none;border-left: none;border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> BOOST_VOUT </td> <td width="35" style="width:26.2pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> 7 </td> <td width="106" style="width:79.15pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Reserved </td> <td width="65" style="width:48.75pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 0 </td> <td width="47" style="width:35.4pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> RW </td> <td width="226" style="width:169.75pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Reserved </td> </tr> <tr style="height:17.0pt"> <td width="35" style="width:26.2pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> 6:0 </td> <td width="106" style="width:79.15pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> BOOST_VOUT </td> <td width="65" style="width:48.75pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 1101011 </td> <td width="47" style="width:35.4pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> RW </td> <td width="226" style="width:169.75pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Boost output voltage can be set voltage from 3.15V to 5.5V with 25mV/step. 0000000 to 0100001: 3.15V … 1101011: 5V (default) … 1111111: 5.5V </td> </tr> </table>

5. Detailed Description of Hardware

<h3>Headers Description and Placement</h3> <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt4822wsc/html-images/image001_en.png"><img width="491" height="347" id="圖片 11" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt4822wsc/html-images/image001_en.png" alt="Technical Document Image Preview" /></a> Carefully inspect all the components used in the EVB according to the following Bill of Materials table, and then make sure all the components are undamaged and correctly installed. If there is any missing or damaged component, which may occur during transportation, please contact our distributors or e-mail us at <a href="mailto:evb_service@richtek.com" class="link">evb_service@richtek.com</a>.

6. Bill of Materials

<table class="MsoTableLightListAccent2" border="1" cellspacing="0" cellpadding="0" width="680" style="margin-left:5.4pt;border-collapse:collapse;border:none"> <tr style="height:17.0pt"> <td width="12%" style="width:12.42%;border:solid #009EB8 1.0pt;background: #009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Reference </td> <td width="7%" style="width:7.42%;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Count </td> <td width="25%" style="width:25.36%;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Part Number </td> <td width="19%" style="width:19.18%;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Description </td> <td width="20%" style="width:20.54%;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Package </td> <td width="15%" style="width:15.06%;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Manufacture </td> </tr> <tr style="height:17.0pt"> <td width="12%" style="width:12.42%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> CN1 </td> <td width="7%" style="width:7.42%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 1 </td> <td width="25%" style="width:25.36%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> CHEB254S006-CF1043 </td> <td width="19%" style="width:19.18%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> I2C </td> <td width="20%" style="width:20.54%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> </td> <td width="15%" style="width:15.06%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Cherng Weei </td> </tr> <tr style="height:17.0pt"> <td width="12%" style="width:12.42%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> C1 </td> <td width="7%" style="width:7.42%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 1 </td> <td width="25%" style="width:25.36%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> EMK325BJ476KM-T </td> <td width="19%" style="width:19.18%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 47µF/16V/X5R </td> <td width="20%" style="width:20.54%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 1210 </td> <td width="15%" style="width:15.06%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> TAIYO YUDEN </td> </tr> <tr style="height:17.0pt"> <td width="12%" style="width:12.42%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> C2 </td> <td width="7%" style="width:7.42%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 1 </td> <td width="25%" style="width:25.36%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> GRM155R60J475ME47 </td> <td width="19%" style="width:19.18%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 4.7µF/6.3V/X5R </td> <td width="20%" style="width:20.54%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 0402 </td> <td width="15%" style="width:15.06%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Murata </td> </tr> <tr style="height:17.0pt"> <td width="12%" style="width:12.42%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> C4 </td> <td width="7%" style="width:7.42%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 1 </td> <td width="25%" style="width:25.36%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 0603X106M6R3CT </td> <td width="19%" style="width:19.18%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 10µF/6.3V/X5R </td> <td width="20%" style="width:20.54%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 0603 </td> <td width="15%" style="width:15.06%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> WALSIN </td> </tr> <tr style="height:17.0pt"> <td width="12%" style="width:12.42%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> L1 </td> <td width="7%" style="width:7.42%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 1 </td> <td width="25%" style="width:25.36%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> DFE252012F-1R0M=P2 </td> <td width="19%" style="width:19.18%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 1.0µH/3.3A </td> <td width="20%" style="width:20.54%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 2.5x2.0x1.2mm </td> <td width="15%" style="width:15.06%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Murata </td> </tr> <tr style="height:17.0pt"> <td width="12%" style="width:12.42%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> R1, R2 </td> <td width="7%" style="width:7.42%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 2 </td> <td width="25%" style="width:25.36%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> WR06X2201FTL </td> <td width="19%" style="width:19.18%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 22k/0603 </td> <td width="20%" style="width:20.54%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 0603 </td> <td width="15%" style="width:15.06%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> WALSIN </td> </tr> <tr style="height:1.0cm"> <td width="12%" style="width:12.42%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> U1 </td> <td width="7%" style="width:7.42%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> 1 </td> <td width="25%" style="width:25.36%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> RT4822WSC </td> <td width="19%" style="width:19.18%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> Step-Up DC-DC Converter </td> <td width="20%" style="width:20.54%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> WL-CSP-9B 1.3x1.2 (BSC) </td> <td width="15%" style="width:15.06%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> RICHTEK </td> </tr> </table>

7. Typical Applications

<h3>EVB Schematic Diagram </h3> <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt4822wsc/html-images/image002_en.png"><img border="0" width="567" height="298" id="圖片 1" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt4822wsc/html-images/image002_en.png" alt="Technical Document Image Preview" /></a> 1. C1 is placed on input side, and the capacitors are design for long wire effect. If input source is close RT4822 then the capacitors are optional. 2. C4 is placed on output side, and the capacitor is optional for output voltage ripple improvement.

8. Measure Result

<table class="MsoNormalTable" border="1" cellspacing="0" cellpadding="0" style="margin-left:26.35pt;border-collapse:collapse;border:none"> <tr> <td width="306" style="width:229.8pt;border:solid #009EB8 1.0pt;background: #009EB8;padding:0cm 5.4pt 0cm 5.4pt"> Output Ripple Measurement </td> <td width="307" style="width:230.35pt;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt"> Load Transient Response </td> </tr> <tr style="height:168.2pt"> <td width="306" style="width:229.8pt;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:168.2pt"> <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt4822wsc/html-images/image003_en.jpg"><img border="0" width="292" height="232" id="圖片 5" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt4822wsc/html-images/image003_en.jpg" alt="Technical Document Image Preview" /></a> </td> <td width="307" style="width:230.35pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:168.2pt"> <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt4822wsc/html-images/image004_en.jpg"><img border="0" width="293" height="223" id="圖片 7" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt4822wsc/html-images/image004_en.jpg" alt="Technical Document Image Preview" /></a> </td> </tr> <tr> <td width="306" style="width:229.8pt;border:solid #009EB8 1.0pt;border-top: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt"> Power On from EN </td> <td width="307" style="width:230.35pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt"> DVS up </td> </tr> <tr style="height:172.95pt"> <td width="306" style="width:229.8pt;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:172.95pt"> <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt4822wsc/html-images/image005_en.jpg"><img border="0" width="292" height="222" id="圖片 8" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt4822wsc/html-images/image005_en.jpg" alt="Technical Document Image Preview" /></a> </td> <td width="307" style="width:230.35pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:172.95pt"> <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt4822wsc/html-images/image006_en.jpg"><img border="0" width="293" height="222" id="圖片 9" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt4822wsc/html-images/image006_en.jpg" alt="Technical Document Image Preview" /></a> </td> </tr> <tr> <td width="306" style="width:229.8pt;border:solid #009EB8 1.0pt;border-top: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt"> Short Circuit Response </td> <td width="307" style="width:230.35pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt"> Sine Waveform Stability </td> </tr> <tr> <td width="306" style="width:229.8pt;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 1.4pt 0cm 1.4pt"> <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt4822wsc/html-images/image007_en.jpg"><img border="0" width="303" height="243" id="圖片 10" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt4822wsc/html-images/image007_en.jpg" alt="Technical Document Image Preview" /></a> </td> <td width="307" style="width:230.35pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt"> <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt4822wsc/html-images/image008_en.jpg"><img border="0" width="303" height="225" id="圖片 12" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt4822wsc/html-images/image008_en.jpg" alt="Technical Document Image Preview" /></a> </td> </tr> </table>

9. Evaluation Board Layout

<a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt4822wsc/html-images/image009_en.jpg"><img border="0" width="492" height="353" id="圖片 13" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt4822wsc/html-images/image009_en.jpg" alt="一張含有文字, 電子用品, 螢幕擷取畫面的圖片自動產生的描述" /></a> Figure 1. Top View (1st layer) <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt4822wsc/html-images/image010_en.jpg"><img border="0" width="492" height="352" id="圖片 16" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt4822wsc/html-images/image010_en.jpg" alt="Technical Document Image Preview" /></a> Figure 2. PCB Layout—Inner Side (2nd Layer) <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt4822wsc/html-images/image011_en.jpg"><img border="0" width="492" height="354" id="圖片 17" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt4822wsc/html-images/image011_en.jpg" alt="Technical Document Image Preview" /></a> Figure 3. PCB Layout—Inner Side (3rd Layer) <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt4822wsc/html-images/image012_en.jpg"><img border="0" width="491" height="354" id="圖片 18" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt4822wsc/html-images/image012_en.jpg" alt="一張含有文字, 電子用品的圖片自動產生的描述" /></a> Figure 4. Bottom View (4th Layer)
