1. General Description

The RT5716 is a synchronous buck converter with 4MHz typical switching frequency. This document only specifies the RT5716 in WL-CSP package. It explains the function and operation of the RT5716 evaluation board (EVB) and provides information about the setting of the evaluation board.

2. Performance Specifications

Performance specifications of the RT5716 are listed in Table 1. (VIN = 3.6V, CIN = 4.7µF, COUT = 4.7µF x 2, L = 0.47µH, TJ = -40°C to 125°C, typical values are at TJ = 25°C, unless otherwise specified) Table 1. Performance Specifications of the RT5716 <table class="MsoTableLightListAccent2" border="1" cellspacing="0" cellpadding="0" width="671" style="width:502.9pt;border-collapse:collapse;border:none"> <tr style="height:17.0pt"> <td width="168" style="width:126.25pt;border:solid #009EB8 1.0pt;background: #009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Parameter </td> <td style="border:solid #009EB8 1.0pt;border-left:none;background:#009EB8; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Symbol </td> <td style="border:solid #009EB8 1.0pt;border-left:none;background:#009EB8; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Test Conditions </td> <td style="border:solid #009EB8 1.0pt;border-left:none;background:#009EB8; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Min </td> <td style="border:solid #009EB8 1.0pt;border-left:none;background:#009EB8; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Typ </td> <td style="border:solid #009EB8 1.0pt;border-left:none;background:#009EB8; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Max </td> <td style="border:solid #009EB8 1.0pt;border-left:none;background:#009EB8; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Unit </td> </tr> <tr style="height:17.0pt"> <td width="168" style="width:126.25pt;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Supply Input Voltage </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> VIN </td> <td valign="top" style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 1.8 </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> -- </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 5.5 </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> V </td> </tr> <tr style="height:39.7pt"> <td width="168" rowspan="2" style="width:126.25pt;border:solid #009EB8 1.0pt; border-top:none;padding:0cm 5.4pt 0cm 5.4pt;height:39.7pt"> Output Current </td> <td rowspan="2" style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:39.7pt"> IOUT </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:39.7pt"> VIN ≥ 2.3V For RT5716P-ABA, RT5716P-BBA, RT5716P-CBA, RT5716P-DBA </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:39.7pt"> -- </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:39.7pt"> -- </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:39.7pt"> 1 </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:39.7pt"> A </td> </tr> <tr style="height:39.7pt"> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:39.7pt"> VIN < 2.3V For RT5716P-ABA, RT5716P-BBA, RT5716P-CBA, RT5716P-DBA </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:39.7pt"> -- </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:39.7pt"> -- </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:39.7pt"> 0.7 </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:39.7pt"> A </td> </tr> <tr style="height:17.0pt"> <td width="168" style="width:126.25pt;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Switching Frequency </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> fSW </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> -- </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 4 </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> -- </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> MHz </td> </tr> <tr style="height:1.0cm"> <td width="168" style="width:126.25pt;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> Quiescent Current into VIN Pin (Non-Switching) </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> IQ_IN-NONSW </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> EN = VIN, VOUT = 1.2V, IOUT = 0A, RSEL/MODE = GND, TJ = -40°C to 85°C </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> -- </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> 2.3 </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> 3.7 </td> <td rowspan="2" style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> µA </td> </tr> <tr style="height:1.0cm"> <td width="168" style="width:126.25pt;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> Quiescent Current into VIN Pin (Switching) </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> IQ_IN-SW </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> EN = VIN, VOUT = 1.2V, IOUT = 0A, RSEL/MODE = GND </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> -- </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> 2.5 </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> -- </td> </tr> <tr style="height:1.0cm"> <td width="168" style="width:126.25pt;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> Shutdown Current </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> ISHDN </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> EN = GND, RSEL/MODE = GND, TJ = -40°C to 85°C </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> -- </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> 55 </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> 290 </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> nA </td> </tr> </table>

3. Power-Up Procedure

<h3>Equipment Required</h3> <ul> <li>RT5716 Evaluation Board </li> <li>DC power supply capable of at least 5.5V and 3A</li> <li>Electronic load capable of 1A</li> <li>Function Generator</li> <li>Oscilloscope</li> </ul>

4. Quick Start Procedures

The evaluation board is fully assembled and tested. Follow the steps listed below to verify its functionality. Do not turn on power supplies until all equipment is well-connected. Do not measure the output voltage ripple with a long ground lead on the oscilloscope probe. Instead, touch the probe tip and ground ring directly across the output capacitor. The setup procedures are listed below. 1) Connect JP21 so that the resistor is connected between the RSEL/ MODE pin and GND to set output voltage level. 2) Connect the power supply to VIN and GND pins and the electronic load to the VO and nearest GND pins before power on. 3) Turn on the input power supply and make sure that the input voltage does not exceed 5.5V. 4) Enable/disable the RT5716 by the EN pin. When the EN pin is higher than the threshold voltage of logic-high, the IC operates at normal mode; When the EN pin goes low, the RT5716 enters shutdown mode. In shutdown mode, the converter stops switching, internal control circuitry is turned off and discharge function is triggered. 5) When RT5716 starts up, the RSEL/MODE pin operates as an input used for mode selection. When connecting the RSEL/MODE pin to L, the RT5716 operates at Auto Mode, which is PFM mode; On the other hand, the RT5716 operates at FPWM mode when connecting the RSEL/MODE pin to H. 6) Check the output voltage by a voltmeter. 7) Adjust the load within the operating range and measure the output voltage regulation, ripple voltage, power efficiency and other performances.

5. Detailed Description of Hardware

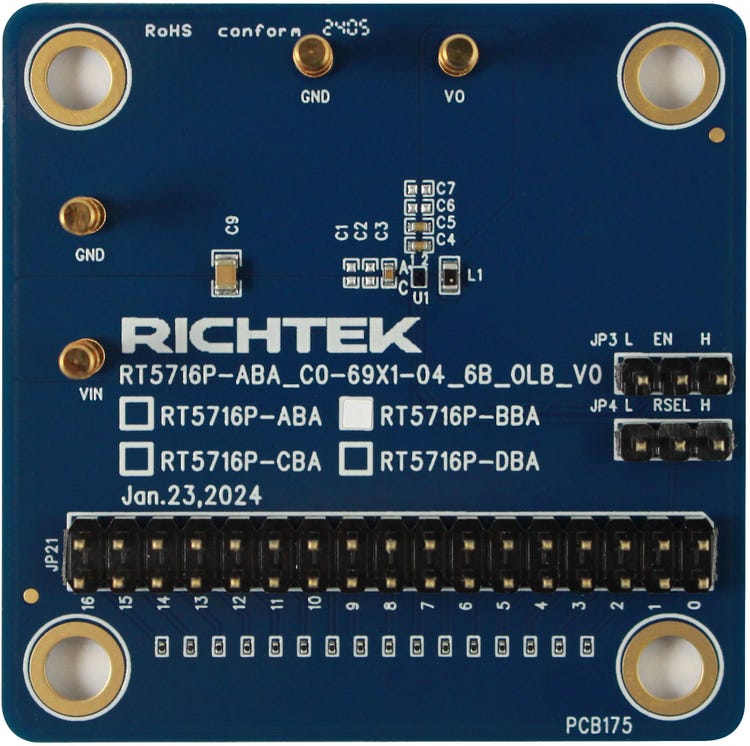

<h3>Headers Description and Placement</h3> <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt5716p-bba/html-images/image001_en.png"><img width="453" height="451" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt5716p-bba/html-images/image001_en.png" alt="一張含有文字, 電子產品, 螢幕擷取畫面, 圓形的圖片自動產生的描述" /></a> Carefully inspect all the components used on the EVB according to the following Bill of Materials table, and make sure all the components are undamaged and correctly installed. If there is any missing or damaged component, which may occur during transportation, please contact our distributors or e-mail us at <a href="mailto:evb_service@richtek.com" class="link">evb_service@richtek.com</a>.

6. Test Points

The test points and pin names are listed in the table below. <table class="MsoTableLightListAccent2" border="1" cellspacing="0" cellpadding="0" width="680" style="width:510.2pt;margin-left:1.85pt;border-collapse:collapse; border:none"> <thead> <tr style="height:1.0cm"> <td width="14%" style="width:14.64%;border:solid #009EB8 1.0pt;background: #009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> Test Point/ Pin Name </td> <td width="85%" style="width:85.36%;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> Function </td> </tr> </thead> <tr style="height:17.0pt"> <td width="14%" style="width:14.64%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> VIN </td> <td width="85%" style="width:85.36%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Input voltage. </td> </tr> <tr style="height:17.0pt"> <td width="14%" style="width:14.64%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> VO </td> <td width="85%" style="width:85.36%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Output voltage. </td> </tr> <tr style="height:17.0pt"> <td width="14%" style="width:14.64%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> GND </td> <td width="85%" style="width:85.36%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Ground. </td> </tr> <tr style="height:17.0pt"> <td width="14%" style="width:14.64%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> EN </td> <td width="85%" style="width:85.36%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Enable pin. </td> </tr> <tr style="height:17.0pt"> <td width="14%" style="width:14.64%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> RSEL/MODE </td> <td width="85%" style="width:85.36%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Output voltage level and operation mode selection pin. </td> </tr> </table>

7. Bill of Materials

<h3>RT5716P-ABA/RT5716P-BBA/RT5716P-CBA/RT5716P-DBA</h3> <div> <table class="TableNormal" border="1" cellspacing="0" cellpadding="0" width="682" style="border-collapse:collapse;border:none"> <thead> <tr style="height:17.0pt"> <td width="72" style="width:54.35pt;border:solid #009EB8 1.0pt;background: #009EB8;padding:0cm 0cm 0cm 0cm;height:17.0pt"> Reference </td> <td width="27" style="width:20.3pt;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 0cm 0cm 0cm;height:17.0pt"> Qty </td> <td width="160" style="width:120.0pt;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 0cm 0cm 0cm;height:17.0pt"> Part Number </td> <td width="103" style="width:77.4pt;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 0cm 0cm 0cm;height:17.0pt"> Value </td> <td width="122" style="width:91.65pt;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 0cm 0cm 0cm;height:17.0pt"> Description </td> <td width="111" style="width:83.3pt;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 0cm 0cm 0cm;height:17.0pt"> Package </td> <td width="86" style="width:64.45pt;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 0cm 0cm 0cm;height:17.0pt"> Manufacturer </td> </tr> </thead> <tr style="height:51.0pt"> <td width="72" style="width:54.35pt;border:solid #009EB8 1.0pt;border-top:none; padding:0cm 0cm 0cm 0cm;height:51.0pt"> U1 </td> <td width="27" style="width:20.3pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:51.0pt"> 1 </td> <td width="160" style="width:120.0pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:51.0pt"> RT5716P-ABA RT5716P-BBA RT5716P-CBA RT5716P-DBA </td> <td width="103" style="width:77.4pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:51.0pt"> RT5716 </td> <td width="122" style="width:91.65pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:51.0pt"> Step-Down Converter </td> <td width="111" style="width:83.3pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:51.0pt"> TWL-CSP-6B 0.69x1.04 (BSC) </td> <td width="86" style="width:64.45pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:51.0pt"> RICHTEK </td> </tr> <tr style="height:1.0cm"> <td width="72" style="width:54.35pt;border:solid #009EB8 1.0pt;border-top:none; padding:0cm 0cm 0cm 0cm;height:1.0cm"> C3, C4, C5 </td> <td width="27" style="width:20.3pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> 3 </td> <td width="160" style="width:120.0pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> GRM155R60J475ME47D </td> <td width="103" style="width:77.4pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> 4.7µF </td> <td width="122" style="width:91.65pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> Capacitor, Ceramic, 6.3V, X5R </td> <td width="111" style="width:83.3pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> 0402 </td> <td width="86" style="width:64.45pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> Murata </td> </tr> <tr style="height:1.0cm"> <td width="72" style="width:54.35pt;border:solid #009EB8 1.0pt;border-top:none; padding:0cm 0cm 0cm 0cm;height:1.0cm"> C9 </td> <td width="27" style="width:20.3pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> 1 </td> <td width="160" style="width:120.0pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> GRM21BC80J476ME01 </td> <td width="103" style="width:77.4pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> 47µF </td> <td width="122" style="width:91.65pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> Capacitor, Ceramic, 6.3V, X6S </td> <td width="111" style="width:83.3pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> 0805 </td> <td width="86" style="width:64.45pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> Murata </td> </tr> <tr style="height:17.0pt"> <td width="72" style="width:54.35pt;border:solid #009EB8 1.0pt;border-top:none; padding:0cm 0cm 0cm 0cm;height:17.0pt"> L1 </td> <td width="27" style="width:20.3pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:17.0pt"> 1 </td> <td width="160" style="width:120.0pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:17.0pt"> DFE18SANR47MG0L </td> <td width="103" style="width:77.4pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:17.0pt"> 0.47µH </td> <td width="122" style="width:91.65pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:17.0pt"> 0.47µH </td> <td width="111" style="width:83.3pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:17.0pt"> 0603 </td> <td width="86" style="width:64.45pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:17.0pt"> Murata </td> </tr> <tr style="height:1.0cm"> <td width="72" style="width:54.35pt;border:solid #009EB8 1.0pt;border-top:none; padding:0cm 0cm 0cm 0cm;height:1.0cm"> JP21 </td> <td width="27" style="width:20.3pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> 16 </td> <td width="160" style="width:120.0pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> RC0201FR-0710KL (Resistor E96 series) </td> <td width="103" style="width:77.4pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> Refer to Table 2 </td> <td width="122" style="width:91.65pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> 1%, TC ±200ppm </td> <td width="111" style="width:83.3pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> 0201 </td> <td width="86" style="width:64.45pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> YAGEO </td> </tr> </table> </div>

8. Output Voltage Selection

The RT5716 provides 1 fixed and 16 different levels of VOUT which can be set by an external resistor connected between the RSEL/MODE pin and GND. Table 2 indicates the setting to different output voltage level. Table 2. Output Voltage Setting <table class="MsoNormalTable" border="1" cellspacing="0" cellpadding="0" width="672" style="width:503.75pt;border-collapse:collapse;border:none"> <tr style="height:17.0pt"> <td width="47" style="width:34.95pt;border:solid windowtext 1.0pt;padding:0cm 1.4pt 0cm 1.4pt; height:17.0pt"> Type </td> <td width="106" style="width:79.7pt;border:solid windowtext 1.0pt;border-left: none;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> Output-1 (V) </td> <td width="106" style="width:79.75pt;border:solid windowtext 1.0pt;border-left: none;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> Output-2 (V) </td> <td width="106" style="width:79.75pt;border:solid windowtext 1.0pt;border-left: none;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> Output-3 (V) </td> <td width="106" style="width:79.75pt;border:solid windowtext 1.0pt;border-left: none;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> Output-4 (V) </td> <td width="200" colspan="3" style="width:149.85pt;border:solid windowtext 1.0pt; border-left:none;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> RSEL (kW) * </td> </tr> <tr style="height:17.0pt"> <td width="47" style="width:34.95pt;border:solid windowtext 1.0pt;border-top: none;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> Level </td> <td width="106" style="width:79.7pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 0.4V to 3.3V </td> <td width="106" style="width:79.75pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 0.4V to 0.775V </td> <td width="106" style="width:79.75pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 0.8V to 1.55V </td> <td width="106" style="width:79.75pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 1.8 V to 3.3V </td> <td width="67" style="width:49.95pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> Min </td> <td width="67" style="width:49.95pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> Nom </td> <td width="67" style="width:49.95pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> Max </td> </tr> <tr style="height:1.0cm"> <td width="47" style="width:34.95pt;border:solid windowtext 1.0pt;border-top: none;padding:0cm 1.4pt 0cm 1.4pt;height:1.0cm"> 0 </td> <td width="106" style="width:79.7pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:1.0cm"> 3.3 </td> <td width="106" style="width:79.75pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:1.0cm"> 0.7 </td> <td width="106" style="width:79.75pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:1.0cm"> 1.2 </td> <td width="106" style="width:79.75pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:1.0cm"> 1.8 </td> <td width="200" colspan="3" style="width:149.85pt;border-top:none;border-left: none;border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:1.0cm"> Connected to GND (No resistor needed) </td> </tr> <tr style="height:17.0pt"> <td width="47" style="width:34.95pt;border:solid windowtext 1.0pt;border-top: none;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 1 </td> <td width="106" style="width:79.7pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 0.4 </td> <td width="106" style="width:79.75pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 0.4 </td> <td width="106" style="width:79.75pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 0.8 </td> <td width="106" style="width:79.75pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 1.8 </td> <td width="67" style="width:49.95pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 9.9 </td> <td width="67" style="width:49.95pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 10 </td> <td width="67" style="width:49.95pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 10.1 </td> </tr> <tr style="height:17.0pt"> <td width="47" style="width:34.95pt;border:solid windowtext 1.0pt;border-top: none;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 2 </td> <td width="106" style="width:79.7pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 0.58 </td> <td width="106" style="width:79.75pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 0.425 </td> <td width="106" style="width:79.75pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 0.85 </td> <td width="106" style="width:79.75pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 1.9 </td> <td width="67" style="width:49.95pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 12 </td> <td width="67" style="width:49.95pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 12.1 </td> <td width="67" style="width:49.95pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 12.2 </td> </tr> <tr style="height:17.0pt"> <td width="47" style="width:34.95pt;border:solid windowtext 1.0pt;border-top: none;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 3 </td> <td width="106" style="width:79.7pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 0.6 </td> <td width="106" style="width:79.75pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 0.45 </td> <td width="106" style="width:79.75pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 0.9 </td> <td width="106" style="width:79.75pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 2 </td> <td width="67" style="width:49.95pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 15.2 </td> <td width="67" style="width:49.95pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 15.4 </td> <td width="67" style="width:49.95pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 15.6 </td> </tr> <tr style="height:17.0pt"> <td width="47" style="width:34.95pt;border:solid windowtext 1.0pt;border-top: none;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 4 </td> <td width="106" style="width:79.7pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 0.7 </td> <td width="106" style="width:79.75pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 0.475 </td> <td width="106" style="width:79.75pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 0.95 </td> <td width="106" style="width:79.75pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 2.1 </td> <td width="67" style="width:49.95pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 18.5 </td> <td width="67" style="width:49.95pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 18.7 </td> <td width="67" style="width:49.95pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 18.9 </td> </tr> <tr style="height:17.0pt"> <td width="47" style="width:34.95pt;border:solid windowtext 1.0pt;border-top: none;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 5 </td> <td width="106" style="width:79.7pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 0.75 </td> <td width="106" style="width:79.75pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 0.5 </td> <td width="106" style="width:79.75pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 1 </td> <td width="106" style="width:79.75pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 2.2 </td> <td width="67" style="width:49.95pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 23.5 </td> <td width="67" style="width:49.95pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 23.7 </td> <td width="67" style="width:49.95pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 23.9 </td> </tr> <tr style="height:17.0pt"> <td width="47" style="width:34.95pt;border:solid windowtext 1.0pt;border-top: none;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 6 </td> <td width="106" style="width:79.7pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 0.8 </td> <td width="106" style="width:79.75pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 0.525 </td> <td width="106" style="width:79.75pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 1.05 </td> <td width="106" style="width:79.75pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 2.3 </td> <td width="67" style="width:49.95pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 28.4 </td> <td width="67" style="width:49.95pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 28.7 </td> <td width="67" style="width:49.95pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 29 </td> </tr> <tr style="height:17.0pt"> <td width="47" style="width:34.95pt;border:solid windowtext 1.0pt;border-top: none;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 7 </td> <td width="106" style="width:79.7pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 1.1 </td> <td width="106" style="width:79.75pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 0.55 </td> <td width="106" style="width:79.75pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 1.1 </td> <td width="106" style="width:79.75pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 2.4 </td> <td width="67" style="width:49.95pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 36.1 </td> <td width="67" style="width:49.95pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 36.5 </td> <td width="67" style="width:49.95pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 36.9 </td> </tr> <tr style="height:17.0pt"> <td width="47" style="width:34.95pt;border:solid windowtext 1.0pt;border-top: none;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 8 </td> <td width="106" style="width:79.7pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 1.2 </td> <td width="106" style="width:79.75pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 0.575 </td> <td width="106" style="width:79.75pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 1.15 </td> <td width="106" style="width:79.75pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 2.5 </td> <td width="67" style="width:49.95pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 43.8 </td> <td width="67" style="width:49.95pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 44.2 </td> <td width="67" style="width:49.95pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 44.6 </td> </tr> <tr style="height:17.0pt"> <td width="47" style="width:34.95pt;border:solid windowtext 1.0pt;border-top: none;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 9 </td> <td width="106" style="width:79.7pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 1.3 </td> <td width="106" style="width:79.75pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 0.6 </td> <td width="106" style="width:79.75pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 1.2 </td> <td width="106" style="width:79.75pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 2.6 </td> <td width="67" style="width:49.95pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 55.6 </td> <td width="67" style="width:49.95pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 56.2 </td> <td width="67" style="width:49.95pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 56.8 </td> </tr> <tr style="height:17.0pt"> <td width="47" style="width:34.95pt;border:solid windowtext 1.0pt;border-top: none;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 10 </td> <td width="106" style="width:79.7pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 1.5 </td> <td width="106" style="width:79.75pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 0.625 </td> <td width="106" style="width:79.75pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 1.25 </td> <td width="106" style="width:79.75pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 2.7 </td> <td width="67" style="width:49.95pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 67.4 </td> <td width="67" style="width:49.95pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 68.1 </td> <td width="67" style="width:49.95pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 68.8 </td> </tr> <tr style="height:17.0pt"> <td width="47" style="width:34.95pt;border:solid windowtext 1.0pt;border-top: none;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 11 </td> <td width="106" style="width:79.7pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 1.6 </td> <td width="106" style="width:79.75pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 0.65 </td> <td width="106" style="width:79.75pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 1.3 </td> <td width="106" style="width:79.75pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 2.8 </td> <td width="67" style="width:49.95pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 85.7 </td> <td width="67" style="width:49.95pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 86.6 </td> <td width="67" style="width:49.95pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 87.5 </td> </tr> <tr style="height:17.0pt"> <td width="47" style="width:34.95pt;border:solid windowtext 1.0pt;border-top: none;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 12 </td> <td width="106" style="width:79.7pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 1.8 </td> <td width="106" style="width:79.75pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 0.675 </td> <td width="106" style="width:79.75pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 1.35 </td> <td width="106" style="width:79.75pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 2.9 </td> <td width="67" style="width:49.95pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 104 </td> <td width="67" style="width:49.95pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 105 </td> <td width="67" style="width:49.95pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 106.1 </td> </tr> <tr style="height:17.0pt"> <td width="47" style="width:34.95pt;border:solid windowtext 1.0pt;border-top: none;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 13 </td> <td width="106" style="width:79.7pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 1.9 </td> <td width="106" style="width:79.75pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 0.7 </td> <td width="106" style="width:79.75pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 1.4 </td> <td width="106" style="width:79.75pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 3 </td> <td width="67" style="width:49.95pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 131.7 </td> <td width="67" style="width:49.95pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 133 </td> <td width="67" style="width:49.95pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 134.3 </td> </tr> <tr style="height:17.0pt"> <td width="47" style="width:34.95pt;border:solid windowtext 1.0pt;border-top: none;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 14 </td> <td width="106" style="width:79.7pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 2.5 </td> <td width="106" style="width:79.75pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 0.725 </td> <td width="106" style="width:79.75pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 1.45 </td> <td width="106" style="width:79.75pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 3.1 </td> <td width="67" style="width:49.95pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 160.4 </td> <td width="67" style="width:49.95pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 162 </td> <td width="67" style="width:49.95pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 163.6 </td> </tr> <tr style="height:17.0pt"> <td width="47" style="width:34.95pt;border:solid windowtext 1.0pt;border-top: none;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 15 </td> <td width="106" style="width:79.7pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 3 </td> <td width="106" style="width:79.75pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 0.75 </td> <td width="106" style="width:79.75pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 1.5 </td> <td width="106" style="width:79.75pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 3.2 </td> <td width="67" style="width:49.95pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 203 </td> <td width="67" style="width:49.95pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 205 </td> <td width="67" style="width:49.95pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 207.1 </td> </tr> <tr style="height:17.0pt"> <td width="47" style="width:34.95pt;border:solid windowtext 1.0pt;border-top: none;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 16 </td> <td width="106" style="width:79.7pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 3.3 </td> <td width="106" style="width:79.75pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 0.775 </td> <td width="106" style="width:79.75pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 1.55 </td> <td width="106" style="width:79.75pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 3.3 </td> <td width="67" style="width:49.95pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> ³249 </td> <td width="67" style="width:49.95pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> ³249 </td> <td width="67" style="width:49.95pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> ³249 </td> </tr> </table> *: E96 resistor series, 1% accuracy, temperature coefficient better or equal than ±200 ppm/°C.

9. Typical Applications

<h3>EVB Schematic Diagram</h3> <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt5716p-bba/html-images/image002_en.png"><img border="0" width="685" height="367" id="Picture 4" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt5716p-bba/html-images/image002_en.png" alt="Technical Document Image Preview" /></a> 1. The capacitance of the input and output will influence the input and output voltage ripple, respectively. 2. MLCC capacitance degrades at different DC bias voltage. The smaller package size of MLCC capacitors, the more capacitance degradation there would be under the same test condition.

10. Measure Result

The following curves and waveforms are the measure results of the RT5716P-ABA. <table class="MsoNormalTable" border="1" cellspacing="0" cellpadding="0" style="margin-left:26.35pt;border-collapse:collapse;border:none"> <tr> <td width="306" style="width:229.8pt;border:solid #009EB8 1.0pt;background: #009EB8;padding:0cm 5.4pt 0cm 5.4pt"> Quiescent Current vs. Input Voltage </td> <td width="307" style="width:230.35pt;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt"> Shutdown Current vs. Input Voltage </td> </tr> <tr style="height:168.2pt"> <td width="306" style="width:229.8pt;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:168.2pt"> <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt5716p-bba/html-images/image003_en.jpg"><img border="0" width="292" height="226" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt5716p-bba/html-images/image003_en.jpg" alt="Technical Document Image Preview" /></a> </td> <td width="307" style="width:230.35pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:168.2pt"> <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt5716p-bba/html-images/image004_en.jpg"><img border="0" width="293" height="227" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt5716p-bba/html-images/image004_en.jpg" alt="Technical Document Image Preview" /></a> </td> </tr> <tr> <td width="306" style="width:229.8pt;border:solid #009EB8 1.0pt;border-top: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt"> Efficiency vs. Output Current </td> <td width="307" style="width:230.35pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt"> Output Voltage vs. Output Current </td> </tr> <tr style="height:172.95pt"> <td width="306" style="width:229.8pt;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:172.95pt"> <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt5716p-bba/html-images/image005_en.jpg"><img border="0" width="292" height="225" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt5716p-bba/html-images/image005_en.jpg" alt="Technical Document Image Preview" /></a> </td> <td width="307" style="width:230.35pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:172.95pt"> <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt5716p-bba/html-images/image006_en.jpg"><img border="0" width="293" height="219" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt5716p-bba/html-images/image006_en.jpg" alt="Technical Document Image Preview" /></a> </td> </tr> <tr> <td width="306" style="width:229.8pt;border:solid #009EB8 1.0pt;border-top: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt"> Output Voltage vs. Output Current </td> <td width="307" style="width:230.35pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt"> Switching Frequency vs. Output Current </td> </tr> <tr> <td width="306" style="width:229.8pt;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 1.4pt 0cm 1.4pt"> <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt5716p-bba/html-images/image007_en.jpg"><img border="0" width="302" height="226" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt5716p-bba/html-images/image007_en.jpg" alt="Technical Document Image Preview" /></a> </td> <td width="307" style="width:230.35pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt"> <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt5716p-bba/html-images/image008_en.jpg"><img border="0" width="303" height="227" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt5716p-bba/html-images/image008_en.jpg" alt="Technical Document Image Preview" /></a> </td> </tr> </table> <table class="MsoNormalTable" border="1" cellspacing="0" cellpadding="0" style="margin-left:26.35pt;border-collapse:collapse;border:none"> <tr> <td width="306" style="width:229.8pt;border:solid #009EB8 1.0pt;background: #009EB8;padding:0cm 5.4pt 0cm 5.4pt"> Power Save Mode Operation </td> <td width="307" style="width:230.35pt;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt"> Pulse Width Modulation Operation </td> </tr> <tr style="height:184.2pt"> <td width="306" style="width:229.8pt;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 1.4pt 0cm 1.4pt;height:184.2pt"> <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt5716p-bba/html-images/image009_en.jpg"><img border="0" width="302" height="210" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt5716p-bba/html-images/image009_en.jpg" alt="Technical Document Image Preview" /></a> </td> <td width="307" style="width:230.35pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:184.2pt"> <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt5716p-bba/html-images/image010_en.jpg"><img border="0" width="303" height="208" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt5716p-bba/html-images/image010_en.jpg" alt="Technical Document Image Preview" /></a> </td> </tr> <tr> <td width="306" style="width:229.8pt;border:solid #009EB8 1.0pt;border-top: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt"> Power On with Light Load </td> <td width="307" style="width:230.35pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt"> AC Load Sweep at Power Save Mode </td> </tr> <tr> <td width="306" style="width:229.8pt;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt"> <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt5716p-bba/html-images/image011_en.jpg"><img border="0" width="292" height="203" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt5716p-bba/html-images/image011_en.jpg" alt="Technical Document Image Preview" /></a> </td> <td width="307" style="width:230.35pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt"> <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt5716p-bba/html-images/image012_en.jpg"><img border="0" width="293" height="205" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt5716p-bba/html-images/image012_en.jpg" alt="Technical Document Image Preview" /></a> </td> </tr> <tr> <td width="306" style="width:229.8pt;border:solid #009EB8 1.0pt;border-top: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt"> Load Transient Response </td> <td width="307" style="width:230.35pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt"> Load Transient Response </td> </tr> <tr> <td width="306" style="width:229.8pt;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt"> <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt5716p-bba/html-images/image013_en.jpg"><img border="0" width="292" height="204" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt5716p-bba/html-images/image013_en.jpg" alt="Technical Document Image Preview" /></a> </td> <td width="307" style="width:230.35pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt"> <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt5716p-bba/html-images/image014_en.jpg"><img border="0" width="293" height="203" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt5716p-bba/html-images/image014_en.jpg" alt="Technical Document Image Preview" /></a> </td> </tr> </table> Note: Do not measure the output voltage ripple with a long ground lead on the oscilloscope probe. Instead, touch the probe tip and ground ring directly across the output capacitor.

11. Evaluation Board Layout

Figure 1 to Figure 4 are the RT5716 evaluation board layout for TWL-CSP package. This board size is 84.6mm x 55.7mm and is constructed on four-layer PCB. <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt5716p-bba/html-images/image015_en.jpg"><img border="0" width="378" height="379" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt5716p-bba/html-images/image015_en.jpg" alt="一張含有文字, 螢幕擷取畫面, 圓形, 數字的圖片自動產生的描述" /></a> Figure 1. Top View (1st layer) <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt5716p-bba/html-images/image016_en.jpg"><img border="0" width="378" height="378" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt5716p-bba/html-images/image016_en.jpg" alt="一張含有螢幕擷取畫面, 文字, 圓形的圖片自動產生的描述" /></a> Figure 2. PCB Layout—Inner Side (2nd Layer) <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt5716p-bba/html-images/image017_en.jpg"><img border="0" width="378" height="378" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt5716p-bba/html-images/image017_en.jpg" alt="一張含有螢幕擷取畫面, 文字, 圓形的圖片自動產生的描述" /></a> Figure 3. PCB Layout—Inner Side (3rd Layer) <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt5716p-bba/html-images/image018_en.jpg"><img border="0" width="378" height="378" id="圖片 1" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt5716p-bba/html-images/image018_en.jpg" alt="一張含有螢幕擷取畫面, 文字, 圓形, 圖表的圖片自動產生的描述" /></a> Figure 4. Bottom View (4th Layer)
