overview

1. General Description

<p class="bady">The RT5717 is a high efficiency synchronous buck converter with typical 60nA ultra-low quiescent current. It provides high efficiency at light loads down to 1µA. Its input voltage range is from 1.8V to 5.5V. The RT5717 provides 16 selectable output voltage levels by connecting a resistor between the RSEL pin and GND while delivering the output current up to 0.75A/1.2A/1.5A. This document explains the function and use of the RT5717P series evaluation board (EVB) and provides information to relate the setting of the evaluation board.</p>

2. Performance Specification Summary

<p class="bady"><u>Table 1</u> shows the summary of the RT5717P series Evaluation Board performance specification. The ambient temperature is 25°C.</p> <p class="MsoCaption">Table 1. RT5717P Series Evaluation Board Performance Specification Summary</p> <table class="MsoTableLightListAccent2" border="1" cellspacing="0" cellpadding="0" width="680" style="width:510.2pt;border-collapse:collapse;border:none"> <tr style="height:17.0pt"> <td width="264" style="width:197.95pt;border-top:solid #009EB8 1.0pt; border-left:solid #009EB8 1.0pt;border-bottom:none;border-right:none; background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpFirst">Specification</p> </td> <td width="253" style="width:189.5pt;border:solid #009EB8 1.0pt;border-bottom: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpMiddle">Test Conditions</p> </td> <td style="border:none;border-top:solid #009EB8 1.0pt;background:#009EB8; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpMiddle">Min</p> </td> <td style="border:solid #009EB8 1.0pt;border-bottom:none;background:#009EB8; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpMiddle">Typ</p> </td> <td style="border:none;border-top:solid #009EB8 1.0pt;background:#009EB8; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpMiddle">Max</p> </td> <td style="border:solid #009EB8 1.0pt;border-bottom:none;background:#009EB8; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpLast">Unit</p> </td> </tr> <tr style="height:17.0pt"> <td width="264" style="width:197.95pt;border:solid #009EB8 1.0pt;border-right: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpFirst">Input Voltage</p> </td> <td width="253" style="width:189.5pt;border:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> </td> <td style="border-top:solid #009EB8 1.0pt;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:none;padding:0cm 5.4pt 0cm 5.4pt;height: 17.0pt"> <p class="ListParagraph1CxSpMiddle">1.8</p> </td> <td style="border:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height: 17.0pt"> <p class="ListParagraph1CxSpMiddle">--</p> </td> <td style="border-top:solid #009EB8 1.0pt;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:none;padding:0cm 5.4pt 0cm 5.4pt;height: 17.0pt"> <p class="ListParagraph1CxSpMiddle">5.5</p> </td> <td style="border:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height: 17.0pt"> <p class="ListParagraph1CxSpLast">V</p> </td> </tr> <tr style="height:17.0pt"> <td width="264" style="width:197.95pt;border:none;border-left:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpFirst">Output Voltage</p> </td> <td width="253" style="width:189.5pt;border-top:none;border-left:solid #009EB8 1.0pt; border-bottom:none;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> </td> <td style="border:none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpMiddle">0.5</p> </td> <td style="border-top:none;border-left:solid #009EB8 1.0pt;border-bottom: none;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height: 17.0pt"> </td> <td style="border:none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpMiddle">4</p> </td> <td style="border-top:none;border-left:solid #009EB8 1.0pt;border-bottom: none;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height: 17.0pt"> <p class="ListParagraph1CxSpLast">V</p> </td> </tr> <tr style="height:17.0pt"> <td width="264" style="width:197.95pt;border:solid #009EB8 1.0pt;border-right: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpFirst">Output Current</p> </td> <td width="253" style="width:189.5pt;border:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> <p class="ListParagraph1CxSpMiddle">OCP Select 3</p> </td> <td style="border-top:solid #009EB8 1.0pt;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:none;padding:0cm 5.4pt 0cm 5.4pt;height: 17.0pt"> <p class="ListParagraph1CxSpMiddle">--</p> </td> <td style="border:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height: 17.0pt"> <p class="ListParagraph1CxSpMiddle">--</p> </td> <td style="border-top:solid #009EB8 1.0pt;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:none;padding:0cm 5.4pt 0cm 5.4pt;height: 17.0pt"> <p class="ListParagraph1CxSpMiddle">1.5</p> </td> <td style="border:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height: 17.0pt"> <p class="ListParagraph1CxSpLast">A</p> </td> </tr> <tr style="height:17.0pt"> <td width="264" style="width:197.95pt;border:none;border-left:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpFirst">Operation Frequency</p> </td> <td width="253" style="width:189.5pt;border-top:none;border-left:solid #009EB8 1.0pt; border-bottom:none;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> </td> <td style="border:none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpMiddle">--</p> </td> <td style="border-top:none;border-left:solid #009EB8 1.0pt;border-bottom: none;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height: 17.0pt"> <p class="ListParagraph1CxSpMiddle">1.5</p> </td> <td style="border:none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpMiddle">--</p> </td> <td style="border-top:none;border-left:solid #009EB8 1.0pt;border-bottom: none;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height: 17.0pt"> <p class="ListParagraph1CxSpLast">MHz</p> </td> </tr> <tr style="height:17.0pt"> <td width="264" style="width:197.95pt;border:solid #009EB8 1.0pt;border-right: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpFirst">Quiescent Current into VIN (Switching) </p> </td> <td width="253" style="width:189.5pt;border:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> <p class="ListParagraph1CxSpMiddle">VOUT = 1.8V, EN = VIN = 3.6V, </p> <p class="ListParagraph1CxSpMiddle">RSEL = GND</p> </td> <td style="border-top:solid #009EB8 1.0pt;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:none;padding:0cm 5.4pt 0cm 5.4pt;height: 17.0pt"> <p class="ListParagraph1CxSpMiddle">--</p> </td> <td style="border:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height: 17.0pt"> <p class="ListParagraph1CxSpMiddle">60</p> </td> <td style="border-top:solid #009EB8 1.0pt;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:none;padding:0cm 5.4pt 0cm 5.4pt;height: 17.0pt"> </td> <td style="border:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height: 17.0pt"> <p class="ListParagraph1CxSpLast">nA</p> </td> </tr> <tr style="height:17.0pt"> <td width="264" style="width:197.95pt;border-top:none;border-left:solid #009EB8 1.0pt; border-bottom:solid #009EB8 1.0pt;border-right:none;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> <p class="ListParagraph1CxSpFirst">Shutdown Current </p> </td> <td width="253" style="width:189.5pt;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpMiddle">EN = GND</p> </td> <td style="border:none;border-bottom:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> <p class="ListParagraph1CxSpMiddle">--</p> </td> <td style="border:solid #009EB8 1.0pt;border-top:none;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> <p class="ListParagraph1CxSpMiddle">20</p> </td> <td style="border:none;border-bottom:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> </td> <td style="border:solid #009EB8 1.0pt;border-top:none;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> <p class="ListParagraph1CxSpLast">nA</p> </td> </tr> </table>

3. Power-Up Procedure

<h3>Suggestion Required Equipment</h3> <ul><li>RT5717P series Evaluation Board </li> <li>DC power supply capable of at least 5.5V and 3A</li> <li>Electronic load capable of 3A</li> <li>Function Generator</li> <li>Oscilloscope</li> </ul>

4. Quick Start Procedures

<p class="bady">The Evaluation Board is fully assembled and tested. Follow the steps below to verify board operation. Do not turn on supplies until all connections are made. When measuring the output voltage ripple, care must be taken to avoid a long ground lead on the oscilloscope probe. Measure the output voltage ripple by touching the probe tip and ground ring directly across the last output capacitor. </p> <p class="bady">Ensure proper measurement equipment setup, then follow the procedure below:</p> <p class="bady">1. Connect JP21 so that the resistor is connected between the RSEL pin and GND to set the output voltage value.</p> <p class="bady">2. With power off, connect the input power supply to the VIN and GND pins.</p> <p class="bady">3. With power off, connect the electronic load between the VOUT and the nearest GND pins. </p> <p class="bady">4. Turn on the power supply at the input. Make sure that the input voltage does not exceed 5.5V on the Evaluation Board.</p> <p class="bady">5. Enabled the RT5717 by the EN pin. When the EN pin is higher than the logic-high threshold, the IC goes to normal operation; When the EN pin transitions from high to low, the device enters shutdown mode. In this state, the converter stops switching, the internal control circuitry is turned off, and the discharge function is triggered.</p> <p class="bady">6. Use a voltmeter to check that the output voltage is correct.</p> <p class="MsoListParagraph">7. Once the correct output voltage is established, adjust the load within the operating ranges and observe the output voltage regulation, ripple voltage, efficiency, and other performance.</p>

5. Detailed Description of Hardware

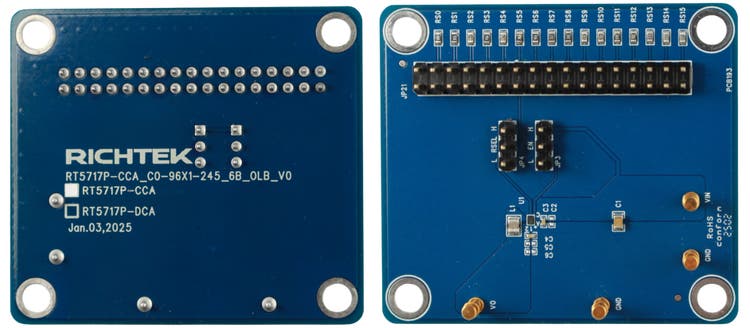

<p class="MsoNormal"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt5717p_series/html-images/image001_en.png"><img width="683" height="298" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt5717p_series/html-images/image001_en.png" alt="Technical Document Image Preview" /></a></p> <p class="bady">Carefully inspect all the components used in the EVB according to the following Bill of Materials table, and then make sure all the components are undamaged and correctly installed. If there is any missing or damaged component, which may occur during transportation, please contact our distributors or e-mail us at <a href="mailto:evb_service@richtek.com" class="link">evb_service@richtek.com</a>.</p> <h3>Test Points</h3> <p class="bady">The EVB is provided with the test points and pin names listed in the table below.</p> <table class="MsoTableLightListAccent2" border="1" cellspacing="0" cellpadding="0" width="680" style="width:510.2pt;border-collapse:collapse;border:none"> <tr style="height:1.0cm"> <td width="15%" valign="top" style="width:15.2%;border-top:solid #009EB8 1.0pt; border-left:solid #009EB8 1.0pt;border-bottom:none;border-right:none; background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> <p class="23CxSpFirst">Test Point/</p> <p class="23CxSpMiddle">Pin Name</p> </td> <td width="84%" valign="top" style="width:84.8%;border:solid #009EB8 1.0pt; border-bottom:none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height: 1.0cm"> <p class="23CxSpLast">Function</p> </td> </tr> <tr style="height:17.0pt"> <td width="15%" style="width:15.2%;border:solid #009EB8 1.0pt;border-right: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpFirst">VIN</p> </td> <td width="84%" style="width:84.8%;border:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> <p class="ListParagraph1CxSpLast">Input voltage. (Note VIN on EVB)</p> </td> </tr> <tr style="height:17.0pt"> <td width="15%" style="width:15.2%;border:none;border-left:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpFirst">VOUT</p> </td> <td width="84%" style="width:84.8%;border-top:none;border-left:solid #009EB8 1.0pt; border-bottom:none;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> <p class="ListParagraph1CxSpLast">Output voltage. (Note VOUT on EVB)</p> </td> </tr> <tr style="height:17.0pt"> <td width="15%" style="width:15.2%;border:solid #009EB8 1.0pt;border-right: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpFirst">GND</p> </td> <td width="84%" style="width:84.8%;border:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> <p class="ListParagraph1CxSpLast">Ground. (Note GND on EVB)</p> </td> </tr> <tr style="height:17.0pt"> <td width="15%" style="width:15.2%;border:none;border-left:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpFirst">EN</p> </td> <td width="84%" style="width:84.8%;border-top:none;border-left:solid #009EB8 1.0pt; border-bottom:none;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> <p class="ListParagraph1CxSpLast">Device Enable. (Note EN on EVB)</p> </td> </tr> <tr style="height:17.0pt"> <td width="15%" style="width:15.2%;border:solid #009EB8 1.0pt;border-right: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpFirst">SW</p> </td> <td width="84%" style="width:84.8%;border:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> <p class="ListParagraph1CxSpLast">Switching Signal. (Note SW on EVB)</p> </td> </tr> <tr style="height:17.0pt"> <td width="15%" style="width:15.2%;border-top:none;border-left:solid #009EB8 1.0pt; border-bottom:solid #009EB8 1.0pt;border-right:none;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> <p class="ListParagraph1CxSpFirst">RSEL</p> </td> <td width="84%" style="width:84.8%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpLast">Output Voltage Select. (Note RSEL on EVB)</p> </td> </tr> </table>

6. Output Voltage Selection

<p class="bady">The RT5717 provides 16 selectable output voltages that can be set with a single external resistor connected between the RSEL pin and GND. The V_OUT select circuit starts to detect the value of the resistor when the converter is enabled, and the control circuit is powered up.</p> <p class="MsoNormal"><a name="_Ref212140643">Table </a>2. Output Voltage Setting</p> <div> <table class="MsoNormalTable" border="1" cellspacing="0" cellpadding="0" width="666" style="border-collapse:collapse;border:none"> <tr style="height:17.0pt"> <td width="53" nowrap style="width:40.05pt;border:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal"><a name="_Hlk190771054">Type</a></p> </td> <td width="86" style="width:64.15pt;border:solid windowtext 1.0pt;border-left: none;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">Output-1</p> </td> <td width="86" nowrap style="width:64.15pt;border:solid windowtext 1.0pt; border-left:none;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">Output-2</p> </td> <td width="86" nowrap style="width:64.15pt;border:solid windowtext 1.0pt; border-left:none;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">Output-3</p> </td> <td width="86" nowrap style="width:64.15pt;border:solid windowtext 1.0pt; border-left:none;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">Output-4</p> </td> <td width="86" style="width:64.15pt;border:solid windowtext 1.0pt;border-left: none;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">Output-5</p> </td> <td width="185" colspan="3" style="width:138.6pt;border:solid windowtext 1.0pt; border-left:none;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">RSEL (<span lang="EN-US" style="font-family:Symbol">W</span>)</p> </td> </tr> <tr style="height:1.0cm"> <td width="53" nowrap style="width:40.05pt;border:solid windowtext 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:1.0cm"> <p class="MsoNormal">Level</p> </td> <td width="86" style="width:64.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:1.0cm"> <p class="MsoNormal">0.5V to 4V</p> </td> <td width="86" style="width:64.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:1.0cm"> <p class="MsoNormal">0.8V to 1.55V</p> </td> <td width="86" style="width:64.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:1.0cm"> <p class="MsoNormal">1.8V to 3.3V</p> </td> <td width="86" style="width:64.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:1.0cm"> <p class="MsoNormal">1.8V to 3.6V</p> </td> <td width="86" style="width:64.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:1.0cm"> <p class="MsoNormal">0.54V to 3.7V</p> </td> <td width="62" style="width:46.2pt;border-top:none;border-left:none;border-bottom: solid windowtext 1.0pt;border-right:solid windowtext 1.0pt;padding:0cm 1.4pt 0cm 1.4pt; height:1.0cm"> <p class="MsoNormal">Min</p> </td> <td width="62" style="width:46.2pt;border-top:none;border-left:none;border-bottom: solid windowtext 1.0pt;border-right:solid windowtext 1.0pt;padding:0cm 1.4pt 0cm 1.4pt; height:1.0cm"> <p class="MsoNormal">Typ</p> </td> <td width="62" style="width:46.2pt;border-top:none;border-left:none;border-bottom: solid windowtext 1.0pt;border-right:solid windowtext 1.0pt;padding:0cm 1.4pt 0cm 1.4pt; height:1.0cm"> <p class="MsoNormal">Max</p> </td> </tr> <tr style="height:17.0pt"> <td width="53" nowrap style="width:40.05pt;border:solid windowtext 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">0</p> </td> <td width="86" nowrap style="width:64.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">0.50</p> </td> <td width="86" nowrap style="width:64.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">0.80</p> </td> <td width="86" nowrap style="width:64.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">1.8</p> </td> <td width="86" nowrap style="width:64.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">1.8</p> </td> <td width="86" style="width:64.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">-- </p> </td> <td width="62" nowrap style="width:46.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">0</p> </td> <td width="62" nowrap style="width:46.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">GND</p> </td> <td width="62" nowrap style="width:46.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">0.01k</p> </td> </tr> <tr style="height:17.0pt"> <td width="53" nowrap style="width:40.05pt;border:solid windowtext 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">1</p> </td> <td width="86" nowrap style="width:64.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">0.58</p> </td> <td width="86" nowrap style="width:64.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">0.85</p> </td> <td width="86" nowrap style="width:64.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">1.9</p> </td> <td width="86" nowrap style="width:64.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">2.0</p> </td> <td width="86" style="width:64.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">0.54 </p> </td> <td width="62" nowrap style="width:46.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">0.87k</p> </td> <td width="62" nowrap style="width:46.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">0.909k</p> </td> <td width="62" nowrap style="width:46.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">0.95k</p> </td> </tr> <tr style="height:17.0pt"> <td width="53" nowrap style="width:40.05pt;border:solid windowtext 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">2</p> </td> <td width="86" nowrap style="width:64.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">0.60</p> </td> <td width="86" nowrap style="width:64.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">0.90</p> </td> <td width="86" nowrap style="width:64.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">2.0</p> </td> <td width="86" nowrap style="width:64.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">2.2</p> </td> <td width="86" style="width:64.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">0.56 </p> </td> <td width="62" nowrap style="width:46.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">1.67k</p> </td> <td width="62" nowrap style="width:46.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">1.74k</p> </td> <td width="62" nowrap style="width:46.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">1.81k</p> </td> </tr> <tr style="height:17.0pt"> <td width="53" nowrap style="width:40.05pt;border:solid windowtext 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">3</p> </td> <td width="86" nowrap style="width:64.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">0.70</p> </td> <td width="86" nowrap style="width:64.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">0.95</p> </td> <td width="86" nowrap style="width:64.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">2.1</p> </td> <td width="86" nowrap style="width:64.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">2.4</p> </td> <td width="86" style="width:64.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">0.65 </p> </td> <td width="62" nowrap style="width:46.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">2.76k</p> </td> <td width="62" nowrap style="width:46.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">2.87k</p> </td> <td width="62" nowrap style="width:46.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">2.98k</p> </td> </tr> <tr style="height:17.0pt"> <td width="53" nowrap style="width:40.05pt;border:solid windowtext 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">4</p> </td> <td width="86" nowrap style="width:64.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">0.75</p> </td> <td width="86" nowrap style="width:64.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">1.00</p> </td> <td width="86" nowrap style="width:64.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">2.2</p> </td> <td width="86" nowrap style="width:64.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">2.5</p> </td> <td width="86" style="width:64.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">0.70 </p> </td> <td width="62" nowrap style="width:46.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">4.15k</p> </td> <td width="62" nowrap style="width:46.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">4.32k</p> </td> <td width="62" nowrap style="width:46.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">4.49k</p> </td> </tr> <tr style="height:17.0pt"> <td width="53" nowrap style="width:40.05pt;border:solid windowtext 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">5</p> </td> <td width="86" nowrap style="width:64.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">0.80</p> </td> <td width="86" nowrap style="width:64.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">1.05</p> </td> <td width="86" nowrap style="width:64.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">2.3</p> </td> <td width="86" nowrap style="width:64.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">2.6</p> </td> <td width="86" style="width:64.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">0.74 </p> </td> <td width="62" nowrap style="width:46.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">5.80k</p> </td> <td width="62" nowrap style="width:46.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">6.04k</p> </td> <td width="62" nowrap style="width:46.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">6.28k</p> </td> </tr> <tr style="height:17.0pt"> <td width="53" nowrap style="width:40.05pt;border:solid windowtext 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">6</p> </td> <td width="86" nowrap style="width:64.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">1.10</p> </td> <td width="86" nowrap style="width:64.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">1.10</p> </td> <td width="86" nowrap style="width:64.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">2.4</p> </td> <td width="86" nowrap style="width:64.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">2.7</p> </td> <td width="86" style="width:64.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">1.00 </p> </td> <td width="62" nowrap style="width:46.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">8.11k</p> </td> <td width="62" nowrap style="width:46.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">8.45k</p> </td> <td width="62" nowrap style="width:46.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">8.79k</p> </td> </tr> <tr style="height:17.0pt"> <td width="53" nowrap style="width:40.05pt;border:solid windowtext 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">7</p> </td> <td width="86" nowrap style="width:64.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">1.20</p> </td> <td width="86" nowrap style="width:64.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">1.15</p> </td> <td width="86" nowrap style="width:64.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">2.5</p> </td> <td width="86" nowrap style="width:64.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">2.8</p> </td> <td width="86" style="width:64.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">1.10 </p> </td> <td width="62" nowrap style="width:46.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">11.04k</p> </td> <td width="62" nowrap style="width:46.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">11.5k</p> </td> <td width="62" nowrap style="width:46.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">11.96k</p> </td> </tr> <tr style="height:17.0pt"> <td width="53" nowrap style="width:40.05pt;border:solid windowtext 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">8</p> </td> <td width="86" nowrap style="width:64.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">1.50</p> </td> <td width="86" nowrap style="width:64.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">1.20</p> </td> <td width="86" nowrap style="width:64.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">2.6</p> </td> <td width="86" nowrap style="width:64.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">2.9</p> </td> <td width="86" style="width:64.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">1.40 </p> </td> <td width="62" nowrap style="width:46.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">15.17k</p> </td> <td width="62" nowrap style="width:46.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">15.8k</p> </td> <td width="62" nowrap style="width:46.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">16.43k</p> </td> </tr> <tr style="height:17.0pt"> <td width="53" nowrap style="width:40.05pt;border:solid windowtext 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">9</p> </td> <td width="86" nowrap style="width:64.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">1.60</p> </td> <td width="86" nowrap style="width:64.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">1.25</p> </td> <td width="86" nowrap style="width:64.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">2.7</p> </td> <td width="86" nowrap style="width:64.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">3.0</p> </td> <td width="86" style="width:64.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">1.50 </p> </td> <td width="62" nowrap style="width:46.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">20.64k</p> </td> <td width="62" nowrap style="width:46.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">21.5k</p> </td> <td width="62" nowrap style="width:46.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">22.36k</p> </td> </tr> <tr style="height:17.0pt"> <td width="53" nowrap style="width:40.05pt;border:solid windowtext 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">10</p> </td> <td width="86" nowrap style="width:64.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">1.80</p> </td> <td width="86" nowrap style="width:64.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">1.30</p> </td> <td width="86" nowrap style="width:64.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">2.8</p> </td> <td width="86" nowrap style="width:64.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">3.1</p> </td> <td width="86" style="width:64.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">1.65 </p> </td> <td width="62" nowrap style="width:46.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">27.55k</p> </td> <td width="62" nowrap style="width:46.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">28.7k</p> </td> <td width="62" nowrap style="width:46.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">29.85k</p> </td> </tr> <tr style="height:17.0pt"> <td width="53" nowrap style="width:40.05pt;border:solid windowtext 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">11</p> </td> <td width="86" nowrap style="width:64.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">1.90</p> </td> <td width="86" nowrap style="width:64.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">1.35</p> </td> <td width="86" nowrap style="width:64.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">2.9</p> </td> <td width="86" nowrap style="width:64.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">3.2</p> </td> <td width="86" style="width:64.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">1.75 </p> </td> <td width="62" nowrap style="width:46.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">36.77k</p> </td> <td width="62" nowrap style="width:46.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">38.3k</p> </td> <td width="62" nowrap style="width:46.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">39.83k</p> </td> </tr> <tr style="height:17.0pt"> <td width="53" nowrap style="width:40.05pt;border:solid windowtext 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">12</p> </td> <td width="86" nowrap style="width:64.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">2.10</p> </td> <td width="86" nowrap style="width:64.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">1.40</p> </td> <td width="86" nowrap style="width:64.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">3.0</p> </td> <td width="86" nowrap style="width:64.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">3.3</p> </td> <td width="86" style="width:64.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">1.95 </p> </td> <td width="62" nowrap style="width:46.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">50.21k</p> </td> <td width="62" nowrap style="width:46.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">52.3k</p> </td> <td width="62" nowrap style="width:46.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">54.39k</p> </td> </tr> <tr style="height:17.0pt"> <td width="53" nowrap style="width:40.05pt;border:solid windowtext 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">13</p> </td> <td width="86" nowrap style="width:64.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">3.00</p> </td> <td width="86" nowrap style="width:64.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">1.45</p> </td> <td width="86" nowrap style="width:64.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">3.1</p> </td> <td width="86" nowrap style="width:64.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">3.4</p> </td> <td width="86" style="width:64.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">2.80 </p> </td> <td width="62" nowrap style="width:46.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">68.64k</p> </td> <td width="62" nowrap style="width:46.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">71.5k</p> </td> <td width="62" nowrap style="width:46.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">74.36k</p> </td> </tr> <tr style="height:17.0pt"> <td width="53" nowrap style="width:40.05pt;border:solid windowtext 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">14</p> </td> <td width="86" nowrap style="width:64.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">3.30</p> </td> <td width="86" nowrap style="width:64.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">1.50</p> </td> <td width="86" nowrap style="width:64.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">3.2</p> </td> <td width="86" nowrap style="width:64.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">3.5</p> </td> <td width="86" style="width:64.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">3.05 </p> </td> <td width="62" nowrap style="width:46.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">97.92k</p> </td> <td width="62" nowrap style="width:46.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">102k</p> </td> <td width="62" nowrap style="width:46.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">106.08k</p> </td> </tr> <tr style="height:17.0pt"> <td width="53" nowrap style="width:40.05pt;border:solid windowtext 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">15</p> </td> <td width="86" nowrap style="width:64.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">4.00</p> </td> <td width="86" nowrap style="width:64.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">1.55</p> </td> <td width="86" nowrap style="width:64.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">3.3</p> </td> <td width="86" nowrap style="width:64.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">3.6</p> </td> <td width="86" style="width:64.15pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">3.70 </p> </td> <td width="62" nowrap style="width:46.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">256.32k</p> </td> <td width="62" nowrap style="width:46.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">267k</p> </td> <td width="62" nowrap style="width:46.2pt;border-top:none;border-left:none; border-bottom:solid windowtext 1.0pt;border-right:solid windowtext 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">277.68k</p> </td> </tr> </table> </div> <p class="MsoCaption">Note 1: E96 resistor series, 1% accuracy, temperature coefficient better or equal than <span lang="EN-US" style="font-size:9.0pt;font-family:Symbol">±</span>200 ppm/°C.</p>

7. Bill of Materials

<div> <table class="TableNormal1" border="1" cellspacing="0" cellpadding="0" width="680" style="border-collapse:collapse;border:none"> <thead> <tr style="height:17.0pt"> <td width="104" style="width:77.75pt;border:solid #009EB8 1.0pt;background: #009EB8;padding:0cm 0cm 0cm 0cm;height:17.0pt"> <p class="TableParagraph">Reference</p> </td> <td width="38" style="width:1.0cm;border:solid #009EB8 1.0pt;border-left:none; background:#009EB8;padding:0cm 0cm 0cm 0cm;height:17.0pt"> <p class="TableParagraph">Count</p> </td> <td width="161" style="width:120.45pt;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 0cm 0cm 0cm;height:17.0pt"> <p class="TableParagraph">Part Number</p> </td> <td width="85" style="width:63.8pt;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 0cm 0cm 0cm;height:17.0pt"> <p class="TableParagraph">Value</p> </td> <td width="123" style="width:92.15pt;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 0cm 0cm 0cm;height:17.0pt"> <p class="TableParagraph">Description</p> </td> <td width="85" style="width:63.8pt;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 0cm 0cm 0cm;height:17.0pt"> <p class="TableParagraph">Package</p> </td> <td width="85" style="width:63.9pt;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 0cm 0cm 0cm;height:17.0pt"> <p class="TableParagraph">Manufacturer</p> </td> </tr> </thead> <tr style="height:1.0cm"> <td width="104" style="width:77.75pt;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 0cm 0cm 0cm;height:1.0cm"> <p class="MsoNormal">U1</p> </td> <td width="38" style="width:1.0cm;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> <p class="MsoNormal">1</p> </td> <td width="161" style="width:120.45pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> <p class="MsoNormal">RT5717P series</p> </td> <td width="85" style="width:63.8pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> <p class="MsoNormal">RT5717P</p> </td> <td width="123" style="width:92.15pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> <p class="MsoNormal">Buck Converter</p> </td> <td width="85" style="width:63.8pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> <p class="MsoNormal">XWL-CSP-6B 0.96X1.245(mm²)</p> </td> <td width="85" style="width:63.9pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> <p class="MsoNormal">RICHTEK</p> </td> </tr> <tr style="height:1.0cm"> <td width="104" style="width:77.75pt;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 0cm 0cm 0cm;height:1.0cm"> <p class="MsoNormal">C1</p> </td> <td width="38" style="width:1.0cm;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> <p class="MsoNormal">1</p> </td> <td width="161" style="width:120.45pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> <p class="MsoNormal">GRM21BR61A476ME15L</p> </td> <td width="85" style="width:63.8pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> <p class="MsoNormal">47µF</p> </td> <td width="123" style="width:92.15pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> <p class="MsoNormal">47µF/6.3V/X5R </p> </td> <td width="85" style="width:63.8pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> <p class="MsoNormal">0805(inch)</p> </td> <td width="85" style="width:63.9pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> <p class="MsoNormal">Murata</p> </td> </tr> <tr style="height:1.0cm"> <td width="104" style="width:77.75pt;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 0cm 0cm 0cm;height:1.0cm"> <p class="MsoNormal">C3</p> </td> <td width="38" style="width:1.0cm;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> <p class="MsoNormal">1</p> </td> <td width="161" style="width:120.45pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> <p class="MsoNormal">GRM155R60J475ME47D</p> </td> <td width="85" style="width:63.8pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> <p class="MsoNormal">4.7µF</p> </td> <td width="123" style="width:92.15pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> <p class="MsoNormal">4.7µF/6.3V/X5R</p> </td> <td width="85" style="width:63.8pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> <p class="MsoNormal">0402(inch)</p> </td> <td width="85" style="width:63.9pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> <p class="MsoNormal">Murata</p> </td> </tr> <tr style="height:1.0cm"> <td width="104" style="width:77.75pt;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 0cm 0cm 0cm;height:1.0cm"> <p class="MsoNormal">C4</p> </td> <td width="38" style="width:1.0cm;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> <p class="MsoNormal">1</p> </td> <td width="161" style="width:120.45pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> <p class="MsoNormal">GRM155R60J106ME15</p> </td> <td width="85" style="width:63.8pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> <p class="MsoNormal">10µF</p> </td> <td width="123" style="width:92.15pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> <p class="MsoNormal">10µF/6.3V/X5R</p> </td> <td width="85" style="width:63.8pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> <p class="MsoNormal">0402(inch)</p> </td> <td width="85" style="width:63.9pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> <p class="MsoNormal">Murata</p> </td> </tr> <tr style="height:1.0cm"> <td width="104" style="width:77.75pt;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 0cm 0cm 0cm;height:1.0cm"> <p class="MsoNormal">L1</p> </td> <td width="38" style="width:1.0cm;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> <p class="MsoNormal">1</p> </td> <td width="161" style="width:120.45pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> <p class="MsoNormal">DFE201610E-1R0M</p> </td> <td width="85" style="width:63.8pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> <p class="MsoNormal">1uH</p> </td> <td width="123" style="width:92.15pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> <p class="MsoNormal">1uH</p> </td> <td width="85" style="width:63.8pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> <p class="MsoNormal">0805(inch)</p> </td> <td width="85" style="width:63.9pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> <p class="MsoNormal">Murata</p> </td> </tr> <tr style="height:1.0cm"> <td width="104" style="width:77.75pt;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 0cm 0cm 0cm;height:1.0cm"> <p class="MsoNormal">R3</p> </td> <td width="38" style="width:1.0cm;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> <p class="MsoNormal">1</p> </td> <td width="161" style="width:120.45pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> <p class="MsoNormal">Resistor E96 series </p> </td> <td width="85" style="width:63.8pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> <p class="MsoNormal">See <u>Table 2</u></p> </td> <td width="123" style="width:92.15pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> <p class="MsoNormal">1%, TC ±200ppm </p> </td> <td width="85" style="width:63.8pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> <p class="MsoNormal">0201(inch)</p> </td> <td width="85" style="width:63.9pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> </td> </tr> </table> </div>

8. Typical Applications

<h3>EVB Schematic Diagram</h3> <p class="MsoNormal"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt5717p_series/html-images/image002_en.png"><img border="0" width="684" height="619" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt5717p_series/html-images/image002_en.png" alt="Technical Document Image Preview" /></a></p> <p class="MsoNormal">1. The capacitance values of the input and output capacitors will influence the input and output voltage ripple. </p> <p class="MsoNormal">2. MLCC capacitors have degrading capacitance at DC bias voltage, and especially smaller size MLCC capacitors will have much lower capacitance. </p> <h3>Measure Result</h3> <table class="MsoNormalTable" border="1" cellspacing="0" cellpadding="0" style="margin-left:26.35pt;border-collapse:collapse;border:none"> <tr> <td width="306" style="width:229.8pt;border:solid #009EB8 1.0pt;background: #009EB8;padding:0cm 5.4pt 0cm 5.4pt"> <p class="MsoNormal">No Load Operating Quiescent Current</p> <p class="MsoNormal">vs. Input Voltage</p> </td> <td width="307" style="width:230.35pt;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt"> <p class="MsoNormal">Shutdown Current vs. Input Voltage</p> </td> </tr> <tr style="height:6.0cm"> <td width="306" style="width:229.8pt;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 1.4pt 0cm 1.4pt;height:6.0cm"> <p class="MsoNormal"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt5717p_series/html-images/image003_en.png"><img border="0" width="303" height="229" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt5717p_series/html-images/image003_en.png" alt="Technical Document Image Preview" /></a></p> </td> <td width="307" style="width:230.35pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:6.0cm"> <p class="MsoNormal"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt5717p_series/html-images/image004_en.png"><img border="0" width="303" height="233" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt5717p_series/html-images/image004_en.png" alt="Technical Document Image Preview" /></a></p> </td> </tr> <tr> <td width="306" style="width:229.8pt;border:solid #009EB8 1.0pt;border-top: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt"> <p class="MsoNormal">Efficiency, Power Save Mode</p> </td> <td width="307" style="width:230.35pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt"> <p class="MsoNormal">Efficiency, Power Save Mode</p> </td> </tr> <tr style="height:6.0cm"> <td width="306" style="width:229.8pt;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 1.4pt 0cm 1.4pt;height:6.0cm"> <p class="MsoNormal"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt5717p_series/html-images/image005_en.png"><img border="0" width="303" height="237" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt5717p_series/html-images/image005_en.png" alt="Technical Document Image Preview" /></a></p> </td> <td width="307" style="width:230.35pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:6.0cm"> <p class="MsoNormal"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt5717p_series/html-images/image006_en.png"><img border="0" width="303" height="230" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt5717p_series/html-images/image006_en.png" alt="Technical Document Image Preview" /></a></p> </td> </tr> <tr> <td width="306" style="width:229.8pt;border:solid #009EB8 1.0pt;border-top: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt"> <p class="MsoNormal">Output Voltage vs. Output Current</p> </td> <td width="307" style="width:230.35pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt"> <p class="MsoNormal">Output Voltage vs. Output Current</p> </td> </tr> <tr style="height:6.0cm"> <td width="306" style="width:229.8pt;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 1.4pt 0cm 1.4pt;height:6.0cm"> <p class="MsoNormal"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt5717p_series/html-images/image007_en.png"><img border="0" width="303" height="217" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt5717p_series/html-images/image007_en.png" alt="Technical Document Image Preview" /></a></p> </td> <td width="307" style="width:230.35pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:6.0cm"> <p class="MsoNormal"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt5717p_series/html-images/image008_en.png"><img border="0" width="303" height="228" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt5717p_series/html-images/image008_en.png" alt="Technical Document Image Preview" /></a></p> </td> </tr> </table> <table class="MsoNormalTable" border="1" cellspacing="0" cellpadding="0" style="margin-left:26.35pt;border-collapse:collapse;border:none"> <tr> <td width="306" style="width:229.8pt;border:solid #009EB8 1.0pt;background: #009EB8;padding:0cm 5.4pt 0cm 5.4pt"> <p class="MsoNormal">Load Transient PSM Mode</p> </td> <td width="307" style="width:230.35pt;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt"> <p class="MsoNormal">Load Transient PSM Mode</p> </td> </tr> <tr style="height:6.0cm"> <td width="306" style="width:229.8pt;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 1.4pt 0cm 1.4pt;height:6.0cm"> <p class="MsoNormal"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt5717p_series/html-images/image009_en.png"><img border="0" width="302" height="215" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt5717p_series/html-images/image009_en.png" alt="Technical Document Image Preview" /></a></p> </td> <td width="307" style="width:230.35pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:6.0cm"> <p class="MsoNormal"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt5717p_series/html-images/image010_en.png"><img border="0" width="303" height="208" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt5717p_series/html-images/image010_en.png" alt="Technical Document Image Preview" /></a></p> </td> </tr> <tr> <td width="306" style="width:229.8pt;border:solid #009EB8 1.0pt;border-top: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt"> <p class="MsoNormal">Load Transient PSM Mode</p> </td> <td width="307" style="width:230.35pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt"> <p class="MsoNormal">AC Load Sweep Power Save Mode</p> </td> </tr> <tr style="height:6.0cm"> <td width="306" style="width:229.8pt;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 1.4pt 0cm 1.4pt;height:6.0cm"> <p class="MsoNormal"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt5717p_series/html-images/image011_en.png"><img border="0" width="303" height="212" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt5717p_series/html-images/image011_en.png" alt="Technical Document Image Preview" /></a></p> </td> <td width="307" style="width:230.35pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:6.0cm"> <p class="MsoNormal"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt5717p_series/html-images/image012_en.png"><img border="0" width="304" height="216" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt5717p_series/html-images/image012_en.png" alt="Technical Document Image Preview" /></a></p> </td> </tr> <tr> <td width="306" style="width:229.8pt;border:solid #009EB8 1.0pt;border-top: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt"> <p class="MsoNormal">Start-Up</p> </td> <td width="307" style="width:230.35pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt"> <p class="MsoNormal">Output Discharge</p> </td> </tr> <tr style="height:6.0cm"> <td width="306" style="width:229.8pt;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 1.4pt 0cm 1.4pt;height:6.0cm"> <p class="MsoNormal"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt5717p_series/html-images/image013_en.png"><img border="0" width="303" height="212" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt5717p_series/html-images/image013_en.png" alt="Technical Document Image Preview" /></a></p> </td> <td width="307" style="width:230.35pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:6.0cm"> <p class="MsoNormal"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt5717p_series/html-images/image014_en.png"><img border="0" width="303" height="208" id="Picture 1" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt5717p_series/html-images/image014_en.png" alt="Technical Document Image Preview" /></a></p> </td> </tr> </table> <p class="MsoNormal">Note 2. When measuring the input or output voltage ripples, care must be taken to avoid a long ground lead on the oscilloscope probe. Measure the output voltage ripple by touching the probe tip directly across the output capacitor.</p>

9. Evaluation Board Layout

<p class="bady">Figure 1 to Figure 4 show the layout of the RT5717P series Evaluation Board. This board size is 56mm x 50mm and is constructed on four-layer PCB, outer layers with 1 oz. Cu, and inner layers with 1 oz. Cu.</p> <p class="23CxSpFirst"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt5717p_series/html-images/image015_en.jpg"><img border="0" width="330" height="383" id="Picture 5" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt5717p_series/html-images/image015_en.jpg" alt="Technical Document Image Preview" /></a></p> <p class="23CxSpLast">Figure 1. Top View (1^st layer)</p> <p class="MsoNormal"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt5717p_series/html-images/image016_en.png"><img border="0" width="329" height="389" id="Picture 4" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt5717p_series/html-images/image016_en.png" alt="Technical Document Image Preview" /></a></p> <p class="10">Figure 2. PCB Layout—Inner Side (2^nd Layer)</p> <p class="MsoNormal"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt5717p_series/html-images/image017_en.png"><img border="0" width="339" height="394" id="Picture 3" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt5717p_series/html-images/image017_en.png" alt="Technical Document Image Preview" /></a></p> <p class="10">Figure 3. PCB Layout—Inner Side (3^rd Layer)</p> <p class="MsoNormal"><i><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt5717p_series/html-images/image018_en.png"><img border="0" width="334" height="392" id="Picture 2" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt5717p_series/html-images/image018_en.png" alt="Technical Document Image Preview" /></a></i></p> <p class="10">Figure 4. Bottom View (4^th Layer)</p>

10. More Information

<p class="bady">For more information, please find the related datasheet or application notes from Richtek website <a href="http://www.richtek.com" class="link">http://www.richtek.com</a>.</p>
