1. Purpose

<p class="MsoNormal">The RT9742A is a cost-effective, low-voltage, single N-MOSFET high-side Power Switch IC for USB application. This document explains the function and use of the RT9742A evaluation board (EVB), and provides information to enable operation, modification of the evaluation board and circuit to suit individual requirements.</p>

2. Introduction

<h3>General Product Information</h3> <p class="bady">The RT9742A integrates an over-current protection circuit, a short fold back circuit, a thermal shutdown circuit and an under-voltage lockout circuit for overall protection. Besides, a flag output is vailable to indicate fault conditions to the local USB controller. Furthermore, the chip also integrates an embedded delay function to prevent miss-operation from happening due to inrush-current. The RT9742A is an ideal solution for USB power supply and can support flexible applications since it is available in TSOT-23-5 (FC) package.</p>

3. Product Feature

<ul> <li> 55mΩ (typ.) N-MOSFET Switch </li> <li> Operating Range : 2.7V to 6V </li> <li> Reverse Blocking Current </li> <li> Under Voltage Lockout </li> <li> Deglitched Fault Report <span class="overline">(FLG)</span> </li> <li> Thermal Protection with Fold-back </li> <li> Over Current Protection </li> <li> Short Circuit Protection </li> <li> UL Approved−E219878 <a href="~/media/Richtek/Design%20Support/Technical%20Documentation/UG9742AGJ5F/EN/Version3/image001.png" class="fancybox"><img id="圖片 7" style="width: 18px; height: 17px;" alt="Technical Document Image Preview" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt9742agj5f/html-images/image001_en.png" /></a> </li> <li> Nemko Approved-NO87949 </li> </ul>

4. Key Performance Summary Table

<table width="680" class="MsoTableLightListAccent2" style="border: currentColor; width: 510.2pt; border-collapse: collapse;" border="1" cellspacing="0" cellpadding="0"> <tbody> <tr style="height: 17pt;"> <td style="background: #009eb8; padding: 0cm 5.4pt; border: 1pt solid #009eb8; width: 34.94%; height: 17pt;"> <p class="ListParagraph1CxSpFirst">Key Features</p> </td> <td style="background: #009eb8; border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: #009eb8 #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 65.06%; height: 17pt;"> <p class="ListParagraph1CxSpLast">Evaluation Board Number : PCB050_V1</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 34.94%; height: 17pt;"> <p class="ListParagraph1CxSpFirst">Input Voltage Range</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 65.06%; height: 17pt;"> <p class="ListParagraph1CxSpLast">2.7V to 6V</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 34.94%; height: 17pt;"> <p class="ListParagraph1CxSpFirst">Max Output Current</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 65.06%; height: 17pt;"> <p class="ListParagraph1CxSpLast">3A</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 34.94%; height: 17pt;"> <p class="ListParagraph1CxSpFirst">Default Output Voltage</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 65.06%; height: 17pt;"> <p class="ListParagraph1CxSpLast">5V @ V_IN = 5V</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 34.94%; height: 17pt;"> <p class="ListParagraph1CxSpFirst">Default Marking & Package Type</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 65.06%; height: 17pt;"> <p class="ListParagraph1CxSpLast">RT9742AGJ5F, TSOT-23-5 (FC)</p> </td> </tr> </tbody> </table>

5. Bench Test Setup Conditions

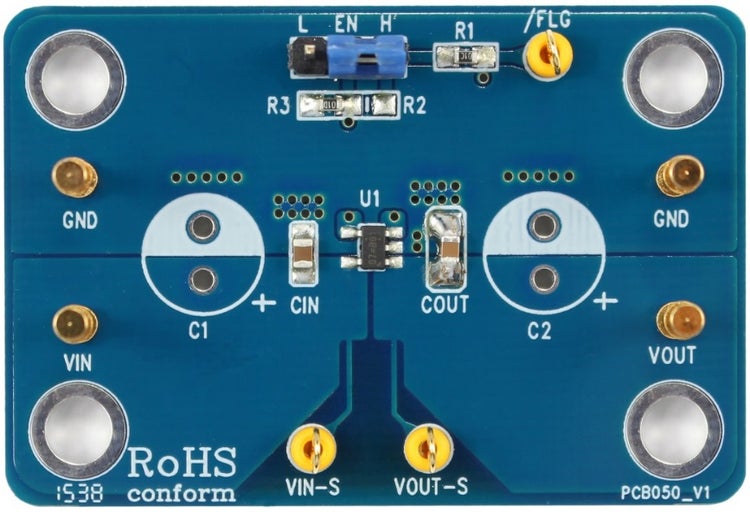

<h3>Headers Description and Placement </h3> <p class="a5"><a href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt9742agj5f/html-images/image002_en.jpg" class="fancybox"><img width="378" height="258" width="378" height="258" id="圖片 6" alt="Technical Document Image Preview" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt9742agj5f/html-images/image002_en.jpg" /></a></p> <p class="2">Please carefully inspect the EVB IC and external components, comparing them to the following Bill of Materials, to ensure that all components are installed and undamaged. If any components are missing or damaged during transportation, please contact the distributor or send e-mail to <a href="mailto:evb_service@richtek.com" class="link">evb_service@richtek.com</a></p>

6. Test Points

<p class="MsoNormal">The EVB is provided with the test points and pin names listed in the table below.</p> <table width="680" class="MsoTableLightListAccent2" style="border: currentColor; width: 510.2pt; margin-left: 5.4pt; border-collapse: collapse;" border="1" cellspacing="0" cellpadding="0"> <tbody> <tr style="height: 1cm;"> <td style="background: #009eb8; padding: 0cm 5.4pt; border: 1pt solid #009eb8; width: 13.9%; height: 1cm;"> <p class="23CxSpFirst">Test point/</p> <p class="23CxSpMiddle">Pin name</p> </td> <td style="background: #009eb8; border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: #009eb8 #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 23.7%; height: 1cm;"> <p class="23CxSpMiddle">Signal</p> </td> <td style="background: #009eb8; border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: #009eb8 #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 62.4%; height: 1cm;"> <p class="23CxSpLast">Comment (expected waveforms or voltage levels on test points)</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 13.9%; height: 17pt;"> <p class="ListParagraph1CxSpFirst">VIN</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 23.7%; height: 17pt;"> <p class="ListParagraph1CxSpLast">Input voltage</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 62.4%; height: 17pt;"> <p class="MsoNormal">Power input. Support 2.7V to 6V Input Voltage.</p> </td> </tr> <tr style="height: 1cm;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 13.9%; height: 1cm;"> <p class="ListParagraph1">EN</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 23.7%; height: 1cm;"> <p class="MsoNormal">Enable test point</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 62.4%; height: 1cm;"> <p class="MsoNormal">High = Enable. Apply a voltage exceeds than enable logic high voltage (2V) for chip enable.</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 13.9%; height: 17pt;"> <p class="ListParagraph1CxSpFirst">GND</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 23.7%; height: 17pt;"> <p class="ListParagraph1CxSpMiddle">Ground</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 62.4%; height: 17pt;"> <p class="ListParagraph1CxSpLast">Ground.</p> </td> </tr> <tr style="height: 1cm;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 13.9%; height: 1cm;"> <p class="ListParagraph1CxSpFirst">VOUT</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 23.7%; height: 1cm;"> <p class="ListParagraph1CxSpMiddle">Output voltage</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 62.4%; height: 1cm;"> <p class="ListParagraph1CxSpLast">Output voltage pin. Probe this pin to observe the output voltage waveform.</p> </td> </tr> <tr style="height: 39.7pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 13.9%; height: 39.7pt;"> <p class="ListParagraph1CxSpFirst">/FLG</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 23.7%; height: 39.7pt;"> <p class="ListParagraph1CxSpLast">Fault FLAG Output</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 62.4%; height: 39.7pt;"> <p class="MsoNormal"><span class="overline">FLAG</span> output indicator pin. <span class="overline">FLAG</span> is a low active output. Once the over current, short circuit, and over temperature occurring, it will indicate “LOW” after 10ms delay time.</p> </td> </tr> </tbody> </table>

7. Power-up & Measurement Procedure

<p class="MsoListParagraph">1. Connecting input power (2.7V < V_IN < 6V) and input ground to VIN and GND test pins respectively.</p> <p class="MsoListParagraph">2. Connecting positive end and negative terminals of load to VOUT and GND test pins respectively.</p> <p class="MsoListParagraph">3. There is a 3-pin header “EN” for enable control. To use a jumper at “HI” option to tie EN test pin to input power VIN for enabling the device. Inversely, to use a jumper at “LO” option to tie EN test pin and ground GND for disabling the device.</p> <p class="MsoListParagraph">4. Connecting an external load up to 5A to the VOUT and GND terminals and verify the over current protection and <span class="overline">FLAG</span> indication.</p>

8. Schematic, Bill of Materials & Board Layout

<h3>EVB Schematic Diagram</h3> <p class="21"><a href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt9742agj5f/html-images/image003_en.jpg" class="fancybox"><img width="624" height="224" width="624" height="224" id="圖片 5" style="border-width: 0px; border-style: solid;" alt="Technical Document Image Preview" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt9742agj5f/html-images/image003_en.jpg" /></a></p>

9. Bill of Materials

<table width="680" class="MsoTableLightListAccent2" style="border: currentColor; margin-left: 4.4pt; border-collapse: collapse;" border="1" cellspacing="0" cellpadding="0"> <tbody> <tr style="height: 17pt;"> <td style="background: #009eb8; padding: 0cm 5.4pt; border: 1pt solid #009eb8; width: 19.92%; height: 17pt;"> <p class="MsoNormal">Reference</p> </td> <td style="background: #009eb8; border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: #009eb8 #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 5.4%; height: 17pt;"> <p class="MsoNormal">Qty</p> </td> <td style="background: #009eb8; border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: #009eb8 #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 19.56%; height: 17pt;"> <p class="MsoNormal">Part Number</p> </td> <td style="background: #009eb8; border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: #009eb8 #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 24.96%; height: 17pt;"> <p class="MsoNormal">Description</p> </td> <td style="background: #009eb8; border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: #009eb8 #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 16.32%; height: 17pt;"> <p class="MsoNormal">Package</p> </td> <td style="background: #009eb8; border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: #009eb8 #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 13.84%; height: 17pt;"> <p class="MsoNormal">Manufacture</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 19.92%; height: 17pt;"> <p class="MsoNormal">U1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 5.4%; height: 17pt;"> <p class="MsoNormal">1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 19.56%; height: 17pt;"> <p class="MsoNormal">RT9742AGJ5F</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 24.96%; height: 17pt;"> <p class="MsoNormal">Power Switch with Flag</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 16.32%; height: 17pt;"> <p class="MsoNormal">TSOT-23-5 (FC)</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 13.84%; height: 17pt;"> <p class="MsoNormal">RICHTEK</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 19.92%; height: 17pt;"> <p class="MsoNormal">CIN</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 5.4%; height: 17pt;"> <p class="MsoNormal">1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 19.56%; height: 17pt;"> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 24.96%; height: 17pt;"> <p class="MsoNormal">10µF/10V/X7R/0805</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 16.32%; height: 17pt;"> <p class="MsoNormal">C-0805</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 13.84%; height: 17pt;"> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 19.92%; height: 17pt;"> <p class="MsoNormal">COUT</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 5.4%; height: 17pt;"> <p class="MsoNormal">1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 19.56%; height: 17pt;"> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 24.96%; height: 17pt;"> <p class="MsoNormal">0.1μF/50V/X7R/0805</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 16.32%; height: 17pt;"> <p class="MsoNormal">C-0805</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 13.84%; height: 17pt;"> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 19.92%; height: 17pt;"> <p class="MsoNormal">C1, C2</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 5.4%; height: 17pt;"> <p class="MsoNormal">2</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 19.56%; height: 17pt;"> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 24.96%; height: 17pt;"> <p class="MsoNormal">NC</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 16.32%; height: 17pt;"> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 13.84%; height: 17pt;"> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 19.92%; height: 17pt;"> <p class="MsoNormal">J1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 5.4%; height: 17pt;"> <p class="MsoNormal">1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 19.56%; height: 17pt;"> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 24.96%; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">SIP-3P</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 16.32%; height: 17pt;"> <p class="MsoNormal">SIP-3P</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 13.84%; height: 17pt;"> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 19.92%; height: 17pt;"> <p class="MsoNormal">R1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 5.4%; height: 17pt;"> <p class="MsoNormal">1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 19.56%; height: 17pt;"> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 24.96%; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">10kΩ/0603</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 16.32%; height: 17pt;"> <p class="MsoNormal">R-0603</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 13.84%; height: 17pt;"> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 19.92%; height: 17pt;"> <p class="MsoNormal">R3</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 5.4%; height: 17pt;"> <p class="MsoNormal">1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 19.56%; height: 17pt;"> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 24.96%; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">100kΩ/0603</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 16.32%; height: 17pt;"> <p class="MsoNormal">R-0603</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 13.84%; height: 17pt;"> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 19.92%; height: 17pt;"> <p class="MsoNormal">R2</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 5.4%; height: 17pt;"> <p class="MsoNormal">1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 19.56%; height: 17pt;"> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 24.96%; height: 17pt;"> <p class="MsoNormal">NC</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 16.32%; height: 17pt;"> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 13.84%; height: 17pt;"> </td> </tr> <tr style="height: 1cm;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 19.92%; height: 1cm;"> <p class="MsoNormal">GP1, GP2, GP3, GP4</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 5.4%; height: 1cm;"> <p class="MsoNormal">4</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 19.56%; height: 1cm;"> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 24.96%; height: 1cm;"> <p class="MsoNormal">VIN, GND, VOUT, GND (Gold Pin)</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 16.32%; height: 1cm;"> <p class="MsoNormal">SIP-1P</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 13.84%; height: 1cm;"> </td> </tr> <tr style="height: 1cm;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 19.92%; height: 1cm;"> <p class="MsoNormal">TP1, TP2, TP3</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 5.4%; height: 1cm;"> <p class="MsoNormal">3</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 19.56%; height: 1cm;"> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 24.96%; height: 1cm;"> <p class="MsoNormal">VIN-S, VOUT-S, /FLG (Test Pin)</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 16.32%; height: 1cm;"> <p class="MsoNormal">SIP-1P</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 13.84%; height: 1cm;"> </td> </tr> </tbody> </table>

10. PCB Layout

<p class="23CxSpFirst"><a href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt9742agj5f/html-images/image004_en.jpg" class="fancybox"><img width="491" height="331" width="491" height="331" id="圖片 2" style="border-width: 0px; border-style: solid;" alt="Technical Document Image Preview" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt9742agj5f/html-images/image004_en.jpg" /></a></p> <p class="23CxSpLast">Top View</p> <p class="MsoNormal"><a href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt9742agj5f/html-images/image005_en.jpg" class="fancybox"><img width="491" height="332" width="491" height="332" id="圖片 3" style="border-width: 0px; border-style: solid;" alt="Technical Document Image Preview" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt9742agj5f/html-images/image005_en.jpg" /></a></p> <p class="23">Bottom View</p>
