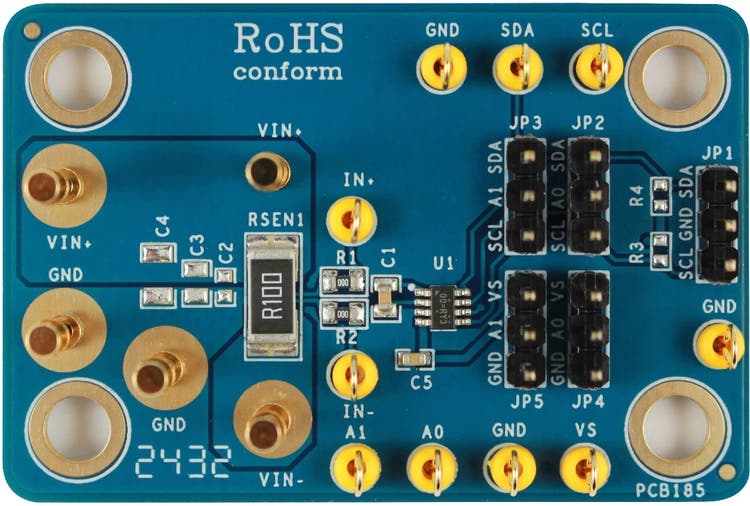

This document provides information on the function and use of the RTQ6059 evaluation board (EVB), as well as instructions for operating and modifying the board and circuit to meet individual requirements. Additionally, it includes details on the schematic diagram, bill of materials, and evaluation board layout.

EVB_RTQ6059GJ8

width

fixed-width

basicInfoImageSection

anchor

overviewSection

i18n(anchor-tab.overview-section.title)

overviewSectionAnchorTab

designResourceSection

i18n(anchor-tab.design-resource-section.title)

designResourceSectionAnchorTab

relatedProductSection

i18n(anchor-tab.related-product-section.title)

relatedProductSectionAnchorTab

orderingInformationSection

i18n(anchor-tab.ordering-information-section.title)

orderingInformationSectionAnchorTab

width

full-width

anchorSection

overview

1. General Description

This document provides information on the function and use of the RTQ6059 evaluation board (EVB), as well as instructions for operating and modifying the board and circuit to meet individual requirements. Additionally, it includes details on the schematic diagram, bill of materials, and evaluation board layout.

2. Performance Specification Summary

Summary of the RTQ6059GJ8 Evaluation Board performance specificiaiton is provided in Table 1. The ambient temperature is 25°C. Table 1. RTQ6059GJ8 Evaluation Board Performance Specification Summary <div> <table class="MsoTableLightListAccent2" border="1" cellspacing="0" cellpadding="0" width="680" style="width:510.2pt;border-collapse:collapse;border:none"> <tr style="height:17.0pt"> <td width="181" style="width:135.55pt;border:solid #009EB8 1.0pt;background: #009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Specification </td> <td width="287" style="width:215.55pt;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Test Conditions </td> <td width="53" style="width:39.75pt;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Min </td> <td width="53" style="width:39.8pt;border:solid #009EB8 1.0pt;border-left:none; background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Typ </td> <td width="53" style="width:39.75pt;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Max </td> <td width="53" style="width:39.8pt;border:solid #009EB8 1.0pt;border-left:none; background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Unit </td> </tr> <tr style="height:15.75pt"> <td width="181" style="width:135.55pt;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:15.75pt"> Default Input Voltage </td> <td width="287" style="width:215.55pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:15.75pt"> Default = 12V </td> <td width="53" style="width:39.75pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:15.75pt"> 0 </td> <td width="53" style="width:39.8pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:15.75pt"> -- </td> <td width="53" style="width:39.75pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:15.75pt"> 32 </td> <td width="53" style="width:39.8pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:15.75pt"> V </td> </tr> <tr style="height:17.0pt"> <td width="181" style="width:135.55pt;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Supply Voltage </td> <td width="287" style="width:215.55pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Default = 3.3V </td> <td width="53" style="width:39.75pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 3 </td> <td width="53" style="width:39.8pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> -- </td> <td width="53" style="width:39.75pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 5.5 </td> <td width="53" style="width:39.8pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> V </td> </tr> <tr style="height:17.0pt"> <td width="181" style="width:135.55pt;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Sensing Current </td> <td width="287" style="width:215.55pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> </td> <td width="53" style="width:39.75pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> -- </td> <td width="53" style="width:39.8pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> 0.5 </td> <td width="53" style="width:39.75pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> -- </td> <td width="53" style="width:39.8pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> A </td> </tr> <tr style="height:17.0pt"> <td width="181" rowspan="2" style="width:135.55pt;border:solid #009EB8 1.0pt; border-top:none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 1 LSB Step Size </td> <td width="287" style="width:215.55pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Sense voltage </td> <td width="53" style="width:39.75pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> -- </td> <td width="53" style="width:39.8pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> 10 </td> <td width="53" style="width:39.75pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> -- </td> <td width="53" style="width:39.8pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> μV </td> </tr> <tr style="height:17.0pt"> <td width="287" style="width:215.55pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Bus voltage </td> <td width="53" style="width:39.75pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> -- </td> <td width="53" style="width:39.8pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> 4 </td> <td width="53" style="width:39.75pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> -- </td> <td width="53" style="width:39.8pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> mV </td> </tr> <tr style="height:17.0pt"> <td width="181" rowspan="2" style="width:135.55pt;border:solid #009EB8 1.0pt; border-top:none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Quiescent Current </td> <td width="287" style="width:215.55pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> TA = 25°C </td> <td width="53" style="width:39.75pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> -- </td> <td width="53" style="width:39.8pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> 0.7 </td> <td width="53" style="width:39.75pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 1 </td> <td width="53" style="width:39.8pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> mA </td> </tr> <tr style="height:17.0pt"> <td width="287" style="width:215.55pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Shutdown mode </td> <td width="53" style="width:39.75pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> -- </td> <td width="53" style="width:39.8pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> 6 </td> <td width="53" style="width:39.75pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 15 </td> <td width="53" style="width:39.8pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> μA </td> </tr> </table> </div>

3. Power-up Procedure

<h3>Suggestion Required Equipments</h3> <ul> <li>DC Power Supply (Chroma, 62006P-100-25)</li> <li>Electronic load capable of 6A</li> <li>Richtek Wrenboard</li> </ul> <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq6059gj8/html-images/image001_en.png"><img width="523" height="216" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq6059gj8/html-images/image001_en.png" alt="Technical Document Image Preview" /></a> Figure1. High-Side Configuration

4. Quick Start Procedures

1. Apply VS = 3.3V input power supply (3V < VS < 5.5V) to VS and GND terminals. 2. Apply 12V input power voltage (0V < IN+ < 32V) to the IN+ and GND terminals. 3. The default sense resistance is 100mΩ. 4. Connect an external load to the IN- and GND terminals, and keep loading current = 0.5A. 5. Measure the sense voltage (approximately 50mV) between the IN+ and IN-. 6. Use the RTQ6059 GUI to check practical sense voltage, bus voltage, current, and power.

5. Detailed Description of Hardware

<h3>Headers Description and Placement</h3> <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq6059gj8/html-images/image002_en.png"><img width="491" height="331" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq6059gj8/html-images/image002_en.png" alt="一張含有電路, 文字, 電子工程, 電子產品的圖片自動產生的描述" /></a> Carefully inspect all the components used in the EVB according to the following Bill of Materials table, and then make sure all the components are undamaged and correctly installed. If there is any missing or damaged component, which may occur during transportation, please contact our distributors or e-mail us at <a href="mailto:evb_service@richtek.com" class="link">evb_service@richtek.com</a>.

6. Test Points

The EVB is provided with the test points and pin names listed in the table below. <table class="MsoTableLightListAccent2" border="1" cellspacing="0" cellpadding="0" width="680" style="width:510.2pt;margin-left:1.85pt;border-collapse:collapse; border:none"> <thead> <tr style="height:1.0cm"> <td width="14%" style="width:14.64%;border:solid #009EB8 1.0pt;background: #009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> Test Point/ Pin Name </td> <td width="85%" style="width:85.36%;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> Function </td> </tr> </thead> <tr style="height:17.0pt"> <td width="14%" style="width:14.64%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> A1, A0 </td> <td width="85%" style="width:85.36%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Slave address selection. </td> </tr> <tr style="height:17.0pt"> <td width="14%" style="width:14.64%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> SCL </td> <td width="85%" style="width:85.36%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> I2C communication connection. </td> </tr> <tr style="height:17.0pt"> <td width="14%" style="width:14.64%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> SDA </td> <td width="85%" style="width:85.36%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> I2C communication connection. </td> </tr> <tr style="height:17.0pt"> <td width="14%" style="width:14.64%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> IN+ </td> <td width="85%" style="width:85.36%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Positive current-sensing input. </td> </tr> <tr style="height:17.0pt"> <td width="14%" style="width:14.64%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> IN- </td> <td width="85%" style="width:85.36%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Negative current-sensing input. </td> </tr> <tr style="height:17.0pt"> <td width="14%" style="width:14.64%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> VS </td> <td width="85%" style="width:85.36%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Power supply, 3V to 5.5V. </td> </tr> </table>

7. RTQ6059 Evaluation Board Jumper Default Settings

Figure 2 displays the default jumper settings of the RTQ6059 Evaluation Board. The initial slave address, as indicated in Table 2, is 0x40 (Hex). To modify the slave address, the position of the jumper can be altered. <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq6059gj8/html-images/image003_en.png"><img border="0" width="343" height="205" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq6059gj8/html-images/image003_en.png" alt="Technical Document Image Preview" /></a> Figure 2. Slave Address Default Setting <a name="_Ref141714771">Table </a>2. Slave Addresses Selection <div> <table class="MsoNormalTable" border="1" cellspacing="0" cellpadding="0" width="680" style="width:510.2pt;border-collapse:collapse;border:none"> <tr style="height:17.0pt"> <td width="64" style="width:48.0pt;border:solid #009EB8 1.0pt;background:#009EB8; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> A1 </td> <td width="64" style="width:48.0pt;border:solid #009EB8 1.0pt;border-left:none; background:#009EB8;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> A0 </td> <td width="135" style="width:101.0pt;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> Slave Address </td> <td width="149" style="width:112.0pt;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> Slave Address (Hex) </td> </tr> <tr style="height:17.0pt"> <td width="64" style="width:48.0pt;border:solid #009EB8 1.0pt;border-top:none; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> GND </td> <td width="64" style="width:48.0pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 1.4pt 0cm 1.4pt; height:17.0pt"> GND </td> <td width="135" style="width:101.0pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 1000000 </td> <td width="149" style="width:112.0pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 40 </td> </tr> <tr style="height:17.0pt"> <td width="64" style="width:48.0pt;border:solid #009EB8 1.0pt;border-top:none; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> GND </td> <td width="64" style="width:48.0pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 1.4pt 0cm 1.4pt; height:17.0pt"> VS </td> <td width="135" style="width:101.0pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 1000001 </td> <td width="149" style="width:112.0pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 41 </td> </tr> <tr style="height:17.0pt"> <td width="64" style="width:48.0pt;border:solid #009EB8 1.0pt;border-top:none; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> GND </td> <td width="64" style="width:48.0pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 1.4pt 0cm 1.4pt; height:17.0pt"> SDA </td> <td width="135" style="width:101.0pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 1000010 </td> <td width="149" style="width:112.0pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 42 </td> </tr> <tr style="height:17.0pt"> <td width="64" style="width:48.0pt;border:solid #009EB8 1.0pt;border-top:none; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> GND </td> <td width="64" style="width:48.0pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 1.4pt 0cm 1.4pt; height:17.0pt"> SCL </td> <td width="135" style="width:101.0pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 1000011 </td> <td width="149" style="width:112.0pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 43 </td> </tr> <tr style="height:17.0pt"> <td width="64" style="width:48.0pt;border:solid #009EB8 1.0pt;border-top:none; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> VS </td> <td width="64" style="width:48.0pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 1.4pt 0cm 1.4pt; height:17.0pt"> GND </td> <td width="135" style="width:101.0pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 1000100 </td> <td width="149" style="width:112.0pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 44 </td> </tr> <tr style="height:17.0pt"> <td width="64" style="width:48.0pt;border:solid #009EB8 1.0pt;border-top:none; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> VS </td> <td width="64" style="width:48.0pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 1.4pt 0cm 1.4pt; height:17.0pt"> VS </td> <td width="135" style="width:101.0pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 1000101 </td> <td width="149" style="width:112.0pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 45 </td> </tr> <tr style="height:17.0pt"> <td width="64" style="width:48.0pt;border:solid #009EB8 1.0pt;border-top:none; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> VS </td> <td width="64" style="width:48.0pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 1.4pt 0cm 1.4pt; height:17.0pt"> SDA </td> <td width="135" style="width:101.0pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 1000110 </td> <td width="149" style="width:112.0pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 46 </td> </tr> <tr style="height:17.0pt"> <td width="64" style="width:48.0pt;border:solid #009EB8 1.0pt;border-top:none; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> VS </td> <td width="64" style="width:48.0pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 1.4pt 0cm 1.4pt; height:17.0pt"> SCL </td> <td width="135" style="width:101.0pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 1000111 </td> <td width="149" style="width:112.0pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 47 </td> </tr> <tr style="height:17.0pt"> <td width="64" style="width:48.0pt;border:solid #009EB8 1.0pt;border-top:none; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> SDA </td> <td width="64" style="width:48.0pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 1.4pt 0cm 1.4pt; height:17.0pt"> GND </td> <td width="135" style="width:101.0pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 1001000 </td> <td width="149" style="width:112.0pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 48 </td> </tr> <tr style="height:17.0pt"> <td width="64" style="width:48.0pt;border:solid #009EB8 1.0pt;border-top:none; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> SDA </td> <td width="64" style="width:48.0pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 1.4pt 0cm 1.4pt; height:17.0pt"> VS </td> <td width="135" style="width:101.0pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 1001001 </td> <td width="149" style="width:112.0pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 49 </td> </tr> <tr style="height:17.0pt"> <td width="64" style="width:48.0pt;border:solid #009EB8 1.0pt;border-top:none; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> SDA </td> <td width="64" style="width:48.0pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 1.4pt 0cm 1.4pt; height:17.0pt"> SDA </td> <td width="135" style="width:101.0pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 1001010 </td> <td width="149" style="width:112.0pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 4A </td> </tr> <tr style="height:17.0pt"> <td width="64" style="width:48.0pt;border:solid #009EB8 1.0pt;border-top:none; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> SDA </td> <td width="64" style="width:48.0pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 1.4pt 0cm 1.4pt; height:17.0pt"> SCL </td> <td width="135" style="width:101.0pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 1001011 </td> <td width="149" style="width:112.0pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 4B </td> </tr> <tr style="height:17.0pt"> <td width="64" style="width:48.0pt;border:solid #009EB8 1.0pt;border-top:none; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> SCL </td> <td width="64" style="width:48.0pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 1.4pt 0cm 1.4pt; height:17.0pt"> GND </td> <td width="135" style="width:101.0pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 1001100 </td> <td width="149" style="width:112.0pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 4C </td> </tr> <tr style="height:17.0pt"> <td width="64" style="width:48.0pt;border:solid #009EB8 1.0pt;border-top:none; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> SCL </td> <td width="64" style="width:48.0pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 1.4pt 0cm 1.4pt; height:17.0pt"> VS </td> <td width="135" style="width:101.0pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 1001101 </td> <td width="149" style="width:112.0pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 4D </td> </tr> <tr style="height:17.0pt"> <td width="64" style="width:48.0pt;border:solid #009EB8 1.0pt;border-top:none; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> SCL </td> <td width="64" style="width:48.0pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 1.4pt 0cm 1.4pt; height:17.0pt"> SDA </td> <td width="135" style="width:101.0pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 1001110 </td> <td width="149" style="width:112.0pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 4E </td> </tr> <tr style="height:17.0pt"> <td width="64" style="width:48.0pt;border:solid #009EB8 1.0pt;border-top:none; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> SCL </td> <td width="64" style="width:48.0pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 1.4pt 0cm 1.4pt; height:17.0pt"> SCL </td> <td width="135" style="width:101.0pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 1001111 </td> <td width="149" style="width:112.0pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 4F </td> </tr> </table> </div>

8. IN+ and IN- Input RC Filter

The RTQ6059 Evaluation Board features an RC filter option to shield the IN+ and IN- inputs from high-frequency noise. As depicted in Figure 3, the default settings are 0Ω for resistance and 0.1µF for capacitance. <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq6059gj8/html-images/image004_en.png"><img border="0" width="378" height="254" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq6059gj8/html-images/image004_en.png" alt="Technical Document Image Preview" /></a> Figure 3. Input Filter Setting

9. Freely Choose between High-Side or Low-Side

Figure 1 shows the RTQ6059 Evaluation Board in a high-side configuration. To switch to a low-side configuration, as per Figure 4, short the VIN- pin to GND, connect VIN+ to Load +, connect Load - to PSU2 +, and short PSU2 to GND. According to the design architecture, Low-Side Configuration is only suitable for current measurement. This configuration method involves connecting the measurement device between the load and the ground, allowing for the direct measurement of the current passing through the load. <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq6059gj8/html-images/image005_en.png"><img border="0" width="567" height="194" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq6059gj8/html-images/image005_en.png" alt="Technical Document Image Preview" /></a> Figure 4. Low-Side Configuration

10. RichTek WrenBoard Driver Installation

To use the WrenBoard developed by Richtek, it is necessary to first install the driver. Follow the steps below to complete the driver installation, and then the WrenBoard will be ready for use. As shown in Figure 5, click on "Richtek Bridgeboard Utilities" and then press the "Install" button to begin the installation. <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq6059gj8/html-images/image006_en.png"><img border="0" width="344" height="279" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq6059gj8/html-images/image006_en.png" alt="Technical Document Image Preview" /></a> Figure 5. Driver Installation Step 1 As seen in Figure 6, wait for the installation to proceed. During the installation process, a window will pop up, as shown in Figure 7. At this point, press the "YES" button to continue with the installation. <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq6059gj8/html-images/image007_en.png"><img border="0" width="343" height="279" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq6059gj8/html-images/image007_en.png" alt="Technical Document Image Preview" /></a> Figure 6. Driver Installation Step 2 <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq6059gj8/html-images/image008_en.png"><img border="0" width="344" height="279" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq6059gj8/html-images/image008_en.png" alt="Technical Document Image Preview" /></a> Figure 7. Driver Installation Step 3 The installation will continue at this point. Wait for the installation process to proceed further, as shown in Figure 8. <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq6059gj8/html-images/image009_en.png"><img border="0" width="338" height="279" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq6059gj8/html-images/image009_en.png" alt="Technical Document Image Preview" /></a> Figure 8. Driver Installation Step 4 After clicking the "Next" button in Figure 9, the License Agreement screen, as shown in Figure 10, will appear. Choose to accept and continue by clicking the "Next" button. Then, after confirming the relevant information in Figure 11, you can click the "Next" button again. <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq6059gj8/html-images/image010_en.png"><img border="0" width="368" height="279" id="圖片 6" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq6059gj8/html-images/image010_en.png" alt="Technical Document Image Preview" /></a> Figure 9. Driver Installation Step 5 <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq6059gj8/html-images/image011_en.png"><img border="0" width="367" height="279" id="圖片 7" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq6059gj8/html-images/image011_en.png" alt="Technical Document Image Preview" /></a> Figure 10. Driver Installation Step 6 <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq6059gj8/html-images/image012_en.png"><img border="0" width="361" height="279" id="圖片 8" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq6059gj8/html-images/image012_en.png" alt="Technical Document Image Preview" /></a> Figure 11. Driver Installation Step 7 In Figure 12, you can set the path for the installation. Once you have set it, you can click the "OK" button. Figure 13 is a confirmation step to ensure the installation path is correct. If everything is satisfactory, you can click the "Next" button to proceed with the rest of the installation. <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq6059gj8/html-images/image013_en.png"><img border="0" width="368" height="279" id="圖片 9" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq6059gj8/html-images/image013_en.png" alt="一張含有文字, 電子產品, 螢幕擷取畫面, 陳列的圖片自動產生的描述" /></a> Figure 12. Driver Installation Step 8 <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq6059gj8/html-images/image014_en.png"><img border="0" width="371" height="279" id="圖片 10" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq6059gj8/html-images/image014_en.png" alt="Technical Document Image Preview" /></a> Figure 13. Driver Installation Step 9 As shown in Figure 14, after confirming that all information is correct, click the "Install" button and wait for the installation progress bar to complete, as depicted in Figure 15. Once the installation is fully completed, click "Finish" to complete the entire driver installation process, as shown in Figure 16. <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq6059gj8/html-images/image015_en.png"><img border="0" width="370" height="279" id="圖片 11" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq6059gj8/html-images/image015_en.png" alt="Technical Document Image Preview" /></a> Figure 14. Driver Installation Step 10 <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq6059gj8/html-images/image016_en.png"><img border="0" width="363" height="279" id="圖片 12" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq6059gj8/html-images/image016_en.png" alt="Technical Document Image Preview" /></a> Figure 15. Driver Installation Step 11 <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq6059gj8/html-images/image017_en.png"><img border="0" width="367" height="279" id="圖片 13" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq6059gj8/html-images/image017_en.png" alt="Technical Document Image Preview" /></a> Figure 16. Driver Installation Step 12

11. RTQ6059 Evaluation Board Software Setup

The GUI for the RTQ6059 can be downloaded from the official website. After downloading, please unzip the file and click the installer to proceed with the installation. Figure 17 demonstrates the installation process. <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq6059gj8/html-images/image018_en.png"><img border="0" width="339" height="279" id="圖片 14" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq6059gj8/html-images/image018_en.png" alt="一張含有文字, 電子產品, 螢幕擷取畫面, 陳列的圖片自動產生的描述" /></a> Figure 17. GUI Installation Step 1 During the installation process, set the installation path according to the user’s needs, and then continue with the installation until the software is completely installed, after which the GUI can be used. Figure 18 shows the progress bar of the installation process. <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq6059gj8/html-images/image019_en.png"><img border="0" width="338" height="279" id="圖片 16" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq6059gj8/html-images/image019_en.png" alt="一張含有文字, 電子產品, 螢幕擷取畫面, 陳列的圖片自動產生的描述" /></a> Figure 18. GUI Installation Step 2

12. Graphical User Interface Overview

The RTQ6059 Evaluation Board includes the RTQ6059 CSOP GUI, which allows users to control the RTQ6059. Figure 19 displays the GUI interface, which is user-friendly. <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq6059gj8/html-images/image020_en.png"><img border="0" width="497" height="454" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq6059gj8/html-images/image020_en.png" alt="Technical Document Image Preview" /></a> Figure 19. RTQ6059 Graphical User Interface

13. Quick Operation of the RTQ6059 EVB Software

Step 1. Check Slave Address. Step 2. Set Configure Operation Mode. Step 3. Set Conversion Time. Step 4. Set the shunt resistor value. Step 5. Set Max expected current for sensing. Step 6. Set min current resolution for current LSB. Step 7. Push “Apply” bottom, the 0x05 Calibration register is written into a value for expected current LSB. Step 8. The data of single read or continued read selection.

14. Selection of Slave Address

Slave Address is follow Figure 20. Users can connect multiple EVBs and upon clicking the "Refresh" button, the GUI will detect all connected slave addresses. <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq6059gj8/html-images/image021_en.png"><img border="0" width="456" height="394" id="圖片 2" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq6059gj8/html-images/image021_en.png" alt="Technical Document Image Preview" /></a> Figure 20. Select Slave Address

15. Customize the Configuration Operation

This GUI provides configuration options for operations such as setting the Bus Voltage Range, PGA Range, and Operating Mode, as illustrated in Figure 21. Users can decide on all the modes to be set based on their own needs. <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq6059gj8/html-images/image022_en.png"><img border="0" width="566" height="339" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq6059gj8/html-images/image022_en.png" alt="Technical Document Image Preview" /></a> Figure21. Configure Operation

16. Conversion Time Settings

Users can customize the required conversion times as shown in Figure 22. Both Bus and Shunt settings are configured independently. To observe differences, selecting longer conversion times is advisable. <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq6059gj8/html-images/image023_en.png"><img border="0" width="548" height="173" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq6059gj8/html-images/image023_en.png" alt="Technical Document Image Preview" /></a> Figure22. Bus/Shunt Conversion Time Settings

17. Auto Calibration Function

Users need to correctly configure the compensation values in the Configuration Register to ensure accurate readings are displayed in the software. Setting the correct compensation values requires the following Equation 1, which can be cumbersome for users. Therefore, the GUI provides an automatic compensation calculation method. As shown in Figure 23, by entering the resistance value used, the maximum current, and the minimum current LSB, the final required compensation value can be calculated. <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq6059gj8/html-images/image024_en.jpg"><img border="0" width="378" height="56" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq6059gj8/html-images/image024_en.jpg" alt="一張含有文字, 字型, 白色, 螢幕擷取畫面的圖片自動產生的描述" /></a>……………………………….(1) <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq6059gj8/html-images/image025_en.png"><img border="0" width="252" height="211" id="圖片 27" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq6059gj8/html-images/image025_en.png" alt="一張含有文字, 螢幕擷取畫面, 陳列, 字型的圖片自動產生的描述" /></a> Figure 23. Auto Calibration

18. Function for Drawing Chart

Figure 24 displays the process when the "Auto Read" button is pressed, depicting the wait for the GUI to capture data. Figure 25 shows that users can select the desired ranges to plot and check them, with the results being immediately displayed on the Graph. <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq6059gj8/html-images/image026_en.png"><img border="0" width="496" height="426" id="圖片 3" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq6059gj8/html-images/image026_en.png" alt="Technical Document Image Preview" /></a> Figure 24. Data Visualization Function <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq6059gj8/html-images/image027_en.png"><img border="0" width="474" height="408" id="圖片 4" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq6059gj8/html-images/image027_en.png" alt="Technical Document Image Preview" /></a> Figure 25. Customize Chart Display Function

19. Single Register Read/Write

Figure 26 demonstrates the capability to read and write to individual registers through the GUI. Step 1. Select the register to Read/Write. <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq6059gj8/html-images/image028_en.png"><img border="0" width="380" height="349" id="圖片 5" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq6059gj8/html-images/image028_en.png" alt="Technical Document Image Preview" /></a> Figure 26. Register Read/Write Function

20. Bill of Materials

<div> <table class="TableNormal" border="1" cellspacing="0" cellpadding="0" width="680" style="border-collapse:collapse;border:none"> <thead> <tr style="height:17.0pt"> <td width="680" colspan="7" style="width:510.2pt;border:solid #009EB8 1.0pt; background:#009EB8;padding:0cm 0cm 0cm 0cm;height:17.0pt"> VIN = 12V, VS = 3.3V, IOUT = 0.5A </td> </tr> <tr style="height:17.0pt"> <td width="78" style="width:58.55pt;border:solid #009EB8 1.0pt;border-top: none;background:#009EB8;padding:0cm 0cm 0cm 0cm;height:17.0pt"> Reference </td> <td width="45" style="width:33.6pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; background:#009EB8;padding:0cm 0cm 0cm 0cm;height:17.0pt"> Count </td> <td width="172" style="width:128.8pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; background:#009EB8;padding:0cm 0cm 0cm 0cm;height:17.0pt"> Part Number </td> <td width="87" style="width:65.05pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; background:#009EB8;padding:0cm 0cm 0cm 0cm;height:17.0pt"> Value </td> <td width="131" style="width:98.0pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; background:#009EB8;padding:0cm 0cm 0cm 0cm;height:17.0pt"> Description </td> <td width="76" style="width:2.0cm;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;background:#009EB8; padding:0cm 0cm 0cm 0cm;height:17.0pt"> Package </td> <td width="93" style="width:69.5pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; background:#009EB8;padding:0cm 0cm 0cm 0cm;height:17.0pt"> Manufacturer </td> </tr> </thead> <tr style="height:17.0pt"> <td width="78" style="width:58.55pt;border:solid #009EB8 1.0pt;border-top:none; padding:0cm 0cm 0cm 0cm;height:17.0pt"> U1 </td> <td width="45" style="width:33.6pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:17.0pt"> 1 </td> <td width="172" style="width:128.8pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:17.0pt"> RTQ6059GJ8 </td> <td width="87" style="width:65.05pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:17.0pt"> -- </td> <td width="131" style="width:98.0pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:17.0pt"> 16-Bit ADC Op Amp </td> <td width="76" style="width:2.0cm;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:17.0pt"> TSOT-23-8 </td> <td width="93" style="width:69.5pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:17.0pt"> RICHTEK </td> </tr> <tr style="height:1.0cm"> <td width="78" style="width:58.55pt;border:solid #009EB8 1.0pt;border-top:none; padding:0cm 0cm 0cm 0cm;height:1.0cm"> C1, C5 </td> <td width="45" style="width:33.6pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> 2 </td> <td width="172" style="width:128.8pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> GRM188R71H104KA93D </td> <td width="87" style="width:65.05pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> 0.1µF </td> <td width="131" style="width:98.0pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> Capacitor, Ceramic, 50V/X7R </td> <td width="76" style="width:2.0cm;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> 0603 </td> <td width="93" style="width:69.5pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> MURATA </td> </tr> <tr style="height:17.0pt"> <td width="78" style="width:58.55pt;border:solid #009EB8 1.0pt;border-top:none; padding:0cm 0cm 0cm 0cm;height:17.0pt"> R1, R2 </td> <td width="45" style="width:33.6pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:17.0pt"> 2 </td> <td width="172" style="width:128.8pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:17.0pt"> RAT030000FTP </td> <td width="87" style="width:65.05pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:17.0pt"> 0 </td> <td width="131" style="width:98.0pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:17.0pt"> Resistor </td> <td width="76" style="width:2.0cm;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:17.0pt"> 0603 </td> <td width="93" style="width:69.5pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:17.0pt"> RALEC </td> </tr> <tr style="height:17.0pt"> <td width="78" style="width:58.55pt;border:solid #009EB8 1.0pt;border-top:none; padding:0cm 0cm 0cm 0cm;height:17.0pt"> RSEN1 </td> <td width="45" style="width:33.6pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:17.0pt"> 1 </td> <td width="172" style="width:128.8pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:17.0pt"> RTT25R100FTE </td> <td width="87" style="width:65.05pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:17.0pt"> 0.1 </td> <td width="131" style="width:98.0pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:17.0pt"> Resistor </td> <td width="76" style="width:2.0cm;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:17.0pt"> 2512 </td> <td width="93" style="width:69.5pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:17.0pt"> RALEC </td> </tr> </table> </div>

21. Typical Applications

<h3>EVB Schematic Diagram</h3> <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq6059gj8/html-images/image029_en.png"><img border="0" width="604" height="572" id="Picture 3" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq6059gj8/html-images/image029_en.png" alt="Technical Document Image Preview" /></a> 1. The capacitance values of the input and output capacitors will influence the input and output voltage ripple. 2. MLCC capacitors have degrading capacitance at DC bias voltage, and especially smaller size MLCC capacitors will have much lower capacitance.

22. Measurement Results

<div> <table class="MsoNormalTable" border="1" cellspacing="0" cellpadding="0" width="680" style="border-collapse:collapse;border:none"> <tr style="page-break-inside:avoid;height:16.8pt"> <td width="339" style="width:254.25pt;border:solid #009EB8 1.0pt;background: #009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:16.8pt"> Sense Offset vs. Temperature </td> <td width="341" style="width:255.95pt;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:16.8pt"> Shunt Gain Error vs. Temperature </td> </tr> <tr style="page-break-inside:avoid;height:180.3pt"> <td width="339" valign="top" style="width:254.25pt;border:solid #009EB8 1.0pt; border-top:none;padding:0cm 5.4pt 0cm 5.4pt;height:180.3pt"> <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq6059gj8/html-images/image030_en.jpg"><img border="0" width="324" height="270" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq6059gj8/html-images/image030_en.jpg" alt="Technical Document Image Preview" /></a> </td> <td width="341" valign="top" style="width:255.95pt;border-top:none;border-left: none;border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:180.3pt"> <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq6059gj8/html-images/image031_en.jpg"><img border="0" width="327" height="264" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq6059gj8/html-images/image031_en.jpg" alt="Technical Document Image Preview" /></a> </td> </tr> <tr style="page-break-inside:avoid;height:16.8pt"> <td width="339" style="width:254.25pt;border:solid #009EB8 1.0pt;border-top: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:16.8pt"> Bus Voltage Offset vs. Temperature </td> <td width="341" style="width:255.95pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:16.8pt"> Bus Gain Error vs. Temperature </td> </tr> <tr style="page-break-inside:avoid;height:159.55pt"> <td width="339" valign="top" style="width:254.25pt;border:solid #009EB8 1.0pt; border-top:none;padding:0cm 5.4pt 0cm 5.4pt;height:159.55pt"> <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq6059gj8/html-images/image032_en.jpg"><img border="0" width="325" height="248" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq6059gj8/html-images/image032_en.jpg" alt="Technical Document Image Preview" /></a> </td> <td width="341" valign="top" style="width:255.95pt;border-top:none;border-left: none;border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:159.55pt"> <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq6059gj8/html-images/image033_en.jpg"><img border="0" width="327" height="243" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq6059gj8/html-images/image033_en.jpg" alt="Technical Document Image Preview" /></a> </td> </tr> </table> </div>

23. Evaluation Board Layout

Figure 27 and Figure 28 are RTQ6059GJ8 Evaluation Board layout. This board size is 50mm x 33.5mm and is constructed on two-layer PCB, outer layers with 2 oz. Cu and inner layers with 1 oz. Cu. <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq6059gj8/html-images/image034_en.jpg"><img border="0" width="491" height="332" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq6059gj8/html-images/image034_en.jpg" alt="一張含有電子產品, 圓形, 螢幕擷取畫面, 電子工程的圖片自動產生的描述" /></a> Figure 27. Top View <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq6059gj8/html-images/image035_en.jpg"><img border="0" width="491" height="331" id="圖片 1" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq6059gj8/html-images/image035_en.jpg" alt="一張含有文字, 螢幕擷取畫面, 圓形, 設計的圖片自動產生的描述" /></a> Figure 28. Bottom View
