The RT1652 is a wireless power receiver compliant with WPC Low Power v1.2 standard. The RT1652 integrates a synchronous full-bridge rectifier, a low dropout regulator, and a logic controller for control and communication. The device receives AC power from a WPC compatible wireless transmitter and provides output power up to 5W, which could be used as a power supply for a charger of mobile or consumer devices. The RT1652 output can also connect to Li+ battery directly, the direct charge mode features on running battery charger profile (PreCharge/CC/CV), to simplify the charging function design and improve the overall charging efficiency.<br /><br />The logic controller can support bi-direction channel communication including amplitude shift keying (ASK) modulation for power signal to the transmitter. The RT1652 provides Foreign Object Detection (FOD) function to meet the requirement after WPC V1.2. It communicates with the transmitter for the received power to determine if a foreign object is present within the magnetic interface. This provides a higher level of safety.<br /><br />The RT1652 provides a programmable dynamic rectifier voltage control function to improve power efficiency, a programmable power management control for maximum power delivery, a programmable current limit for suitable load setting, a programmable temperature setting with external NTC for thermoregulation, and proper protection functions such as UVLO, OVP, and OTP.

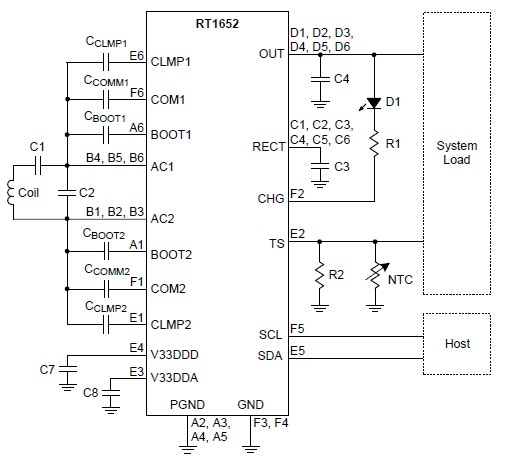

RT1652 Typical Circuit
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
scrollable-table
parameterTable
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
productFeature
<div class="spec-list"><ul class="lv1"><li>Wireless Power Receiver Compliant <ul class="lv2"> <li></li><li>WPC qi V1.3 </li></ul> </li><li>Battery Charger <ul class="lv2"> <li></li><li>Programmable 3V to 12V Out Regulation Voltage </li></ul> </li><li>Integrated Synchronous Rectifier Switch <ul class="lv2"> <li></li><li>Support Output Power Up to 5W </li><li>High Rectifier Efficiency Up to 96% </li><li>High System Efficiency Up to 80% </li><li>Programmable Loading for Synchronous Rectifier Operation </li></ul> </li><li>Programmable Dynamic Rectifier Voltage Control for Optimized Transient Response and Power Efficiency </li><li>Highly Accurate Received Power Calculation for FOD Function <ul class="lv2"> <li></li><li>12-bit ADC for Voltage/Current Measurement </li><li>Coil Power Loss Modeling for Optimized Compensation </li><li>Adaptive Power Offset Compensation </li></ul> </li><li>Embedded Logic Controller <ul class="lv2"> <li></li><li>272B MTP for Programmable </li></ul> </li><li>Support Bi-direction Channel Communication <ul class="lv2"> <li></li><li>ASK Modulation for Power Signal to Wireless Power Transmitter </li></ul> </li><li>Programmable Temperature Control </li><li>Programmable Charge Status Packet (0x05) </li><li>Support Alignment with Transmitter </li><li>Support Enable, Charge Complete and Fault Control Inputs </li><li>Receiver Controlled EPT Packet </li><li>Over-Current Limit </li><li>Over-Voltage Protection </li><li>Thermal Shutdown </li><li>CSP 2.8mm x 2.6mm 36B (Pitch = 0.4mm) </li><li>Low Profile (0.5mm Max.) </li></ul></div>
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
productImageSwitcher
RT1652 Ordering Information
normal-table
card-list
products
productTable
evbImageSwitcher
normal-table
card-list
evb
evbTable
orderingDetail
technical-documents
RT1652
technicalDocumentMultipleTable
design-tools
RT1652
designToolMultipleTable
32
56
56
56
rt-blue-800
i18n(text.application-title.text-content)
applicationTitle
withLine
24
24
24
24
<div class="spec-list"><ul class="lv1"><li>Cell Phones, Smart Phones, and Headsets </li><li>Wireless Power Embedded Battery Packs </li><li>Portable Media Players </li><li>Hand-held Devices </li><li>Wearable Devices </li></ul></div>
