The RT1738 is an USB Type-C interface over-voltage protection IC. The RT1738 protects the high voltage shorted to VBUS to adjacent pins of CC/SBU up to 28V due to USB Power Delivery (PD) allowing VBUS from 3.3 to 21V sourcing. The RT1738 is integrated the protection ESDs of IEC61000-4-2 with contact discharge ±8kV on CON_CC1/CON_CC2, D1/D2 and ±6kV on CON_SBU1/CON_SBU2. The surge immunity level of CON_CC1 /CON_CC2 is up to ±35V. Besides, the ultra-fast OVP response time of 60ns can protect the system side of application IC from damage. The RT1738 is available in a 3x3mm WQFN package.

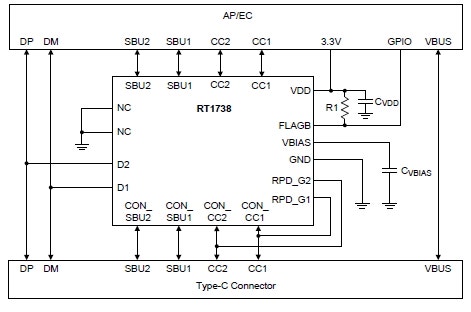

RT1738 Typical Circuit
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>4-Channels of short to VBUS Over-Voltage Protection (CON_CC1, CON_CC2, CON_SBU1, CON_SBU2) </li><li>IEC61000-4-2 Contact Discharge Protection <ul class="lv2"> <li></li><li>CON_CC1/CON_CC2 : ±8kV </li><li>D1/D2 : ±8kV </li><li>CON_SBU1/CON_SBU2 : ±6kV </li></ul> </li><li>High Absolute Maximum Ratings = 28V of CON_CC1, CON_CC2, CON_SBU1 and CON_SBU2 </li><li>60ns Ultra-Fast OVP Response Time of CC/SBU </li><li>255mΩ Ultra-Low R<sub>ON</sub> of CC Switch Typical </li><li>3.6Ω Low R<sub>ON</sub> of SBU Switch Typical </li><li>40μA Low Quiescent Current in Standby </li><li>High Bandwidth of 1.1GHz for SBU Switch </li><li>Dead Battery Support </li><li>20-Pin 3x3mm WQFN Package </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

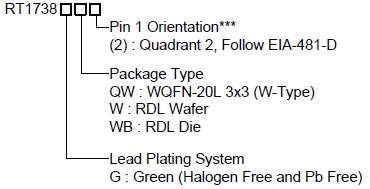

RT1738 Ordering Information
