The RT4731 is a highly integrated Boost, two LDOs (one channel for AVDD and the other channel for VOP) and inverting charge pump to generate positive and negative output voltage. The negative output voltages can be adjusted from -0.6V to -2.4V with 100mV per step by SWIRE interface protocol. The part maintains the highest efficiency by utilizing a -0.33x/-0.5x mode fractional charge pump with automatic mode transition. With its input voltage range of 2.9V to 4.8V, the RT4731 is optimized for products powered by single-cell battery and the output current up to 30mA. The RT4731 is available in UBGA-21B 1.82x3.23 package to achieve optimized solution for PCB space.</p>

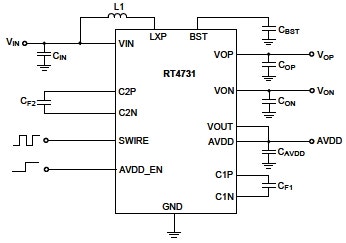

RT4731 Typical Circuit
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
scrollable-table
parameterTable
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
productFeature
<div class="spec-list"><ul class="lv1"><li>2.9V to 4.8V Supply Voltage Range </li><li>Single Wire Protocol </li><li>Fixed 4.6V Positive Voltage Output </li><li>Positive Output Voltage AVDD 2.8V </li><li>Negative Voltage Output from -0.6V to -2.4V per 0.1V by SWIRE Pin </li><li>Auto-Mode Transition of -0.33x/-0.5x Charge Pump </li><li>Built-in Soft-Start </li><li>30mA Maximum Output Current </li><li>Programmable Output Fast Discharge Function </li><li>High Impedance Output when IC Shutdown </li><li>UVLO, OCP, SCP, OTP Protection </li><li>Shutdown Current < 1μA </li><li>Available in 21-Ball UBGA Package </li></ul></div>
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
productImageSwitcher

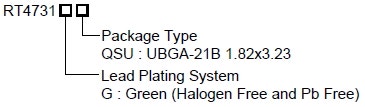

RT4731 Ordering Information
