The RT5028B is a highly-integrated low-power high-performance analog SOC with PMIC in one single chip designed for Industrial applications. The RT5028B includes four synchronous step-down DC-DC converters and eight LDOs for system power. The RT5028B also embeds one EEPROM (MTP) for setting sequence and timing etc. Additionally, the RT5028B PMIC also includes one IRQ report.

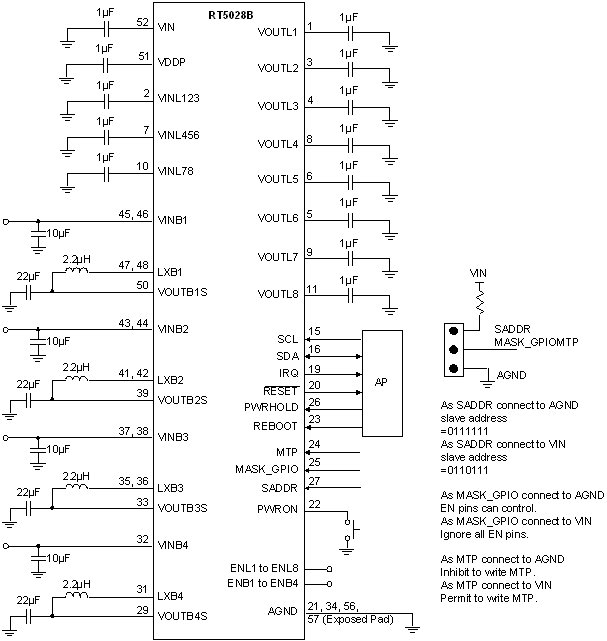

RT5028B Typical Circuit
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
scrollable-table
parameterTable
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
productFeature
<div class="spec-list"><ul class="lv1"><li>Input Voltage Operating Range is 3.3V to 5.5V </li><li>Step-Down Regulator : V<sub>IN</sub> Range is 3.3V to 5.5V <ul class="lv2"> <li></li><li>Max Current 2.5A/2.5A/1.6A/2A </li><li>Programmable Frequency from 500kHz to 2MHz </li><li>I<sup>2</sup>C Programmable Output Level </li><li>I<sup>2</sup>C Programmable Operation Mode (Force PWM or Auto PSM/PWM) </li><li>I<sup>2</sup>C Programmable Output Discharge Mode (Discharge or Flatting) </li></ul> </li><li>Linear Regulators : V<sub>IN</sub> Range is 2.5V to 5.5V <ul class="lv2"> <li></li><li>Max Current 0.3A </li><li>I<sup>2</sup>C Programmable Output Level </li></ul> </li><li>Embedded 32Bytes MTP for Factory Tuning <ul class="lv2"> <li></li><li>External MTP Pin for Write Protection </li></ul> </li><li>Sequence can be Controlled by I<sup>2</sup>C or Each EN Pins Defined by MASK_GPIO Pin </li><li>OT/UVP/VIN LV/POWRON Press Time Interrupt (IRQ). <ul class="lv2"> <li></li><li>I<sup>2</sup>C Control Interface : Support Fast Mode up to 400kb/s </li></ul> </li></ul></div>
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
productImageSwitcher
RT5028B Ordering Information
normal-table
card-list
products
productTable
evbImageSwitcher
normal-table
card-list
evb
evbTable
orderingDetail
technical-documents
RT5028B
technicalDocumentMultipleTable
design-tools
RT5028B
designToolMultipleTable
32
56
56
56
rt-blue-800
i18n(text.application-title.text-content)
applicationTitle
withLine
24
24
24
24
<div class="spec-list"><ul class="lv1"><li>Industrial </li></ul></div>
