The RT5508 is a mono BTL class-D amplifier with cutting-edge speaker protection algorithm. Also, a built-in DC-DC step-up converter is used to provide efficient power for class-D amplifier. I<sup>2</sup>S interface supports two different audio sources while a pair of auxiliary DATAI/O is used for stereo mode or pass-through application. Chip information including gain, speaker protection output or current sense is able to be monitored via DATAO through proper register setting. Speaker protection provides mechanical / thermal protection with accuracy of 10%/±10°C of rated limit.</p>

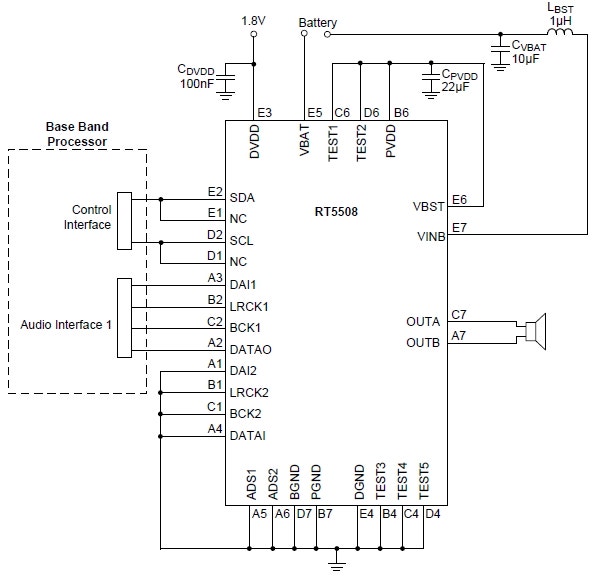

RT5508 Typical Circuit
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>Class-D Speaker AMP <ul class="lv2"> <li></li><li>1.6W Output Power @ 5.3V, 8Ω Load, THD < 1% </li><li>0/3/6/9/12/15dB Boost Gain </li><li>20μV Output Noise @ 0dB Gain </li></ul> </li><li>Boost Converter <ul class="lv2"> <li></li><li>Adaptive Boost For Speaker, Boost from Battery Supply Up to Programmed Voltage, Max 5.3V </li><li>Power Modes : Adaptive Boost, Fixed Boost, Bypass Mode </li><li>Switching Frequency 2MHz, Maximum Output Current 1A </li><li>Support CCM / DCM Compensation, Feedback ADC </li><li>Digital Part : Voltage Loop in Boost Mode </li></ul> </li><li>Digital <ul class="lv2"> <li></li><li>Digital Audio Interface Support I<sup>2</sup>S, Left-Justified, Right-Justified </li><li>I<sup>2</sup>S Sampling Rate Support up to 48kHz, 24-bit </li><li>Digital Filter, Digital Volume, Multi-Band DRC </li><li>Speaker Protection </li><li>Speaker Amplitude Estimation Accuracy : Error < 10% </li><li>Bl Calibration Function </li><li>Temperature Sensing </li><li>Speaker Temperature Estimation Accuracy : Error < ±10°C </li></ul> </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

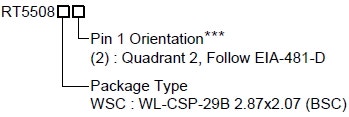

RT5508 Ordering Information
