The RT5713/14 is a high efficiency synchronous step-down converter featuring typ. 360nA quiescent current. It provides high efficiency at light load down to 10mA. Its input voltage range is from 2.2V to 5.5V. The RT5713/14 provides 2 level output voltages which can be programmed via the voltage select pin VSEL while delivering output current up to 0.5A/1A.<br /><br />The Hysteretic Constant-On-Time (HCOT) operation with internal compensation allow the transient response to be optimized over a wide range of loads and output capacitors. <br /><br />The RT5713/14 is a available in WL-CSP-6B 1.415x0.885 (BSC) and WDFN-6L 2x2 package.

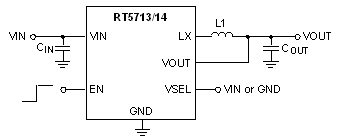

RT5713/RT5714 Typical Circuit
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>Input Voltage Range : 2.2V to 5.5V </li><li>Support Fixed Output Voltage 0.525V to 4V </li><li>2 Level Output Voltage Selection by VSEL Pin </li><li>Typ. 360nA Quiescent Current </li><li>PSM Operation </li><li>Internal Compensation </li><li>Output Voltage Discharge </li><li>Over-Current Protection </li><li>Over-Temperature Protection </li><li>Output Current <ul class="lv2"> <li></li><li>RT5713 400mA, Peak to 0.5A </li><li>RT5714 600mA, Peak to 1A </li></ul> </li><li>UVLO Protection </li><li>Online V<sub>OUT</sub> Dynamically-Voltage-Scaling </li><li>Tiny, 6-Pin, 0.35mm Pitch WL-CSP Package </li><li>Supports < 7mm<sup>2</sup> Solution Size </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

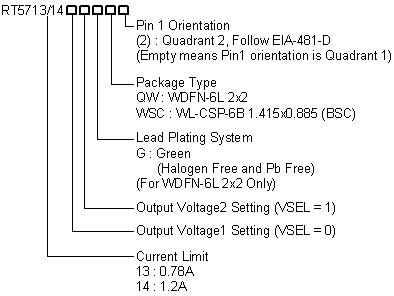

RT5713/RT5714 Ordering Information
