The RT5779A/B is a simple, easy-to-use, 5A synchronous step-down DC-DC converter with an input supply voltage range of 2.5V to 6V. The device build-in an accurate 0.6V (±1.5%) reference voltage and can operate in 100% duty cycle as a very low dropout voltage regulator. the RT5779A/B integrates low R<sub>DS(ON)</sub> power MOSFETs to achieve high efficiency and is available in TSOT-23-8 (FC) package. The RT5779A/B adopts Advanced Constant On-Time (ACOT<sup>®</sup>) control architecture to provide an ultrafast transient response with few external components and to operate in nearly constant switching frequency over the line, load, and output voltage range. The RT5779A/B is designed to operate at 1.5MHz fixed frequency. While the RT5779A automatically enters power saving mode (PSM) operation at light load to maintain high efficiency. RT5779B operates in Forced PWM over the loading range, that helps meet tight voltage regulation accuracy requirements. The RT5779A/B senses both FETs current for a robust over-current protection. It prevents the device from the catastrophic damage in output short circuit, over current or inductor saturation. The individual enable control input and power good indicator provides flexible system power sequence control a built-in soft-start function prevents inrush current during start-up. The device also includes input under-voltage lockout, output under-voltage protection, and over-temperature protection (thermal shutdown) to provide safe and smooth operation in all operating conditions.

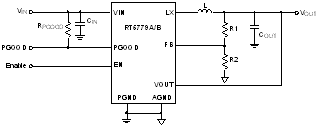

RT5779A/RT5779B Typical Circuit
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
scrollable-table
parameterTable
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
productFeature
<div class="spec-list"><ul class="lv1"><li>5A Converter With Built-In 20mΩ/18mΩ Low R<sub>DS(ON)</sub> Power FETs </li><li>Input Supply Voltage Range : 2.5V to 6V </li><li>Output Voltage Range : 0.6V to 6V </li><li>Operates Up to 100% Duty Cycle </li><li>Advanced Constant On-Time (ACOT<sup>®</sup>) Control <ul class="lv2"> <li></li><li>Ultrafast Transient Response </li><li>No Needs For External Compensations </li><li>Optimized for Low-ESR Ceramic Output Capacitors </li></ul> </li><li>0.6V ±1.5% High-Accuracy Feedback Reference Voltage </li><li>35mA Operation Quiescent Current (RT5779A) </li><li>Robust Over-Current Protection for Both FETs </li><li>Optional for Operation Modes : <ul class="lv2"> <li></li><li>Power Saving Mode (PSM) (RT5779A) </li><li>Forced PWM Mode (RT5779B) </li></ul> </li><li>Fixed Switching Frequency : 1.5MHz </li><li>Monotonic Start-Up for Pre-Biased Output </li><li>Individual Enable Control Input </li><li>Power Good Indicator </li><li>Built-In Internally Fixed Soft-Start (Typ. 1.5ms) </li><li>100% Duty Cycle Mode </li><li>Internal Output Discharge </li><li>Input Under-Voltage Lockout (UVLO) </li><li>Output Under-Voltage Protection (UVP) with Hiccup Mode </li><li>Over-Temperature Protection </li><li>Available in TSOT-23-8 (FC) Package </li></ul></div>
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
productImageSwitcher

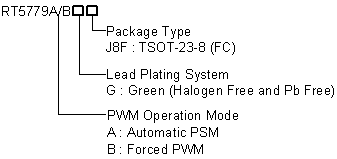

RT5779A/RT5779B Ordering Information
