The RT6160C is a high-efficiency, single inductor, Advanced Constant On-Time (ACOT<sup>®</sup>) monolithic synchronous Buck-Boost converter that can deliver up to 3A output current from 2.2V to 5.5V and well regulate to the digitally programmable output voltage from 2.025V to 5.2V, which is suitable for wide input supply range applications, regardless of input voltage is lower, higher than or even equal to the output voltage. The ACOT<sup>®</sup> control architecture features outstanding line/load transient response, seamless transition between buck and boost modes, provides stable operation with small ceramic output capacitors and without complicated external compensation.<br /><br />The RT6160C features I<sup>2</sup>C interface, which allows programmable output voltage, ultra-sonic mode control, soft-start slew-rate adjusted and device status monitoring. The target output voltage can also be switched through external VSEL pin to perform dynamically-voltage-scaling (DVS), and the ramp-up slew-rate and ramp mode of DVS can also be set by setting the related registers.<br /><br />The RT6160C operates in automatic PFM and typical 2μA low quiescent current design that maintains high efficiency during light load operation. At higher loads, the device automatically switches to a 2.2MHz fixed frequency control, which is easily smoothed-out he switching ripple voltage by small package filtering elements. And the integrated low R<sub>DS(ON)</sub> power MOSFETs features excellent efficiency during heavy load conditions. In shutdown mode, the supply current is typically 0.1μA, excellent in reducing power consumption. PFM mode can be disabled if fixed frequency is desired. The RT6160C is available in a small WL-CSP-15B 1.4x2.3 (BSC) package.

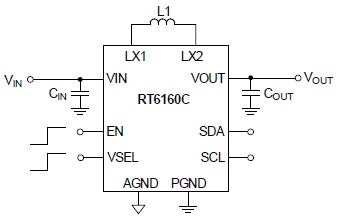

RT6160C Typical Circuit
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
scrollable-table
parameterTable
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
productFeature
<div class="spec-list"><ul class="lv1"><li>Automatic Seamless Mode Transition with Real Buck, Buck-Boost and Boost Operation </li><li>Input Voltage Range: 2.2V to 5.5V </li><li>Output Voltage Range: 2.025V to 5.2V with Digitally Programmable (25mV/steps) </li><li>Default Output Voltage Setting: <ul class="lv2"> <li></li><li>V<sub>OUT</sub> = 3.2V at VSEL = L </li><li>V<sub>OUT</sub> = 3.45V at VSEL = H </li></ul> </li><li>Maximum Continuous Output Current: <ul class="lv2"> <li></li><li>Up to 2.5A for V<sub>IN</sub> ≥ 2.5V, V<sub>OUT</sub> = 3.3V </li><li>Up to 3A for V<sub>IN</sub> ≥ 3V, V<sub>OUT</sub> = 3.3V </li><li>Up to 2A for V<sub>IN</sub> ≥ 3V, V<sub>OUT</sub> = 5V </li></ul> </li><li>Up to 95% Efficiency (V<sub>IN</sub> = 3.8V, V<sub>OUT</sub> = 3.3V, I<sub>LOAD</sub> = 1A) </li><li>1μA Non-Switching Low Quiescent Current </li><li>I<sup>2</sup>C Interface (Up to 1MHz) </li><li>Allows Dynamically-Voltage-Scaling Control </li><li>Automatic PFM Mode and Forced PWM Mode Selection </li><li>Ultra-Sonic Mode Operation </li><li>OCP, UVLO, OTP, OVP, UVP Protected Function for Robustness </li><li>15-Ball WL-CSP Package </li></ul></div>
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
productImageSwitcher
RT6160C Ordering Information
normal-table
card-list
products
productTable
evbImageSwitcher
normal-table
card-list
evb
evbTable
orderingDetail
technical-documents
RT6160C
technicalDocumentMultipleTable
design-tools
RT6160C
designToolMultipleTable
32
56
56
56
rt-blue-800
i18n(text.application-title.text-content)
applicationTitle
withLine
24
24
24
24
<div class="spec-list"><ul class="lv1"><li>Smartphones and Tablets </li><li>Portable Devices </li><li>Wearable Devices </li><li>System Pre-Regulators </li><li>Point-of-Load Regulators </li><li>Wifi Module </li><li>USB VCONN Supplies </li><li>TWS Earbud Chargers </li></ul></div>
