The RT6191A is a Buck controller designed for USB power delivery (USB PD). It operates with wide input voltage range from 4.5V to 36V, and the output voltage is programmable from 3V to 36V. The RT6191A implements peak current mode control mechanism with the programmable constant voltage (CV) and constant current (CC) output to support USB-PD 3.0 SPR mode and 28V of USB-PD 3.1 EPR mode. It also has built-in charge pumps for driving external low-cost N-MOSFETs to control the power path. With an I<sup>2</sup>C compatible interface, the RT6191A supports many programmable functions including CV/CC output, switching frequency, and cable voltage drop compensation. Moreover, the RT6191A integrates full protections including input UVLO, over/under-voltage protection, cycle-by-cycle current limit, short protection, and over-temperature protection. The RT6191A is available in a WQFN-40L 5x5 package.

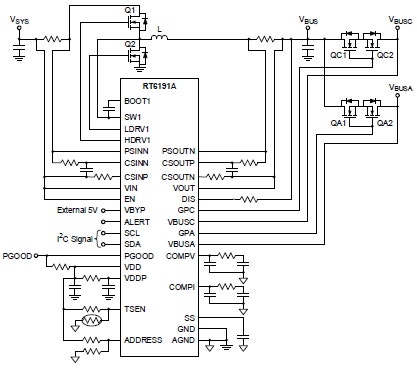

RT6191A Typical Circuit
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
scrollable-table
parameterTable
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
productFeature
<div class="spec-list"><ul class="lv1"><li>Support USB-PD 3.0 SPR Mode and 28V of USB-PD 3.1 EPR Mode </li><li>Integrated Buck Controller : <ul class="lv2"> <li></li><li>Wide Input Voltage Range : 4.5V to 36V </li><li>Wide Output Voltage Range : 3V to 36V </li><li>Peak Current Mode Control </li><li>Programmable Switching Frequency (250kHz to 1MHz) </li><li>Power Saving Mode Enables Higher Light Load Efficiency </li></ul> </li><li>AnyPower<sup>TM</sup> for Constant Voltage (12.5mV/step, Typ.) and Constant Current (in 9-Bit Resolution) Output Settings </li><li>Embedded 2nd OCP Function </li><li>Bypass Mode </li><li>I<sup>2</sup>C Compatible Interface </li><li>Adjustable Soft-Start Time </li><li>Programmable Cable Voltage Drop Compensation </li><li>Built-in Bleeders for Quick VBUS Discharge </li><li>Power Good Indicator </li><li>Full Protection with UVLO, OVP, UVP, OCP, Cycle-by-Cycle Current Limit and OTP </li><li>WQFN-40L 5x5 Package </li></ul></div>
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
productImageSwitcher

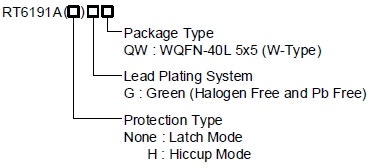

RT6191A Ordering Information
