8
8
8
4
1rem
1rem
1rem
1rem
rt-dark-800
headline-3
false
true
basicInfoTitle
12
12
12
12
left
buttonParametricSearch
text-with-icon
i18n(button-item.parametric-search.button-label)
i18n(button-item.parametric-search.button-link)
_self
true
buttonDatasheet
text-with-icon
secondary
i18n(button-item.datasheet.button-label)
i18n(button-item.datasheet.button-link)
_self
true
buttonContactUs
text-with-icon
secondary
i18n(button-item.contact-us.button-label)
i18n(button-item.contact-us.button-link)
_self
true
36
24
24
12
rt-dark-800
basicInfoSubtitle
basicInfoImageSwitcher
The RT6210 is a 80V, 500mA, 350kHz, high-efficiency, synchronous step-down DC-DC converter with an input-voltage range of 5.2V to 80V and a programmable output-voltage range of 0.8V to 72V. It features current-mode control to simplify external compensation and to optimize transient response with a wide range of inductors and output capacitors. High efficiency can be achieved through integrated N-MOSFETs, and pulse-skipping mode at light loads. With EN pin, power-up sequence can be more flexible and shutdown quiescent current can be reduced to < 3μA. The RT6210 features cycle-by-cycle current limit for over-current protection against short-circuit outputs, and user-programmable soft-start time to prevent inrush current during startup. It also includes input under-voltage lockout, output under-voltage, and thermal shutdown protection to provide safe and smooth operation in all operating conditions. </p>The RT6210 is available in the SOP-8 (Exposed pad) package.</p>

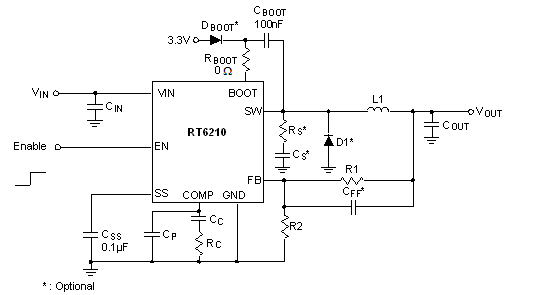

RT6210 Typical Circuit
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
scrollable-table
parameterTable
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
productFeature
<div class="spec-list"><ul class="lv1"><li>0.8V Feedback Reference Voltage with ±1.5% Accuracy </li><li>Wide Input Voltage Range : 5.2V to 80V </li><li>Output Current : 500mA </li><li>Integrated N-MOSFETs </li><li>Current-Mode Control </li><li>Fixed Switching Frequency : 350kHz </li><li>Programmable Output Voltage : 0.8V to 72V </li><li>Low < 3μA Shutdown Quiescent Current </li><li>Up to 92% Efficiency </li><li>Pulse-Skipping Mode for Light-Load Efficiency </li><li>Programmable Soft-Start Time </li><li>Cycle-by-Cycle Current Limit Protection </li><li>Input Under-Voltage Lockout, Output Under-Voltage and Thermal Shutdown Protection </li></ul></div>
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
productImageSwitcher

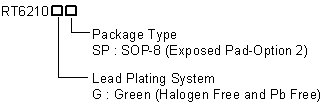

RT6210 Ordering Information
normal-table
card-list
products
productTable
evbImageSwitcher
normal-table
card-list
evb
evbTable
orderingDetail
technical-documents
RT6210
technicalDocumentMultipleTable
design-tools
RT6210
designToolMultipleTable
32
56
56
56
rt-blue-800
i18n(text.application-title.text-content)
applicationTitle
withLine
24
24
24
24
<div class="spec-list"><ul class="lv1"><li>4-20mA Loop-Powered Sensors </li><li>OBD-II Port Power Supplies </li><li>Low-Power Standby or Bias Voltage Supplies </li><li>Industrial Process Control, Metering, and Security Systems </li><li>High-Voltage LDO Replacement </li><li>Telecommunications Systems </li><li>Commercial Vehicle Power Supplies </li><li>General Purpose Wide Input Voltage Regulation </li></ul></div>
applicationContent
35
35
35
35
keywordList
56
56
56
56
rt-blue-800
i18n(text.support-card-title.text-content)
supportCardTitle
withLine
40
40
40
24
supportCards
i18n(support-card-item.technical-support.title)
i18n(support-card-item.technical-support.description)
i18n(support-card-item.technical-support.learn-more-text)
i18n(support-card-item.technical-support.url)
technicalSupportCard
i18n(support-card-item.ordering.title)
i18n(support-card-item.ordering.description)
i18n(support-card-item.ordering.learn-more-text)
i18n(support-card-item.ordering.url)
orderingSupportCard
i18n(support-card-item.sales.title)
i18n(support-card-item.sales.description)
i18n(support-card-item.sales.learn-more-text)
i18n(support-card-item.sales.url)
salesSupportCard
56
56
56
32
