The RT6215A/B is a simple, easy-to-use, 2A synchronous step-down DC-DC converter with an input supply voltage range of 4.5V to 24V. The device build-in an accurate 0.791V reference voltage and integrates low R<sub>DS(ON)</sub> power MOSFETs to achieve high efficiency in a SOT23-8 package. The RT6215A/B adopts Advanced Constant On-Time (ACOT<sup>TM</sup>) control architecture to provide an ultrafast transient response with few external components and to operate in nearly constant switching frequency over the line, load, and output voltage range. The RT6215A operates in automatic PSM that maintains high efficiency during light load operation. The RT6215B operates in Forced PWM that helps meet tight voltage regulation accuracy requirements. </p>The RT6215A/B senses both FETs current for a robust over-current protection. It features cycle-by-cycle current limit protection and prevent the device from the catastrophic damage in output short circuit, over current or inductor saturation. An externally adjustable soft-start function prevents inrush current during start-up. The device also includes input under-voltage lockout, output under-voltage protection, and over-temperature protection (thermal shutdown) to provide safe and smooth operation in all operating conditions. The RT6215A/B is offered in a TSOT-23-8(FC) package.</p>

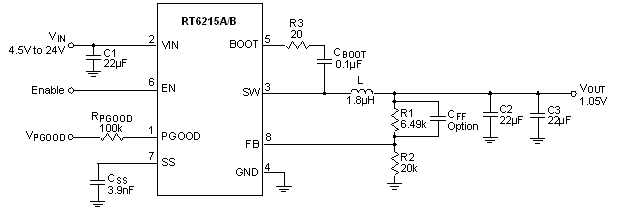

RT6215A/RT6215B Typical Circuit
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
scrollable-table
parameterTable
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
productFeature
<div class="spec-list"><ul class="lv1"><li>2A Converter With Built-In 100mΩ/85mΩ Low R<sub>DS(ON)</sub> Power FETs </li><li>Input Supply Voltage Range : 4.5V to 24V </li><li>Output Voltage Range : 0.791V to 5V </li><li>Advanced Constant On-Time (ACOT<sup>TM</sup>) Control </li><li>Ultrafast Transient Response </li><li>No Needs For External Compensations </li><li>Optimized for Low-ESR Ceramic Output Capacitors </li><li>0.791V ±1.5% High-Accuracy Feedback Reference Voltage </li><li>Low Quiescent Current (170μA typ.) </li><li>Both HS/LS FETs Protection for Robust Over-Current Protection </li><li>Optional for Operation Modes : <ul class="lv2"> <li></li><li>Power Saving Mode (PSM) at Light Load (RT6215A) </li><li>Forced PWM Mode (RT6215B) </li></ul> </li><li>Light-load V<sub>OUT</sub> Ripple Reduction Technology in PSM </li><li>Fixed Switching Frequency : 500kHz </li><li>Externally Adjustable Soft-Start </li><li>Monotonic Start-Up for Pre-Biased Output </li><li>Input Under-Voltage Lockout (UVLO) </li><li>Output Under-Voltage Protection (UVP) with Hiccup Mode </li><li>Power Good Indication </li><li>Enable Control </li><li>Available In TSOT-23-8 (FC) Package </li></ul></div>
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
productImageSwitcher

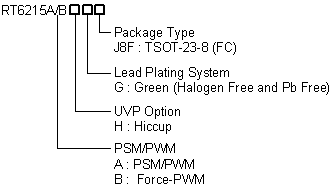

RT6215A/RT6215B Ordering Information
normal-table
card-list
products
productTable
evbImageSwitcher
normal-table
card-list
evb
evbTable
orderingDetail
technical-documents
RT6215A/RT6215B
technicalDocumentMultipleTable
design-tools
RT6215A/RT6215B
designToolMultipleTable
32
56
56
56
rt-blue-800
i18n(text.application-title.text-content)
applicationTitle
withLine
24
24
24
24
<div class="spec-list"><ul class="lv1"><li>Set Top Box </li><li>Portable TV </li><li>Access Point Router </li><li>DSL Modem </li><li>LCD TV </li></ul></div>
