The RT6245 is a high-performance, synchronous step-down converter that delivers up to 14A output current with an input supply voltage range of 4.5V to 17V. The output voltage can be programmable from 0.4375V to 1.3875V with I<sup>2</sup>C controlled 7-Bits VID. </p>The RT6245 adopts Advanced Constant On-Time (ACOT<sup>®</sup> ) control architecture that provides ultrafast transient response and further reduces the external-component count. In steady states, the ACOT<sup>®</sup> operates in nearly constant switching frequency over line, load and output voltage ranges and makes the EMI filter design easier. </p>The RT6245A offers automatic PSM that maintains high efficiency during light load operation. </p>The device offers a variety of functions for more design flexibility. The switching frequency, current limit level and V<sub>OUT</sub> slew rate are selectable via I<sup>2</sup>C. Independent enable control input pin and power good indicator are also provided for easy sequence control. Besides, the designers can also command the device to be enabled or shutdown via the I<sup>2</sup>C interface. </p>To control the inrush current during the startup, the device provides a programmable soft start-up by an external capacitor connected to the SS pin. Fully protection features are also integrated in the device including the cycle-by-cycle current limit control, OVP, UVP, input UVLO and OTP. </p>The RT6245 is available in a thermally enhanced VQFN-19L 3.5x3.5 (FC) package.</p>

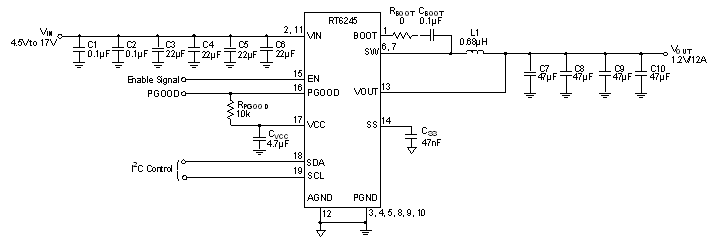

RT6245 Typical Circuit
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
scrollable-table
parameterTable
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
productFeature
<div class="spec-list"><ul class="lv1"><li>VID Control Range via I<sup>2</sup>C Compatible Interface : 0.4375V to 1.3875V in 12.5mV Steps </li><li>4.5V to 17V Input Voltage Range </li><li>14A Output Current Only Support 400kHz </li><li>Integrated 9.8mΩ/4.5mΩ MOSFETs </li><li>Stable with Ceramic Output Capacitor </li><li>ACOT<sup>®</sup> Control for Fast Transient Response </li><li>Selectable Switching Frequency (400kHz/800kHz/1200kHz) </li><li>Adjustable Current Limit Level </li><li>Adjustable Thermal Shutdown Level </li><li>Programmable Soft-Start Time with a Default 2ms </li><li>Monotonic Start-Up into Pre-Biased Outputs </li><li>19-Lead VQFN (FC) Package </li></ul></div>
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
productImageSwitcher

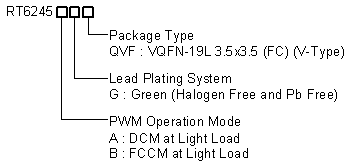

RT6245 Ordering Information
