The RT6250A/B is a simple, easy-to-use, 10A synchronous step-down DC-DC converter with an input supply voltage range of 4.5V to 18V. The device build-in an accurate 0.6V reference voltage and integrates low R<sub>DS(ON)</sub> power MOSFETs to achieve high efficiency in a UQFN-12HL 3x3 package. The RT6250A/B adopts Advanced Constant On-Time (ACOT<sup>®</sup>) control architecture to provide an ultrafast transient response with few external components and to operate in nearly constant switching frequency over the line, load, and output voltage range. The RT6250A/B operates in automatic PSM that maintains high efficiency during light load operation. The RT6250A/B operates in Forced PWM that helps meet tight voltage regulation accuracy requirements. The RT6250A/B senses both FETs current for a robust over-current protection. It features cycle-by-cycle current limit protection and prevent the device from the catastrophic damage in output short circuit, over current or inductor saturation. A built-in soft-start function prevents inrush current during start-up. The device also includes input under-voltage lockout, output under-voltage protection, over-voltage protection, and over-temperature protection (thermal shutdown) to provide safe and smooth operation in all operating conditions. The RT6250A/B is offered in a UQFN-12HL 3x3 (FC) package.

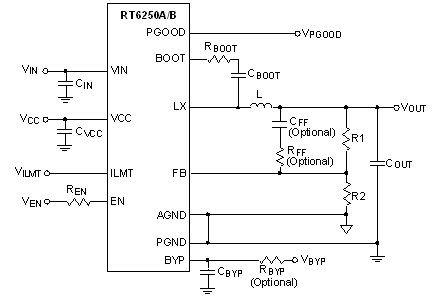

RT6250A/RT6250B Typical Circuit
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
scrollable-table
parameterTable
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
productFeature
<div class="spec-list"><ul class="lv1"><li>10A Converter With Built-in 20mΩ/10mΩ Low R<sub>DS(ON)</sub> Power FETs </li><li>Input Supply Voltage Range : 4.5V to 18V </li><li>Output Voltage Range : 0.6V to 6V </li><li>Advanced Constant On-Time (ACOT<sup>®</sup>) Control <ul class="lv2"> <li></li><li>Ultrafast Transient Response </li><li>No Needs for External Compensations </li><li>Optimized for Low-ESR Ceramic Output Capacitors </li></ul> </li><li>0.6V ±1% High-Accuracy Feedback Reference Voltage </li><li>Optional for Operation Modes : <ul class="lv2"> <li></li><li>Power Saving Mode (PSM) (RT6250A) </li><li>Forced PWM Mode (RT6250B) </li></ul> </li><li>Fixed Switching Frequency : 500kHz </li><li>Built-in Internally Fixed Soft-Start (Typ. 0.4ms) </li><li>Input Under-Voltage Lockout (UVLO) </li><li>Output Under-Voltage Protection (UVP) with Hiccup Mode </li><li>Output Over-Voltage Protection (OVP) with Auto-Recovery Mode </li><li>Ultrasonic Mode (USM) for RT6250A </li><li>Available in UQFN-12HL 3x3 (FC) Package </li></ul></div>
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
productImageSwitcher

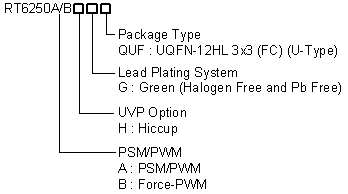

RT6250A/RT6250B Ordering Information
normal-table
card-list
products
productTable
evbImageSwitcher
normal-table
card-list
evb
evbTable
orderingDetail
technical-documents
RT6250A/RT6250B
technicalDocumentMultipleTable
design-tools
RT6250A/RT6250B
designToolMultipleTable
32
56
56
56
rt-blue-800
i18n(text.application-title.text-content)
applicationTitle
withLine
24
24
24
24
<div class="spec-list"><ul class="lv1"><li>Industrial and Commercial Low Power Systems </li><li>Computer Peripherals </li><li>LCD Monitors and TVs </li><li>Green Electronics/Appliances </li><li>Point of Load Regulation for High-Performance DSPs, FPGAs, and ASICs </li><li>Networking Communication </li></ul></div>
