The RT6372A/B is a simple, easy-to-use, 2A synchronous step-down DC-DC converter with an input supply voltage range of 4.5V to 17V. The device possesses an accurate reference voltage and integrates low R<sub>DS(ON)</sub> power MOSFETs to achieve high efficiency. </p>The RT6372A/B adopts Advanced Constant On-Time (ACOT<sup>®</sup>) control architecture to provide an ultrafast transient response with few external components and to operate in nearly constant switching frequency over the line, load, and output voltage range. The RT6372A operates in automatic PSM that maintains high efficiency during light load operation. The RT6372B operates in Forced PWM that helps meet tight voltage regulation accuracy requirements. </p>The RT6372A/B senses both FETs current for a robust over-current protection (OCP). The device features cycle-by-cycle current limit protection to prevent the device from the catastrophic damage in output short circuit, over-current or inductor saturation conditions. A built-in soft-start function prevents inrush current during start-up. The device also includes input under-voltage lockout, output under-voltage protection, and over-temperature protection (OTP) to provide safe and smooth operation in all operating conditions.</p>

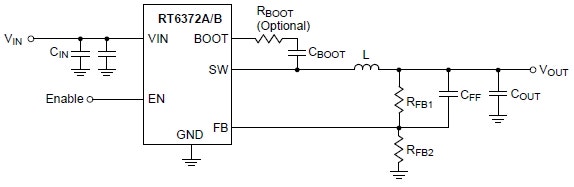

RT6372A/RT6372B Typical Circuit
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
scrollable-table
parameterTable
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
productFeature
<div class="spec-list"><ul class="lv1"><li>2A Converter Integrated 140mΩ and 84mΩ FETs </li><li>Input Supply Voltage Range : 4.5V to 17V </li><li>Output Voltage Range : 0.6V to 7V </li><li>Advanced Constant On-Time (ACOT®) Control <ul class="lv2"> <li></li><li>Ultrafast Transient Response </li><li>No Needs for External Compensations </li><li>Optimized for Low-ESR Ceramic Output Capacitors </li></ul> </li><li>High Accuracy Feedback Reference Voltage : Typ. ± 1% </li><li>Optional for Operation Modes : <ul class="lv2"> <li></li><li>RT6372A : Power Saving Mode (PSM) </li><li>RT6372B : Forced PWM Mode </li></ul> </li><li>Fixed Switching Frequency : 1.4MHz </li><li>Enable Control and Internally Fixed Soft-Start with typ. 1ms </li><li>Input Under-Voltage Lockout (UVLO) </li><li>Protection Function <ul class="lv2"> <li></li><li>Output Under-Voltage Protection (UVP) with Hiccup Mode </li><li>High- / Low-side MOSFET OCP and OTP Function </li></ul> </li><li>RoHS Compliant and Halogen Free </li></ul></div>
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
productImageSwitcher

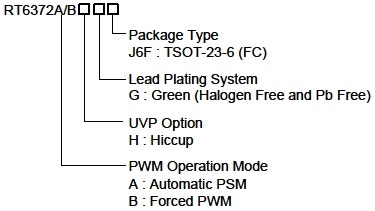

RT6372A/RT6372B Ordering Information
normal-table
card-list
products
productTable
evbImageSwitcher
normal-table
card-list
evb
evbTable
orderingDetail
technical-documents
RT6372A/RT6372B
technicalDocumentMultipleTable
design-tools
RT6372A/RT6372B
designToolMultipleTable
32
56
56
56
rt-blue-800
i18n(text.application-title.text-content)
applicationTitle
withLine
24
24
24
24
<div class="spec-list"><ul class="lv1"><li>Set-Top Boxes </li><li>LCD TVs </li><li>Home Networking Devices </li><li>Surveillance </li><li>General Purpose </li></ul></div>
