The RT6908 provides a complete set of programmable multi-functional power solution for TFT LCD panel. The RT6908 contains a step-up converter for main power and step-down controllers to provide the logic voltages for the system. Moreover, a positive charge pump regulator provides the adjustable gate-high voltage, V<sub>GH</sub>; a negative charge pump regulator provides the gate-low voltage, V<sub>GL</sub>. AVDD, V<sub>GH</sub> and V<sub>GL</sub> outputs and power sequence can be programmable through I<sup>2</sup>C interface. With its high current capabilities, the device is ideal for large screen monitor panels and LCD TV applications with 12V supply voltage. The RT6908 is available in a WQFN-40L 5x5 package.

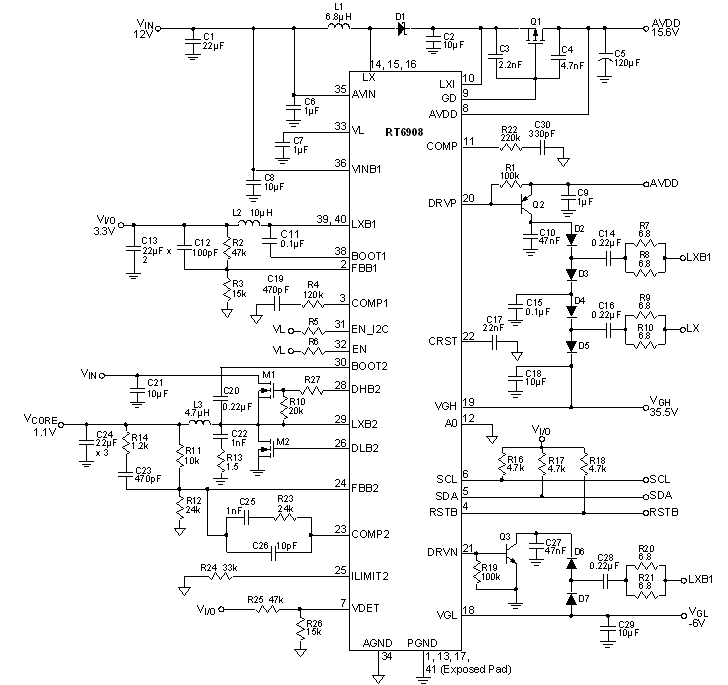

RT6908 Typical Circuit
