The RT7203BT is a programmable controller with integration of super charge protocols, and the built-in feedback compensation. An internal MCU is designed in to handle various proprietary protocols via the D+/D- interface. <br /><br />This controller is a specific design with high integration for off-line AC-DC converters possessing high power density. The RT7203BT integrates a constant voltage loop, a constant current loop and the built-in compensation in feedback control to better regulate the design, this IC not only possesses a feature of component saving via its feedback compensation, but also provides an enhanced transient response and safety protections via the integration of diverse functions.<br /><br />In applications of high precision control, dual operational amplifiers are adopted in the Digital-to- Analog Converter (DAC) to provide reference voltages used for regulation of voltage loop and current loop in programming the constant voltage (CV) and the constant current (CC), respectively.

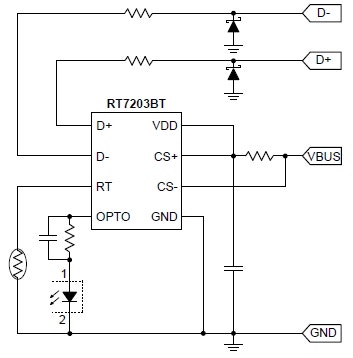

RT7203BT Typical Circuit
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
scrollable-table
parameterTable
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
productFeature
<div class="spec-list"><ul class="lv1"><li>Protocol Support <ul class="lv2"> <li></li><li>Proprietary Protocols </li></ul> </li><li>Highly Integrated <ul class="lv2"> <li></li><li>Suited for 3V to 13V VDD Range </li><li>Embedded MCU with a Mask ROM of 16kB, an OTP-ROM of 16kB, and an SRAM of 1.5kB </li><li>Built-In Shunt Regulators for Constant Voltage and Constant Current Control </li><li>Built-In Feedback Compensation </li><li>Built-In Temperature Sensing </li><li>Built-In 10-bit Analog-to-Digital Converter </li><li>VDD Pin for Quick Discharge of Output Capacitor </li><li>< 3.3mA Operating Current in Normal Mode </li><li>< 1.5mA Operating Current in Idle Mode </li><li>< 900μA Operating Current in Green Mode </li></ul> </li><li>Protection <ul class="lv2"> <li></li><li>Adaptive Output Overvoltage Protection </li><li>Adaptive Undervoltage Protection </li><li>DP/DM Overvoltage Protection </li><li>RT Overvoltage Protection </li><li>Firmware-Programmable Constant Current Protection </li><li>Firmware-Programmable Overcurrent Protection </li><li>Firmware-Programmable Over-Temperature Protection </li></ul> </li></ul></div>
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
productImageSwitcher

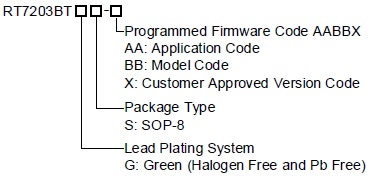

RT7203BT Ordering Information
