The RT7206A is a programmable controller with a high integration of the internal feedback compensation, blocking N-MOSFETs and the current sense. An internal MCU is designed to handle various proprietary protocols via the D+/D- interface and support the Type-C USB PD via the CC1/CC2 pins. This controller is a specific design with high integration for off-line AC-DC converters to possess the high power density. The RT7206A integrates a constant voltage loop, a constant current loop and the built-in compensation in the feedback control so as to regulate output voltage and current. With the proprietary design, this controller not only possesses the feature of component-count saving via the built-in feedback compensation, but also provides the performance of enhanced transient response and safety level via the integration of diverse functions and protections. In applications requiring high-precision control, a dual operational amplifier is adopted in the Digital-to-Analog Converter (DAC) to serve reference voltages used for regulation of voltage loop and current loop in programming the constant voltage (CV) and the constant current (CC).

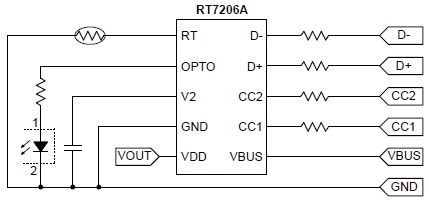

RT7206A Typical Circuit
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
scrollable-table
parameterTable
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
productFeature
<div class="spec-list"><ul class="lv1"><li>Protocol Support <ul class="lv2"> <li></li><li>USB PD2.0/PD3.0 and PPS </li><li>Proprietary Protocols </li></ul> </li><li>Highly Integrated <ul class="lv2"> <li></li><li>Suited for 3V to 13V VDD Range </li><li>Embedded MCU with an Mask ROM of 32kB, an OTP-ROM of 8kB, and an SRAM of 1.5kB </li><li>Built-in Blocking N-MOSFET and Current Sense </li><li>Built-in Shunt Regulators for Constant Voltage and Constant Current Control </li><li>Built-in Internal Feedback Compensation </li><li>Programmable Linear Cable Compensation </li><li>CC Tolerance < 100mA </li><li>VDD Pin for Quick Discharge of Output Capacitor </li><li>< 5mA Operating Current in Normal Mode </li><li>< 1.5mA Operating Current in Sleep Mode </li><li>< 900μA Operating Current in Green Mode </li></ul> </li><li>Protection <ul class="lv2"> <li></li><li>Adaptive Output Over-Voltage Protection </li><li>Adaptive Under-Voltage Protection </li><li>CC1/CC2/D+/D-/RT Over-Voltage Protection </li><li>Firmware-Programmable Over-Current Protection </li><li>Firmware-Programmable Over-Temperature Protection </li></ul> </li></ul></div>
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
productImageSwitcher

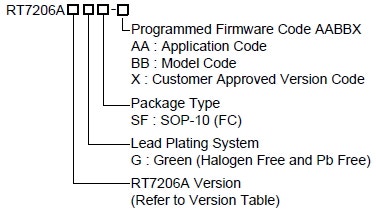

RT7206A Ordering Information
