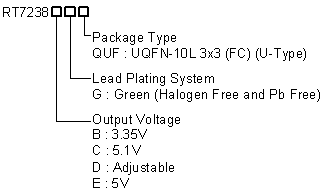

The RT7238B/C/D/E is an advanced constant on-time (ACOT<sup>TM</sup>) mode synchronous step-down converter. The main control loop of RT7238B/C/D/E using an advanced constant on-time (ACOT<sup>TM</sup>) mode control which provides a very fast transient response. The RT7238B/C/D/E operates from 8V to 23V input voltage. For the RT7238D, the output voltage can be adjusted between 0.6V to 5V.

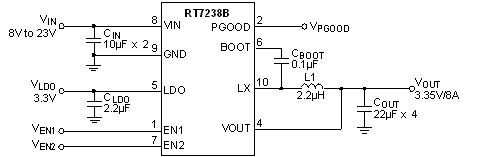

RT7238B/RT7238C/RT7238D/RT7238E Typical Circuit
