The RT7249 is a high efficiency, monolithic synchronous step-down DC/DC converter with a power switch. The Buck converter can deliver up to 3A output current from 4.5V to 18V input supply. The RT7249's current-mode architecture and external compensation allow the transient response to be optimized over a wide input range and loads. Cycle-by-cycle current limit provides protections against shorted output and soft-start eliminates input current surge during start-up. The RT7249 also provides under-voltage protection and thermal shutdown. PWM frequency is adjustable by the ROSC pin and Power Switch current limit can also be adjusted by the RLIM pin. The low current (<3μA) in shutdown mode provides output disconnection, enabling easy power management in battery-powered systems. The RT7249 is available in the WQFN-16L 4x4 package.

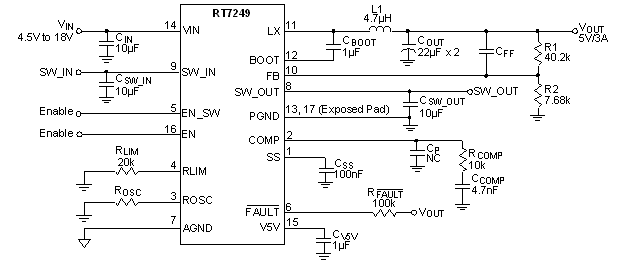

RT7249 Typical Circuit
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
scrollable-table
parameterTable
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
productFeature
<div class="spec-list"><ul class="lv1"><li>Buck Regulator <ul class="lv2"> <li></li><li>4.5V to 18V Input Voltage Range </li><li>3A Output Current </li><li>Internal N-Channel MOSFETs </li><li>Current Mode Control </li><li>Adjustable PWM Frequency </li><li>Adjustable Output from 0.8V to 15V </li><li>Adjustable Soft-Start Time </li><li>Stable with Ceramic Output Capacitors </li><li>Cycle-by-cycle Current Limit </li><li>Input Under-Voltage Lockout </li><li>Output Under-Voltage Protection </li><li>Thermal Shutdown </li></ul> </li><li>Power Switch <ul class="lv2"> <li></li><li>±15% Current-Limit Accuracy at 1.2A </li><li>Adjustable Current Limit : 75mA to 2580mA </li><li>Meet USB Current-Limiting Requirements </li><li>Reverse Input-Output Voltage Protection </li><li>Built-in Soft-Start </li><li>120mΩ High-Side MOSFET </li><li>Operating Range : 2.5 V to 5.5 V </li></ul> </li><li>RoHS Compliant and Halogen Free </li></ul></div>
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
productImageSwitcher
RT7249 Ordering Information
normal-table
card-list
products
productTable
evbImageSwitcher
normal-table
card-list
evb
evbTable
orderingDetail
technical-documents
RT7249
technicalDocumentMultipleTable
design-tools
RT7249
designToolMultipleTable
32
56
56
56
rt-blue-800
i18n(text.application-title.text-content)
applicationTitle
withLine
24
24
24
24
<div class="spec-list"><ul class="lv1"><li>Wireless AP/Router </li><li>Set-Top-Boxes </li><li>Industrial and Commercial Low Power Systems </li><li>LCD Monitors and TVs </li><li>Green Electronics/Appliances </li><li>Point of Load Regulation of High-Performance DSPs </li><li>USB Bus/Self Powered Hubs </li><li>USB Peripheral Ports </li><li>ACPI Power Distribution </li><li>Battery Power Equipment </li><li>3G/3.5G Data Card </li></ul></div>
