The RT7781 is a series of high-performance current mode PWM controllers with Richtek proprietary PowerZero<sup>TM</sup> technology. The PowerZero<sup>TM</sup> provides an excellent green power solution, especially under light-load and no-load conditions. The integrated high-voltage device provides fast start-up function without external start-up resistors. It also features brown-in and brown-out detection. The RT7781 offers complete protection functions such as internal Over-Temperature Protection (OTP), Over-Load Protection (OLP) and VDD Over-Voltage Protection (OVP). It also features Secondary Rectifier Short-circuit Protection (SRSP) and Current Sensing pin (CS) open-circuit protection. Due to these protections, design of power supply unit becomes simple and reliable. The RT7781 provides several versions, shown in the RT7781 version table, for various applications. It is targeted for cost-effective and compact power supply units such as NB adaptors.

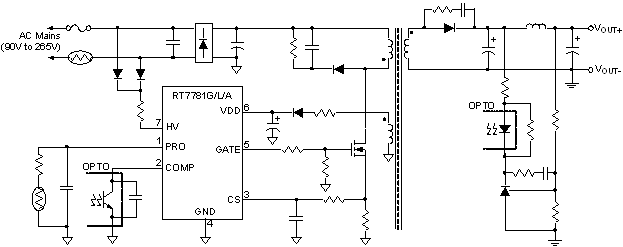

RT7781 Typical Circuit
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
scrollable-table
parameterTable
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
productFeature
<div class="spec-list"><ul class="lv1"><li>PowerZero<sup>TM</sup> Technology <ul class="lv2"> <li></li><li>Integrated 700V Start-Up Device </li><li>Brown-In and Brown-Out </li></ul> </li><li>Low No-Load Input Power (<50mW) (RT7781G/L/A/C) </li><li>Low No-Load Input Power (<30mW) (RT7781T) </li><li>Accurate Over Load Protection </li><li>Driver Capability : 400mA/-400mA </li><li>PRO Pin for Arbitrary External Protection (RT7781G/L/A/T) </li><li>ACD Pin for TV Application (RT7781C) </li><li>Disable Mode for 30mW Solution (RT7781T) </li><li>Jittering Frequency </li><li>Soft Driving for Reducing EMI Noise </li><li>VDD Over Voltage Protection </li><li>Internal Over Temperature Protection </li><li>Secondary Rectifier Short Protection </li><li>CS Pin Open Protection </li><li>RoHS Compliant and Halogen Free </li></ul></div>
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
productImageSwitcher

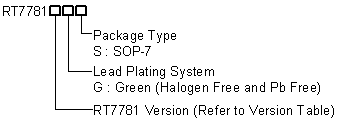

RT7781 Ordering Information
