The RT7885 is a USB Power Delivery (USB PD) controller adopting Buck-Boost PWM control scheme and highly integrating functions specially for USB power bank applications, with that this controller is designed to operate in peak current mode with programmable current limit and switching frequency. The RT7885 embeds an ARM Cortex<sup>TM</sup>-M0 MCU so as to facilitate various functions of communication protocol, protections and customized requirements. Moreover, this RT7885 has built-in charge pumps for driving low-cost NMOS to control the power path. Therefore this IC provides the best USB PD solution for a power bank application with the lowest count of external components.

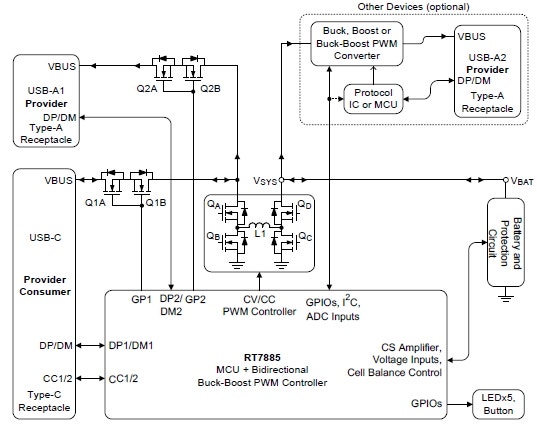

RT7885 Typical Circuit
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
scrollable-table
parameterTable
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
productFeature
<div class="spec-list"><ul class="lv1"><li>Communication Protocols <ul class="lv2"> <li></li><li>Support Type-C and USB Power Delivery (PD) Communication </li><li>Support Dual-Role Power (DRP) Application </li><li>Support Proprietary Protocols via DP and DM Interfaces </li></ul> </li><li>Charging Operation for 2S to 4S Battery <ul class="lv2"> <li></li><li>CC and CV Charge, End of Charge, Re-Charge, and Charging Timeout Protection </li><li>Cell Balance Control </li></ul> </li><li>Bi-directional Buck-or-Boost Operation : <ul class="lv2"> <li></li><li>Peak-Current Mode PWM Operation </li><li>Programmable PWM Switching Frequency </li><li>Programmable Constant Voltage and Constant Current Settings for Charger/Provider Mode Output </li><li>Pulse-Skipping Mode (PSM) for Light-Load Efficiency </li><li>Programmable Cable Voltage Drop Compensation </li></ul> </li><li>2 Charge Pump Gate Drivers for N-MOSFETs </li><li>Hardware and Firmware-Based Protections : <ul class="lv2"> <li></li><li>Adjustable Converter Input Current-Limit </li><li>Programmable Over-Voltage Protections (OVP) and Under-Voltage Protections (UVP) </li><li>Adjustable External OTP </li></ul> </li><li>Master/Slave I<sup>2</sup>C Interface, LED Drivers, GPIOs </li><li>Built-in Bleeders for Quick VBUS Discharge </li><li>Online Firmware Update via CC1/2 or Slave I<sup>2</sup>C Interfaces </li><li>WQFN-60L 7x7 Package </li><li>USB PD PD3.0/PPS Certification Passed (TID 2319) </li></ul></div>
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
productImageSwitcher

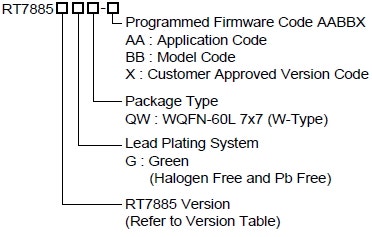

RT7885 Ordering Information
