The RT8023 combines two low dropout (LDO) linear regulators and a step-down converter with an input voltage range of 2.6V to 5.5V. Each output voltage is adjustable from 0.8V to 5V. With independent Enable and Power-Good pins for each regulator, it is easy to control the power up sequence, which is important in some applications.<br />The LDO has an independent input and is capable of delivering up to 700mA(LDO1) and 350mA(LDO2) output currents with ultra-low dropout. The LDO has high PSRR and can work with low-ESR space saving ceramic capacitors. All these make it Ideal for portable RF and wireless applications with demanding performance and space requirements. Other features include high output accuracy, current limiting protection, and 40μs fast turn-on time.<br />The step-down converter is a 1.2MHz PWM, current mode converter. Its high switching frequency allows the use of tiny, low cost capacitors and inductors 2mm or less in height. Internal power switches with low on-resistance increase efficiency and eliminate the need for external Schottky diodes. The converter can run at 100% duty cycle for low dropout operation that extends battery life in portable systems.

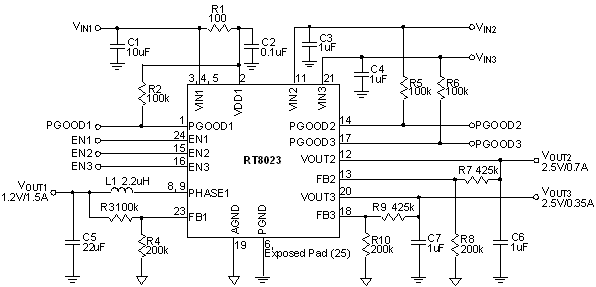

RT8023 Typical Circuit
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
scrollable-table
parameterTable
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
productFeature
<div class="spec-list"><ul class="lv1"><li>Converter Input Voltage Range : 2.6V to 5.5V,LDO Input Voltage Range : 2.4V to 5.5V </li><li>Low-Noise LDO for RF Application </li><li>Ultra-Fast Response in Line/Load Transient </li><li>LDO Turn-On Time Less Than 40μs </li><li>Only 1μF LDO Output Capacitor Required for Stability </li><li>Current Limiting Protection </li><li>1.5A, High Efficiency Step-Down Converter </li><li>1.2MHZ Constant Switching Frequency </li><li>Low R<sub>DS(ON)</sub> Internal Switches </li><li>No Schottky Diode Required </li><li>0.8V Reference Allows Low Output Voltage </li><li>Low Dropout Operation : 100% Duty Cycle Internally Compensated </li><li>< 2μA Shutdown Current </li><li>Power Good Output Voltage Monitor </li><li>Internal Soft-Start for PWM Converter </li><li>Easy Power Sequence Control </li><li>Over Temperature Protection </li><li>Short Circuit Protection </li><li>Thermally Enhanced 24-Lead WQFN Package </li><li>RoHS Compliant and 100% Lead (Pb)-Free </li></ul></div>
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
productImageSwitcher

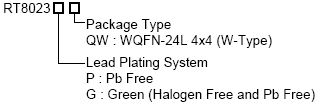

RT8023 Ordering Information
normal-table
card-list
products
productTable
evbImageSwitcher
normal-table
card-list
evb
evbTable
orderingDetail
technical-documents
RT8023
technicalDocumentMultipleTable
design-tools
RT8023
designToolMultipleTable
32
56
56
56
rt-blue-800
i18n(text.application-title.text-content)
applicationTitle
withLine
24
24
24
24
<div class="spec-list"><ul class="lv1"><li>Portable Instruments </li><li>Microprocessors and DSP Core Supplies </li><li>Cellular Phones </li><li>Wireless and DSL Modems </li><li>PC Cards </li><li>Digital Cameras </li></ul></div>
