The RT8100A is an advanced DC/DC synchronous buck PWM controller with several innovative functions for specific customer's ASIC only. The part features RichTek's innovative design and topology say "analogous current mode" for current sensing and full functions for various applications including adjustable soft start, free-run and adjustable operation frequency and enable; the part is with design of 12V+12V boot strapped driver which is capable to drive up to 20Amp output current; moreover the part is with implementation of accuracy DCR current sensing topology. There are several specific features implemented and reserved for the specific customer's special applications including dual V<sub>CORE</sub> control mode including tracking and stand-alone mode, and output current indication. The part is proposed with a small footprint of VQFN-16L 3x3 package.

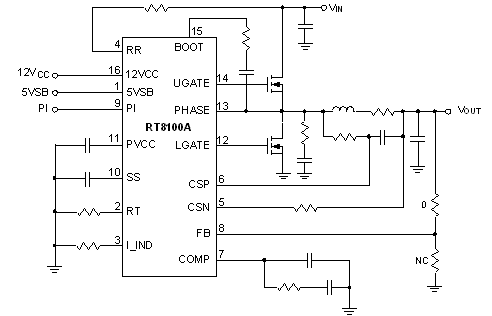

RT8100A Typical Circuit
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
scrollable-table
parameterTable
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
productFeature
<div class="spec-list"><ul class="lv1"><li>Analogous Current Mode Design </li><li>2.5V to 12V Switching Source Power </li><li>0.8V to 3.3V Output Voltage Regulation </li><li>Adjustable V<sub>IN</sub> Feed-Forward Ramp Slope </li><li>Adjustable Operation Frequency </li><li>Precise Core Voltage Regulation </li><li>Precise DCR Current Sensing with High Quality Capacitor, X7R </li><li>±1.5% System Accuracy </li><li>Input Voltage : 12V and 5V Bias </li><li>Enable Function </li><li>RoHS Compliant and 100% Lead (Pb)-Free </li><li>Over Current Protection </li><li>External Soft Start Setting </li><li>Operation Frequency up to 1.0MHz </li><li>Dual Mode Voltage Control♦ Tracking Mode♦ Stand-Alone Mode </li><li>Output Current Indication </li><li>16-Lead VQFN Package </li></ul></div>
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
productImageSwitcher

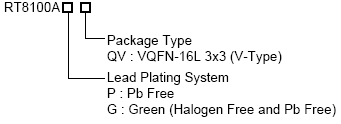

RT8100A Ordering Information
