The RT8110C is a compact fixed-frequency PWM controller with integrated MOSFET drivers for single power rail synchronous single-phase buck converter. This part features an internal regulator that allows wide input voltage range operation. The RT8110C utilizes voltage-mode control with internal control loop compensation to simplify the converter design. An internal 0.8V reference voltage allows low output voltage application. The switching frequency is fixed at 400kHz to reduce the external passive component size to save board space. The RT8110C provides under voltage protection, current limit, over current protection and over temperature protection. The low-side MOSFET R<sub>DS(ON)</sub> is used to sense the inductor current for over current protection.</div>

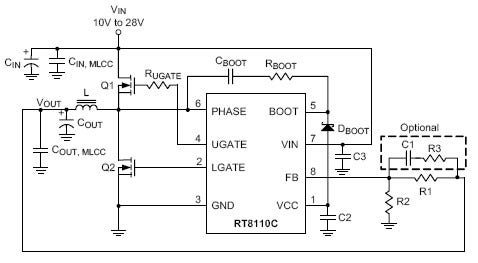

RT8110C Typical Circuit
