The RT8113 is a single-phase PWM buck controller with one integrated MOSFET driver for advanced microprocessor applications such as Atom V<sub>CORE</sub> or Ibexpeak Graphic Power. This controller maintains the same features as the multi-phase product family. However, it reduces the output to one phase for lower current systems. Features of this controller include adjustable operation frequency, power good indication, external error amplifer compensation, over voltage protection, over current protection, droop enable/disable capability, externally adjustable offset voltage, load transient enhancement (quick response), and enable/shutdown pin to achieve optimal power management solution for various applications. The RT8113 comes in a WQFN-24L 4x4 package.</div>

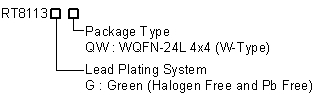

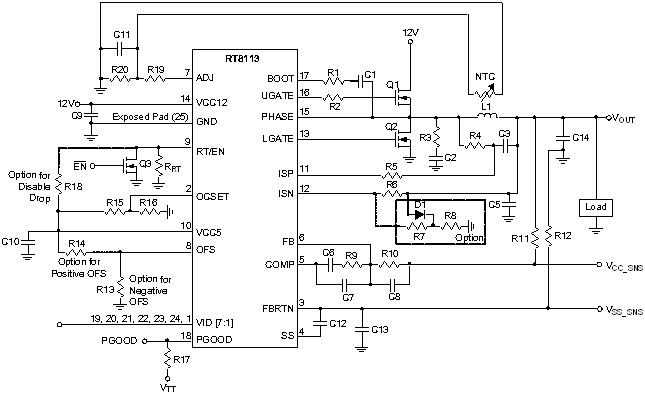

RT8113 Typical Circuit
