The RT8208D is a constant on-time PWM controller which provides four resistor-programmable DC output voltages by controlling the G0 and G1 digital input. The output voltage is programmable from 0.75V to 3.3V. The RT8208D offers the lowest total-solution cost in systems where need output voltage slewing. The RT8208D provides an automatic-masking power good output during output voltage transition.<br />The constant on-time PWM control scheme handles wide input/output ratios with ease and provides 100ns "instant-on" response to load transient while maintaining a relatively constant frequency. It provides the high efficiency, excellent transient response, and DC output accuracy needed for stepping down high voltage batteries to generate low voltage CPU core, graphics, I/O and chipset RAM supplies in notebook computers.<br />The RT8208D achieves high efficiency at a reduced cost by eliminating the current-sense resistor in traditional current mode PWMs. Efficiency is further enhanced by its ability to drive very large synchronous rectifier MOSFETs. The buck conversion allows this device to directly step down from high voltage batteries for the highest possible efficiency. Additional features include soft-start, under voltage protection, programmable over current protection and non-overlapping gate drive. The RT8208D is available in a WQFN-16L 3x3 package.</div>

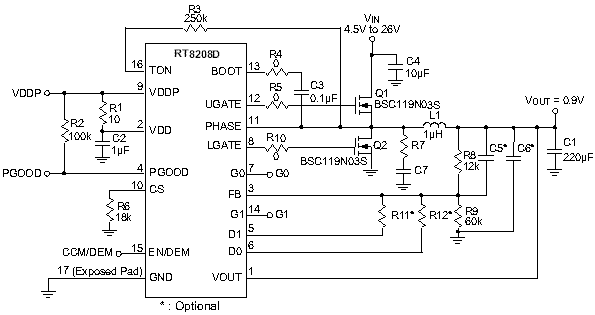

RT8208D Typical Circuit
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
scrollable-table
parameterTable
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
productFeature
<div class="spec-list"><ul class="lv1"><li>Ultra-High Efficiency </li><li>Programmable Output Voltage from 0.75V to 3.3V with Integrated Transition Support </li><li>Quick Load Step Response within 100ns </li><li>1% V<sub>FB</sub> Accuracy over Line and Load </li><li>4.5V to 26V Battery Input Range </li><li>Programmable Switching Frequency </li><li>Integrated Bootstrap Switch </li><li>Programmable Positive Current Limit by Low Side R<sub>DS(ON)</sub> Sense (Lossless Limit) </li><li>Negative Current Limiter </li><li>Voltage Transient Overshoot Eliminator* </li><li>Over Voltage Protection </li><li>Under Voltage Protection </li><li>4 Steps Current Limit During Soft-Start </li><li>Power Good Indicator </li><li>RoHS Compliant and Halogen Free <p>* Paten Pending</p> </li></ul></div>
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
productImageSwitcher

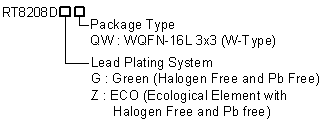

RT8208D Ordering Information
