The RT8566 is an 8-CH LED driver capable of delivering 120mA for each channel. The RT8566 is a current mode boost converter with an adjustable switching frequency via the RT pin from 100kHz to 1MHz and a wide VIN range from 9V to 28V. The PWM output voltage loop selects and regulates the LED pin with the highest voltage string to 0.6V, hence allowing voltage mismatches between LED strings. The RT8566 automatically detects and disconnects any unconnected and/or broken strings during operation from PWM loop to prevent V<sub>OUT</sub> from over voltage. The 1.5% matched LED currents on all channels are simply programmed with a resistor. A very high contrast ratio true digital PWM dimming can be achieved by driving the PWM pin with a PWM signal. When an abnormal situation (open/short/thermal) occurs, a status signal will be sent to the system to shut down the IC. The RT8566 is available in a TSSOP-28 (Exposed Pad) package.

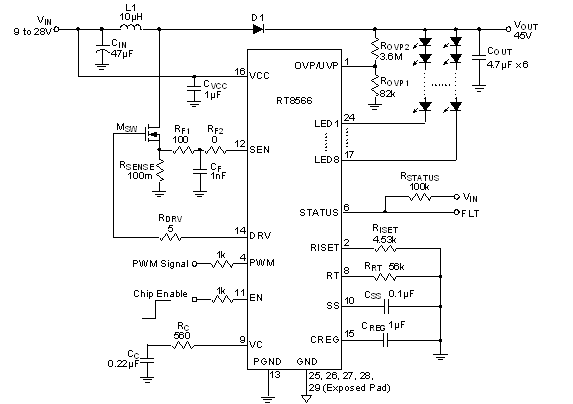

RT8566 Typical Circuit
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
scrollable-table
parameterTable
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
productFeature
<div class="spec-list"><ul class="lv1"><li>Wide Input Supply Voltage Range : 9V to 28V </li><li>Adjustable Boost Controller Switching Frequency from 100kHz to 1MHz </li><li>Programmable Channel Current </li><li>Channel Current Matching : ±1.5% </li><li>External Dimming Control </li><li>Boost MOSFET Over Current Protection </li><li>Automatic LED Open/Short Protection to Avoid Output Over Voltage </li><li>VCC Under Voltage Lockout </li><li>Adjustable Over Voltage Protection </li><li>Under Voltage Protection </li><li>Thermal Shutdown Protection </li><li>Abnormal Status Indicator for Open/Short/Thermal Condition </li><li>RoHS Compliant and Halogen Free </li></ul></div>
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
productImageSwitcher

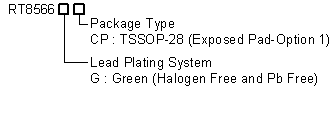

RT8566 Ordering Information
normal-table
card-list
products
productTable
evbImageSwitcher
normal-table
card-list
evb
evbTable
orderingDetail
technical-documents
RT8566
technicalDocumentMultipleTable
design-tools
RT8566
designToolMultipleTable
32
56
56
56
rt-blue-800
i18n(text.application-title.text-content)
applicationTitle
withLine
24
24
24
24
<div class="spec-list"><ul class="lv1"><li>LCD TV, Monitor Display Backlight </li><li>LED Driver Application </li><li>General Purpose Constant Current Source </li></ul></div>
