The RT8802A is a 2/3/4/5-phase synchronous buck controller specifically designed to power Intel^® / AMD next generation microprocessors. It implements an internal 8-bit DAC that is identified by VID code of microprocessor directly. RT8802A generates VID table that conform to Intel^® VRD10.x and VRD11 core power with 6.25mV increments and 0.5% accuracy.<br />RT8802A adopts innovative time-sharing DCR current sensing technique to sense phase currents for phase current balance, load line setting and over current protection. Using a common GM to sense all phase currents eliminates offset and linearity variation between GMs in conventional current sensing methods. As sub-milli-ohm-grade inductors are widely used in modern motherboards, slight offset and linearity mismatch will cause considerable current shift between phases. This technique ensures good current balance in mass production.<br />Other features include over current protection, programmable soft start, over voltage protection, and output offset setting. RT8802A comes to a small footprint package with VQFN-40L 6x6.</div>

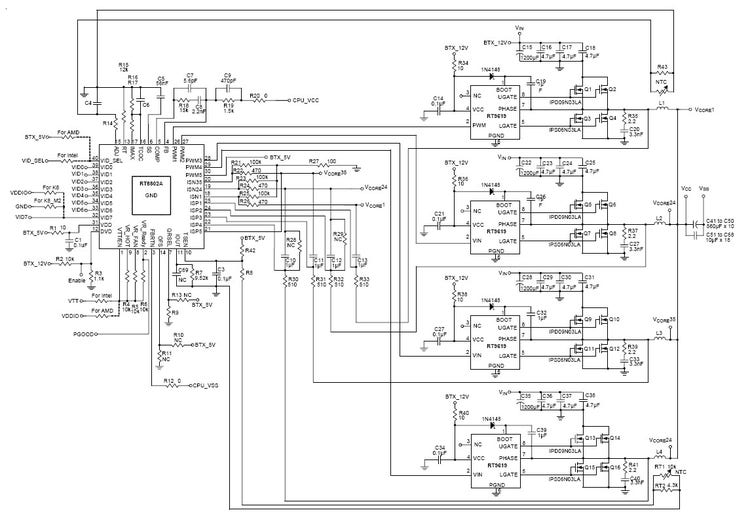

RT8802A Typical Circuit

productImageSwitcher

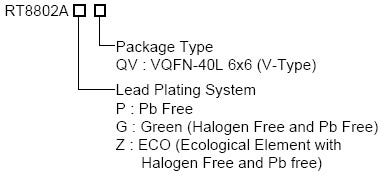

RT8802A Ordering Information
