The RT8809 is a dual-phase synchronous Buck PWM controller with integrated drivers which are optimized for high-performance graphic microprocessor and computer applications. The IC integrates a G-NAVP<sup>TM</sup> PWM controller, two 12V MOSFET drivers with internal bootstrap diodes, as well as output current monitoring and protection functions into the WQFN-24L 4x4 package. The RT8809 adopts DCR and R<sub>DS(ON)</sub> current sensing. Load line voltage positioning (droop) and over-current protection are accomplished through continuous inductor DCR current sensing, while R<sub>DS(ON)</sub> current sensing is used for accurate channel-current balance. Using both methods of current sampling utilizes the best advantages of each technique. The RT8809 also features a one-bit VID control operation in which the feedback voltage is regulated and tracks external input reference voltage. Other features include output current indication, adjustable operating frequency, power good indication, external compensation, and enable/shutdown functions.</p>

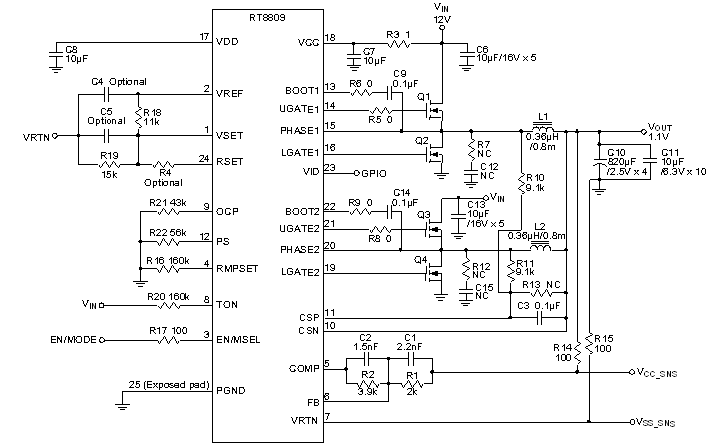

RT8809 Typical Circuit
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
scrollable-table
parameterTable
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
productFeature
<div class="spec-list"><ul class="lv1"><li>Dual-Phase PWM Controller </li><li>Two Embedded MOSFET Drivers and Embedded Switching Boot Diode </li><li>Green-NAVP<sup>TM </sup>(Green Native Adaptive Voltage Positioning) Topology </li><li>Dynamic Auto-Phase Control with Adjustable Threshold </li><li>Cross-talk Jitter Suspend (CJS<sup>TM</sup>) </li><li>Remote GND Detection for High Accuracy </li><li>Automatic Diode Emulation Mode/or Ultrasonic Mode at Light Load </li><li>Lossless R<sub>DS(ON)</sub> Current Sensing for Current Balance </li><li>Lossless DCR Current Sensing for AVP & OCP </li><li>Reference Voltage Output with 1% Accuracy </li><li>External Reference Input with Soft-Start (RISS) </li><li>Embedded One-Bit VID Control </li><li>Adjustable OCP Threshold </li><li>Adjustable Switching Frequency </li><li>Reference-Tracking UVP/OVP Protection </li><li>Shoot Through Protection and Short Pulse Free Technology </li><li>RoHS Compliant and Halogen Free </li></ul></div>
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
productImageSwitcher

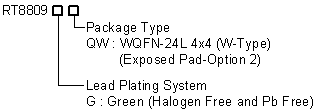

RT8809 Ordering Information
normal-table
card-list
products
productTable
evbImageSwitcher
normal-table
card-list
evb
evbTable
orderingDetail
technical-documents
RT8809
technicalDocumentMultipleTable
design-tools
RT8809
designToolMultipleTable
32
56
56
56
rt-blue-800
i18n(text.application-title.text-content)
applicationTitle
withLine
24
24
24
24
<div class="spec-list"><ul class="lv1"><li>Middle to High End GPU Core Power </li><li>High End Desktop PC Memory Core Power </li><li>Low Voltage, High Current DC/DC Converter </li><li>Voltage Regulator Modules </li></ul></div>
