RT9014/A is a dual channel, low noise, and low dropout with the sourcing ability up to 300mA, an open drain driver and power-on reset function. The open-drain output is capable of sinking 150mA for LED backlighting applications. The range of output voltage is from 1.2V to 3.5V by operating from 2.5V to 5.5V input. The RT9014/A offers 2% accuracy, extremely low dropout voltage (240mV @ 300mA), and extremely low ground current, only 27μA per LDO. The shutdown current is near zero current which is suitable for battery-power devices. Other features include current limiting, over temperature, output short circuit protection. The RT9014/A is short circuit thermal folded back protected. The IC lowers its OTP trip point from 165°C to 110°C when output short circuit occurs (V<sub>OUT</sub> < 0.4V) providing maximum safety to end users. The RT9014/A can operate stably with very small ceramic output capacitors, reducing required board space and component cost. The RT9014/A is available in fixed output voltages in the WDFN-10L 3x3 package.

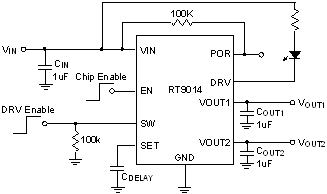

RT9014/RT9014A Typical Circuit
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
scrollable-table
parameterTable
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
productFeature
<div class="spec-list"><ul class="lv1"><li>Wide Operating Voltage Ranges : 2.5V to 5.5V </li><li>Low-Noise for RF Application </li><li>No Noise Bypass Capacitor Required </li><li>Fast Response in Line/Load Transient </li><li>TTL-Logic-Controlled Shutdown Input </li><li>Low Temperature Coefficient </li><li>Dual LDO Outputs (300mA/300mA) </li><li>1 Open-Drain Driver </li><li>Ultra-low Quiescent Current 27μA/LDO </li><li>High Output Accuracy 2% </li><li>Short Circuit Protection </li><li>Thermal Shutdown Protection </li><li>Current Limit Protection </li><li>Short Circuit Thermal Folded Back Protection </li><li>Tiny 10-Lead WDFN Package </li><li>RoHS Compliant and 100% Lead (Pb)-Free </li></ul></div>
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
productImageSwitcher

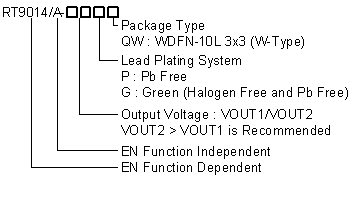

RT9014/RT9014A Ordering Information
