8
8
8
4
1rem
1rem
1rem
1rem
rt-dark-800
headline-3
false
true
basicInfoTitle
12
12
12
12
left
buttonParametricSearch
text-with-icon
i18n(button-item.parametric-search.button-label)
i18n(button-item.parametric-search.button-link)
_self
true
buttonDatasheet
text-with-icon
secondary
i18n(button-item.datasheet.button-label)
i18n(button-item.datasheet.button-link)
_self
true
buttonContactUs
text-with-icon
secondary
i18n(button-item.contact-us.button-label)
i18n(button-item.contact-us.button-link)
_self
true
36
24
24
12
rt-dark-800
basicInfoSubtitle
width
fixed-width
altText
Product Spec Banner
backgroundColor
FFFFFF
id
basicInfoSection
basicInfoImageSwitcher
RT9026 is a 3A sink/source tracking termination regulator. It is specifically designed for low-cost and low-external component count systems. The RT9026 possesses a high speed operating amplifier that provides fast load transient response and only requires 20μF of ceramic output capacitance. The RT9026 supports remote sensing functions and all features required to power the DDRI/II/III and low-power DDRIII/DDRIV VTT bus termination according to the JEDEC specification. In addition, the RT9026 includes integrated sleep-state controls placing VTT in High-Z in S3 (suspend to RAM) and soft-off for VTT and VTTREF in S5 (shutdown). The RT9026 is available in the thermal efficient package SOP-8 (Exposed Pad), MSOP-10 (Exposed Pad) and WDFN-10L 3x3.

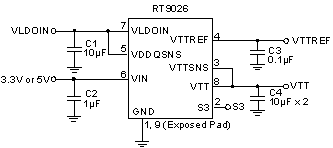

RT9026 Typical Circuit
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>Support DDRI, DDRII, DDRIII, Low-Power DDRIII and DDRIV Requirement <ul class="lv2"> <li></li><li>Source/Sink 3A for DDRI and DDRII </li><li>Source/Sink 2A for DDRIII </li><li>Source/Sink 1.5A for Low-Power DDRIII </li><li>Source/Sink 1.2A for Low-Power DDRIV </li></ul> </li><li>Input Voltage Range : 3.15V to 5.5V </li><li>VLDOIN Voltage Range : 1.2V to 3.3V </li><li>Requires Only 20μF Ceramic Output Capacitance </li><li>Supports High-Z in S3 and Soft-Off in S5 </li><li>Integrated Divider Tracks 1/2 VDDQSNS for Both VTT and VTTREF </li><li>Remote Sensing (VTTSNS) </li><li>±20mV Accuracy for VTT and VTTREF </li><li>10mA Buffered Reference (Sourcing/Sinking) (VTTREF) </li><li>Built-In Soft-Start </li><li>Over Current Protection </li><li>Thermal Shutdown Protection </li><li>SOP-8 (Exposed Pad), MSOP-10 (Exposed Pad) and 10-Lead WDFN Package </li><li>RoHS Compliant and Halogen Free </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

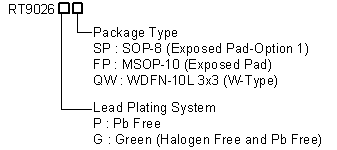

RT9026 Ordering Information
normal-table
card-list
products
productTable
width
fixed-width
id
productSection
evbImageSwitcher
normal-table
card-list
evb
evbTable
width
fixed-width
id
evbSection
orderingDetail
width
fixed-width
id
orderingDetailSection
technical-documents
RT9026
technicalDocumentMultipleTable
width
fixed-width
id
technicalDocumentationSection
design-tools
RT9026
designToolMultipleTable
width
fixed-width
id
designToolSection
32
56
56
56
rt-blue-800
i18n(text.application-title.text-content)
applicationTitle
withLine
24
24
24
24
<div class="spec-list"><ul class="lv1"><li>DDRI/II/III and Low-Power DDRIII/DDRIV Memory Termination </li><li>SSTL-2, SSTL-18 </li><li>HSTL Termination </li></ul></div>
applicationContent
35
35
35
35
keywordList
56
56
56
56
width
fixed-width
id
applicationSection
rt-blue-800
i18n(text.support-card-title.text-content)
supportCardTitle
withLine
40
40
40
24
supportCards
i18n(support-card-item.technical-support.title)
i18n(support-card-item.technical-support.description)
i18n(support-card-item.technical-support.learn-more-text)
i18n(support-card-item.technical-support.url)
technicalSupportCard
i18n(support-card-item.ordering.title)
i18n(support-card-item.ordering.description)
i18n(support-card-item.ordering.learn-more-text)
i18n(support-card-item.ordering.url)
orderingSupportCard
i18n(support-card-item.sales.title)
i18n(support-card-item.sales.description)
i18n(support-card-item.sales.learn-more-text)
i18n(support-card-item.sales.url)
salesSupportCard
56
56
56
32
width
fixed-width
id
supportSection
