The RT9120M is a high efficiency, I<sup>2</sup>S-input, stereo channel audio power amplifier delivering 2x20W into 8Ω BTL speaker loads. It can deliver over 92% power efficiency and eliminate the need for heat-sink.<br /><br />The built-in anti-pop functions can reduce the speaker′s pop noise under all kind of scenarios. Built-in protection circuits can provide over-temperature, overcurrent, overvoltage, and undervoltage protections and report error status.<br /><br />The RT9120M is a 3-wired device receiving all clocks from external sources with standard I<sup>2</sup>S, Left-justified, Right-justified and TDM formats. It can support both master and slave mode with wide input sampling rate from 8kHz to 192kHz. A fully programmable data path routes these channels to the internal speaker drivers.<br /><br /> The RT9120M features one band DRC and flexible input mixer, and power limiting.

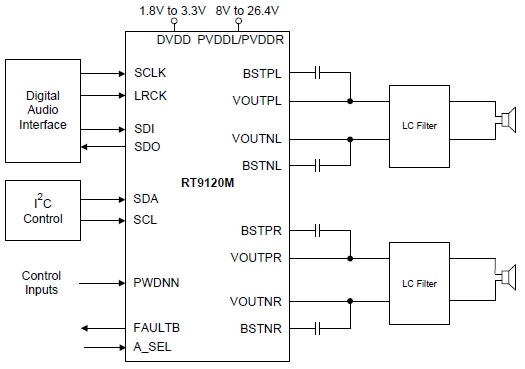

RT9120M Typical Circuit
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
scrollable-table
parameterTable
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
productFeature
<div class="spec-list"><ul class="lv1"><li>Wide Input Supply Range: 4.5V to 26.4V </li><li>Support 1.8V, 3.3V I/O </li><li>I<sup>2</sup>S, LJ, RJ, TDM Digital Audio Interface </li><li>2x20W at into 8Ω BTL at 20V </li><li>2x9W at into 8Ω BTL at 12V </li><li>SNR Up to 108dB </li><li>THD + N is 0.03% at 1W </li><li>45μV Noise Floor </li><li>Efficiency Up to 92% at 2x10W for 8Ω </li><li>Sampling Frequency from 8kHz to 192kHz </li><li>Built-In Anti-Pop Function for BTL BD Modulations </li><li>Flexible Input Mixer </li><li>Programmable Coefficients for DRC Filters and Supporting Multi-Compression Ratios </li><li>Built-In DC Blocking Filters </li><li>Built-in Thermal Fold Back Control </li><li>Protection Features: UVLO, OVP, OCP, OTP and DCP </li><li>Filter-Less Application </li><li>VQFN-32L Thermally-Enhanced Package </li><li>RoHS Compliant and Halogen Free </li></ul></div>
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
productImageSwitcher

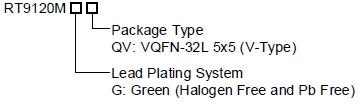

RT9120M Ordering Information
