The RT9121 is a high efficiency, I<sup>2</sup>S-input, stereo channel audio power amplifier delivering 2x30W into 8Ω BTL speaker loads. It can deliver over 94% power efficiency and eliminate the need for heat-sink.<br /><br />Built-in protection circuits can provide over-temperature, overcurrent, overvoltage, DC and undervoltage protections and report error status.<br /><br />The RT9121 is an I<sup>2</sup>S device receiving all clocks from external sources. It can support both master and slave mode with wide input sampling rate from 8kHz to 192kHz. A fully programmable data path routes these channels to the internal speaker drivers.<br /><br />The RT9121 features three band DRC and flexible multi-band biquads for anti-clipping, power limiting, and speaker equalization.

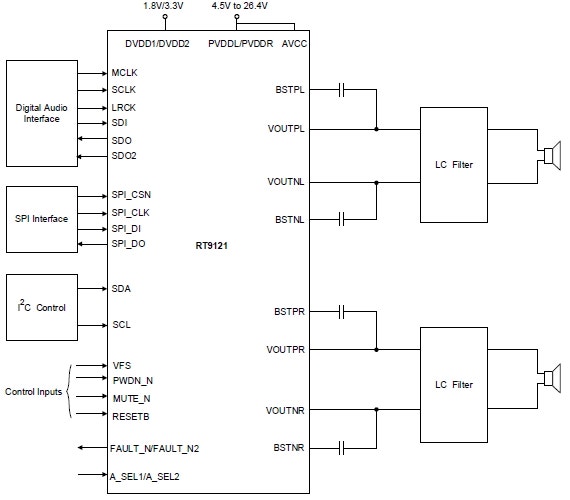

RT9121 Typical Circuit
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
scrollable-table
parameterTable
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
productFeature
<div class="spec-list"><ul class="lv1"><li>Flexible Power Supply Range <ul class="lv2"> <li></li><li>PVDD from 4.5V to 26.4V </li><li>DVDD and I/O, 1.8V or 3.3V </li></ul> </li><li>Support Wide Range Audio Format <ul class="lv2"> <li></li><li>Bit Resolution Up to 32 Bits </li><li>Support TDM Up to 32 Bit </li><li>Sampling Frequency from 8kHz to 192kHz </li></ul> </li><li>Excellent Audio Performance <ul class="lv2"> <li></li><li>2x30W at into 8Ω BTL at 24V </li><li>SNR ≥ 110dB </li><li>Efficiency ≥ 94% </li></ul> </li><li>Built-in Programmable DSP Function <ul class="lv2"> <li></li><li>40 Programmable Biquads for Speaker Equalization </li><li>Programmable Coefficients for DRC Filters and Supporting Multi-Compression Ratios </li><li>Programmable 256-taps FIR </li></ul> </li><li>Excellent Self-Protection <ul class="lv2"> <li></li><li>UVLO, OVP, OCP, thermal foldback, OTP and DCP </li><li>Built-In DC Blocking Filters </li></ul> </li><li>Filter-Less Application </li><li>Hifi-3 DSP Process, 160kB SRAM </li><li>Adjustable PWM frequency up to 1.5MHz </li><li>VQFN-48L Thermally-Enhanced Package </li><li>RoHS Compliant and Halogen Free </li></ul></div>
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
productImageSwitcher

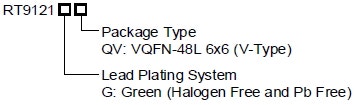

RT9121 Ordering Information
