The RT9232B is a single-phase synchronous buck PWM DC/DC converter controller designed to drive two N-MOSFETs. It provides a highly accurate, programmable output voltage precisely regulated to low voltage requirement with an internal 0.8V ± 1% reference. The RT9232B uses an external compensated, single feedback loop voltage mode PWM control for fast transient response. An<strong> </strong>oscillator with Programmable frequency (50kHz to 800kHz)<strong> </strong>reduces the external inductor and capacitor component size for saving PCB board area. </p>The RT9232B provides fast transient response to satisfy high current output applications (up to 25A) while minimizing external components. It is suitable for high-performance graphic processors, DDR and VTT power. </p>The RT9232B integrates complete protect functions such as Soft Start, Output Enable, UVLO(under-voltage lockout) and OCP into a small 14-pin package.</p>

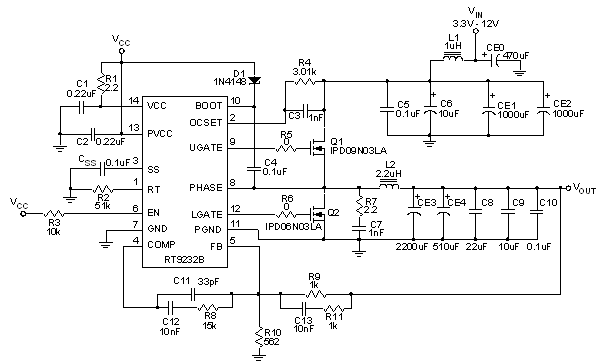

RT9232B Typical Circuit
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
scrollable-table
parameterTable
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
productFeature
<div class="spec-list"><ul class="lv1"><li>Single IC Supply Voltage : 12V </li><li>Single phase DC/DC Buck Converter with <ul class="lv2"> <li></li><li>High Output Current (up to 25A) </li><li>Low Output Voltage (down to 0.8V) </li><li>High Input Voltage (up to 12V) </li></ul> </li><li>Operate from 12V, 5V or 3.3V Input </li><li>0.8V ± 1% Internal Reference </li><li>Adaptive Non-Overlapping Gate Drivers </li><li>Integrated High-Current, HV Gate Drivers </li><li>External Programmable Soft Start </li><li>External Programmable Frequency(Range : 50kHz to 800kHz, 200kHz Free Run) </li><li>Provide Over Current Protection by Sensing MOSFET R<sub>DS(ON)</sub> </li><li>On/Off Control by Enable Pin </li><li>Drives Two N-MOSFET </li><li>Full 0 to 100% Duty Cycle </li><li>Fast Transient Response </li><li>Voltage Mode PWM Control with External Feedback Loop Compensation </li><li>RoHS Compliant and 100% Lead (Pb)-Free </li></ul></div>
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
productImageSwitcher

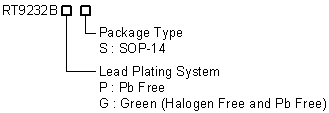

RT9232B Ordering Information
