The RT9426A Li-Ion / Li-Polymer battery fuel gauge is a microcontroller peripheral that provides fuel gauging for single-cell battery packs. The RT9426A resides within the battery pack or on the system's main board and manages a non-removable battery or removable battery pack. The RT9426A reports StateOfCharge, StateOfHealth, FullChargeCapacity, TimeToEmpty and CycleCount based on the Voltaic Gauge with Current Sensing (VGCS) algorithm by using the voltage difference between battery voltage and OCV to calculate the increasing or decreasing SOC, with current sensing compensation to report battery SOC. Voltaic Gauge with Current Sensing algorithm can support smoothly SOC and does not accumulate error with time and current. That is an advantage compared to coulomb counter which suffer from SOC drift caused by current sense error and battery self-discharge. The RT9426A provides complete battery status monitor with interrupt alarm function. It could alert to host processor actively when condition of battery over/under-voltage and over-temperature in charge/discharge. Especially for high C-rate battery charging application, it can measure battery voltage by kelvin sense connection to eliminate the IR drop effect for optimal charging profile and safety. More useful alarm functions are Under SOC alert, SOC Change and battery presence status change.

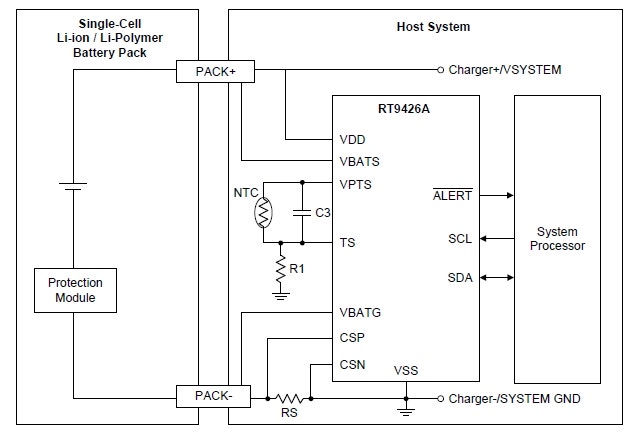

RT9426A Typical Circuit
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
scrollable-table
parameterTable
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
productFeature
<div class="spec-list"><ul class="lv1"><li>Support System Side Fuel Gauging </li><li>Battery Fuel Gauge for 1-Series (1sXp) Li-Ion/Li-Polymer Applications </li><li>State of Charge (SOC) Calculated by VoltaicGauge<sup>TM</sup> with Current Sensing (VGCS) </li><li>No Accumulation Error on Capacity Calculation </li><li>Battery SOC, SOH, FCC, TTE and Cycle Count Report </li><li>Voltage Measurement : ±7.5mV </li><li>Current Measurement : ±1% </li><li>Battery Temperature Measurement : ±3°C </li><li>Battery Monitor with Alert Indicator for Voltage, Current, Temperature, SOC and Presence </li><li>High C-Rate Battery Charging Compliance </li><li>Low Power Consumption </li><li>Low-Value Sense Resistor (1mΩ to 40mΩ, Typical 10mΩ) </li><li>12 Pin WDFN Package with 0.4mm Pitch </li><li>9 Bump WL-CSP Package with 0.5mm Pitch </li><li>I<sup>2</sup>C Controlled Interface </li></ul></div>
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
productImageSwitcher

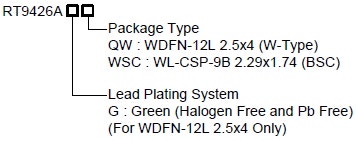

RT9426A Ordering Information
normal-table
card-list
products
productTable
evbImageSwitcher
normal-table
card-list
evb
evbTable
orderingDetail
technical-documents
RT9426A
technicalDocumentMultipleTable
design-tools
RT9426A
designToolMultipleTable
32
56
56
56
rt-blue-800
i18n(text.application-title.text-content)
applicationTitle
withLine
24
24
24
24
<div class="spec-list"><ul class="lv1"><li>Smartphones </li><li>Tablet PC </li><li>Wearable Device </li><li>Digital Still Cameras </li><li>Digital Video Cameras </li><li>Handheld and Portable Applications </li></ul></div>
