The RT9450A is a low cost switch-mode single cell Li-ion and Li-polymer battery charger for portable applications. It integrates a synchronous PWM controller, power MOSFETs, input current sensing, high accuracy current and voltage regulation, and charge termination into a small package for space-limited devices. The RT9450A also features USB On-The-Go (OTG). The RT9450A optimizes the charging task by using a control algorithm to vary the charge rate via different modes, including preconditioning mode, fast charge mode, and constant voltage mode. All charge parameters can be executed via the I<sup>2</sup>C interface. Some of these parameters include a user-selectable minimum current level setting for charge termination, a safety timer with reset control to provide safety backup for I<sup>2</sup>C interface, and charge status indication to the host. During normal operation, the RT9450A automatically restarts the charge cycle whenever the battery voltage falls below an internal threshold and automatically enters sleep mode when the input supply is removed. </p>Other features include under voltage protection, over voltage protection, thermal regulation and protection, and reverse leakage protection. </p>The RT9450A is available in a small WL-CSP-20B 2x2 (BSC) package.</p>

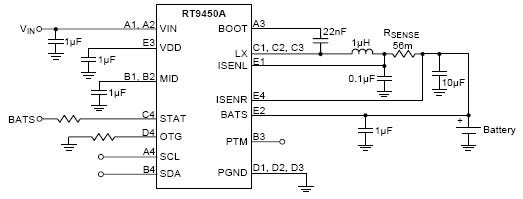

RT9450A Typical Circuit
