The RT9706 is a cost-effective, low voltage, single N-Channel MOSFET high-side power switch, optimized for self-powered and bus-powered Universal Serial Bus (USB) applications. The RT9706 equipped with a charge pump circuitry to drive the internal MOSFET switch; the switch's low R<sub>DS(ON)</sub> 80mΩ, meets USB voltage drop requirements; and a flag output is available to indicate fault conditions to the local USB controller.<br />Additional features include soft-start to limit inrush current during plug-in, thermal shutdown to prevent catastrophic switch failure from high-current loads, under-voltage lockout (UVLO) to ensure that the device remains off unless there is a valid input voltage present, lower quiescent current as 25μA making this device ideal for portable battery operated equipment.<br />The RT9706 is available in SOT-23-5 package requiring minimum board space and smallest components.

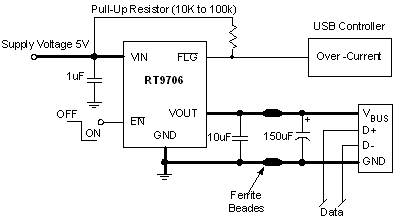

RT9706 Typical Circuit
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
scrollable-table
parameterTable
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
productFeature
<div class="spec-list"><ul class="lv1"><li>Compliant to USB Specifications </li><li>Built-In (Typically 80mΩ) N-Channel MOSFET </li><li>Output Can Be Forced Higher than Input (Off-State) </li><li>Low Supply Current :♦ 25μA Typical at Switch On State♦ 0.1μA Typical at Switch Off State </li><li>Guaranteed 500mA Continuous Load Current </li><li>Wide Input Voltage Ranges : 2V to 5.5V </li><li>Open-Drain Fault Flag Output </li><li>Hot Plug-In Application (Soft-Start) </li><li>1.7V Typical Under-Voltage Lockout (UVLO) </li><li>Current Limiting Protection </li><li>Thermal Shutdown Protection </li><li>Reverse Current Flow Blocking (no body diode) </li><li>Smallest SOT-23-5 Package Minimizes Board Space </li><li>UL Approved-E219878<img src="/assets/2011/08/03/02853xnhyd.GIF" alt="" width="42" height="42" align="middle"> </li><li>RoHS Compliant and 100% Lead (Pb)-Free </li></ul></div>
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
productImageSwitcher

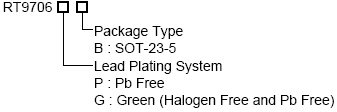

RT9706 Ordering Information
