8
8
8
4
1rem
1rem
1rem
1rem
rt-dark-800
headline-3
false
true
basicInfoTitle
12
12
12
12
left
buttonParametricSearch
text-with-icon
i18n(button-item.parametric-search.button-label)
i18n(button-item.parametric-search.button-link)
_self
true
buttonDatasheet
text-with-icon
secondary
i18n(button-item.datasheet.button-label)
i18n(button-item.datasheet.button-link)
_self
true
buttonContactUs
text-with-icon
secondary
i18n(button-item.contact-us.button-label)
i18n(button-item.contact-us.button-link)
_self
true
36
24
24
12
rt-dark-800
basicInfoSubtitle
width
fixed-width
altText
Product Spec Banner
backgroundColor
FFFFFF
id
basicInfoSection
basicInfoImageSwitcher
The RT9750 is a 6A smart load switch battery charger, which integrates an internal load switch with charge pump control and 3-path constant current/constant voltage regulation, a 5-way hardware protection, and a 8-Channel 12-bit analog-to-digital converter. The RT9750 provides the accurate analog-to-digital converter for voltage/current measurement by I<sup>2</sup>C serial interface to report the battery charging parameters and 3-way software protection and flags.

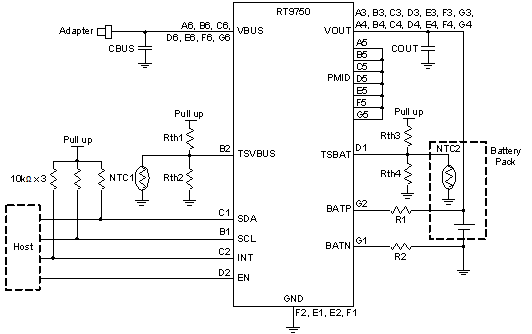

RT9750 Typical Circuit
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>Internal Load Switch with Charge Pump Control <ul class="lv2"> <li></li><li>Dual NFETs in a Back to Back Configuration </li><li>Internal Charge Pump Control </li></ul> </li><li>3-Path CC/CV Regulation <ul class="lv2"> <li></li><li>Input Current Regulation (ICR) </li><li>Output Voltage Regulation (OVR) </li><li>Battery Voltage Regulation (BVR) </li></ul> </li><li>5-Way Hardware Protection <ul class="lv2"> <li></li><li>VBUS Over-Voltage Protection (VBUS_OVP) </li><li>Drop-Out Over-Voltage Protection (VDR_OVP) </li><li>Reverse Over-Current Protection (RE_OCP) </li><li>Junction Over-Temperature Protection (TJ_OTP) </li><li>Input Over-Current Protection (IOC_OCP) </li></ul> </li><li>8-Channel 12-bit ADC <ul class="lv2"> <li></li><li>High Accuracy of 12-bit Resolution </li><li>8-Channel for Voltage/Current Measurement </li><li>High Speed Data Rate for 8/16 Times Average per Channel </li></ul> </li><li>3-Way Software Protection <ul class="lv2"> <li></li><li>Drop-Out Over-Voltage Protection Alarm (VDR_ALM) </li><li>TS of the VBUS Over-Temperature Protection (TBUS_OTP) </li><li>TS of the BAT Over-Temperature Protection (TBAT_OTP) </li></ul> </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher
RT9750 Ordering Information
normal-table
card-list
products
productTable
width
fixed-width
id
productSection
evbImageSwitcher
normal-table
card-list
evb
evbTable
width
fixed-width
id
evbSection
orderingDetail
width
fixed-width
id
orderingDetailSection
technical-documents
RT9750
technicalDocumentMultipleTable
width
fixed-width
id
technicalDocumentationSection
design-tools
RT9750
designToolMultipleTable
width
fixed-width
id
designToolSection
32
56
56
56
rt-blue-800
i18n(text.application-title.text-content)
applicationTitle
withLine
24
24
24
24
<div class="spec-list"><ul class="lv1"><li>Handheld Products </li><li>Portable Media Players </li></ul></div>
applicationContent
35
35
35
35
keywordList
56
56
56
56
width
fixed-width
id
applicationSection
rt-blue-800
i18n(text.support-card-title.text-content)
supportCardTitle
withLine
40
40
40
24
supportCards
i18n(support-card-item.technical-support.title)
i18n(support-card-item.technical-support.description)
i18n(support-card-item.technical-support.learn-more-text)
i18n(support-card-item.technical-support.url)
technicalSupportCard
i18n(support-card-item.ordering.title)
i18n(support-card-item.ordering.description)
i18n(support-card-item.ordering.learn-more-text)
i18n(support-card-item.ordering.url)
orderingSupportCard
i18n(support-card-item.sales.title)
i18n(support-card-item.sales.description)
i18n(support-card-item.sales.learn-more-text)
i18n(support-card-item.sales.url)
salesSupportCard
56
56
56
32
width
fixed-width
id
supportSection
