The RT9917 is a complete power-supply solution for digital still cameras and other hand-held devices.<br />It integrates :<br />CH1 : Boost DC-DC converter with load disconnect controller (SW1).<br />CH2 : Selectable Boost/Buck DC-DC converter<br />CH3 : Step-down DC-DC converter with internal compensation.<br />CH4 : Step-down DC-DC converter with internal compensation.<br />CH5 : DC/DC converter with HV NMOS, internal compensation and load disconnect (SW5) for CCD positive supply.<br />CH6 : DC/DC converter with HV PMOS for CCD negative supply.<br />CH7 : WLED driver with HV NMOS, internal compensation and allow for PWM dimming.<br />SW1 : Load disconnect controller for CH1.<br />SW5 : Load disconnect switch for CH5.</p>

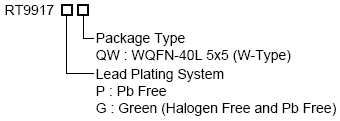

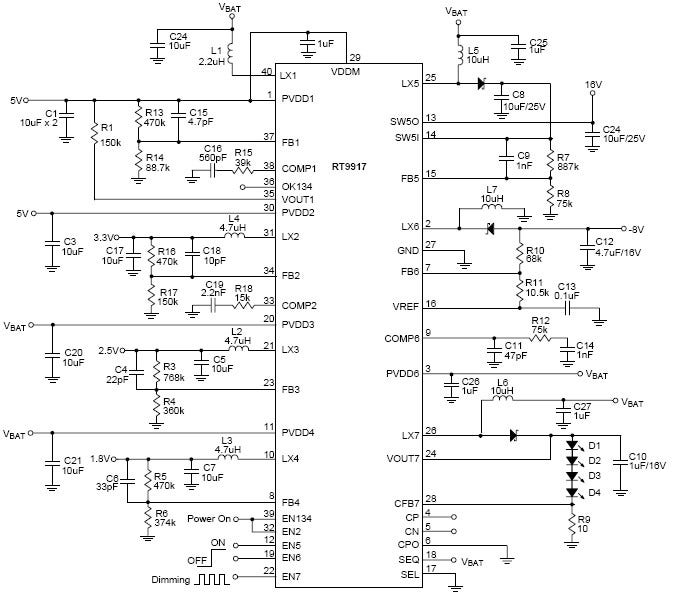

RT9917 Typical Circuit
