The RTQ2105 is a 3A, high-efficiency, current mode synchronous step-down converter which is optimized for automotive applications. The device operates with input voltages from 3V to 36V and is protected from load dump transients up to 42V, eases input surge protection design. The device can program the output voltage between 0.8V to V<sub>IN</sub>. The low quiescent current design with the integrated low R<sub>DS(ON)</sub> power MOSFETs achieves high efficiency over the wide load range. The peak current mode control with simple external compensation allows the use of small inductors and results in fast transient response and good loop stability.<br /><br />The wide switching frequency of 300kHz to 2200kHz allows for efficiency and size optimization when selecting the output filter components. The ultra-low minimum on-time enable constant-frequency operation even at very high step-down ratios. For switching noise sensitive applications, it can be externally synchronized from 300kHz to 2200kHz. The optional spread-spectrum frequency modulation further helping systems designers with better EMC management.<br /><br />The RTQ2105 offers precise constant current and constant voltage regulation. It is ideally suited for USB power delivery or charging super-capacitors. For applications that use long cable, the RTQ2105 offers cable drop compensation as well to maintain accurate regulation at the end of the long cable.<br /><br />The RTQ2105 provides complete protection functions such as input under voltage lockout, output under voltage protection, over current protection, and thermal shutdown. Cycle-by-cycle current limit provides protection against shorted outputs and soft-start eliminates input current surge during start-up. The RTQ2105 is available in WET-WQFN-24SL 4x4 (W-Type) package.

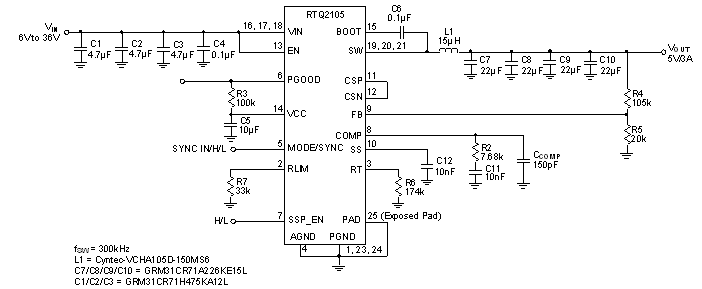

RTQ2105-QA Typical Circuit
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
scrollable-table
parameterTable
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
productFeature
<div class="spec-list"><ul class="lv1"><li>AEC-Q100 Grade 1 Qualified </li><li>Wide Input Voltage Range <ul class="lv2"> <li></li><li>4V to 36V (steady-state operation after VOUT settle) </li><li>3V to 36V (Soft-start is finished) </li></ul> </li><li>Maximum Output Current : 3A </li><li>Peak Current Mode Control </li><li>Integrated 70mΩ Switch and 70mΩ Synchronous Rectifier </li><li>Low Quiescent Current : 40μA </li><li>Fast 60ns Minimum Switch On-Time </li><li>Ultra-Short 65ns Minimum Switch Off-Time </li><li>Adjustable and Synchronizable Switching : 300kHz to 2.2MHz </li><li>Selectable PSM/FPWM at Light Load </li><li>Optional Spread-Spectrum Frequency Modulation for Low EMI </li><li>Externally Adjustable Soft-Start </li><li>Power Good Indication </li><li>Enable Control </li><li>Adjustable Output Voltage with Cable Drop Compensation for V<sub>OUT</sub> = 5V applications </li><li>Constant Current (CC) and Constant Voltage (CV) Regulation </li><li>0.8V ± 1.5% CV Reference Accuracy </li><li>Adjustable Current Limit </li><li>Adjacent Pin-Short Protection </li><li>Built-In UVLO, UVP, OTP </li></ul></div>
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
productImageSwitcher

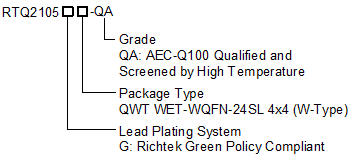

RTQ2105-QA Ordering Information
