The RTQ2117A combines a charging port controller, USB 2.0 high-speed data line (D+/D-) switch and a 3A synchronous buck converter. The RTQ2117A provides the electrical signatures on D+/D- to support charging schemes compatible with the USB 2.0 Battery Charging Specification BC1.2 and Chinese Telecommunication Industry Standard YD/T 1591-2009. Auto-detect mode is also integrated which supports USB 2.0 Battery Charging Specification BC1.2 Dedicated Charging Port (DCP), Divider 3 mode and 1.2V shorted mode to comply with the legacy fast charging mode of mobile devices. The RTQ2117A integrates a high efficiency, monolithic synchronous buck converter that can deliver up to 3A output current from a 3V to 36V wide range input supply and is protected from load-dump transients up to 42V. The RTQ2117A has constant current control to achieve adjustable USB current limit and implement the current sense signal for adjustable USB power output voltage with load line compensation. The converter includes optional spread-spectrum frequency modulation to overcome EMI issue and complete protection for safe and smooth operation in all applied conditions. Protection features include cycle-by-cycle current limit for protection against shorted outputs, soft-start control to eliminate input current surge during start-up, input undervoltage-lockout, output undervoltage protection, output overvoltage protection and over-temperature protection. The RTQ2117A can be used to support Type-A connector. The RTQ2117A is fully specified over the temperature range of T<SUB>J</SUB> = -40°C to 125°C and available in WETD-VQFN-32L 5x5.
3

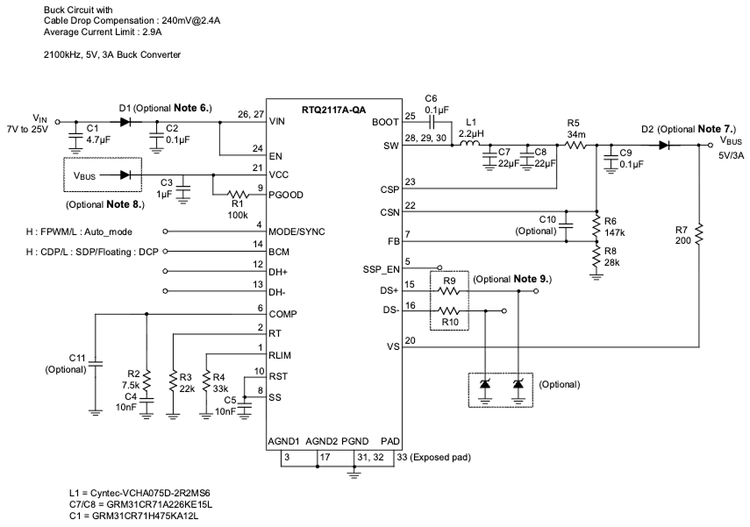

RTQ2117A-QA Typical Circuit
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
scrollable-table
parameterTable
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
productFeature
<div class="spec-list"><ul class="lv1"><li>CDP/SDP Mode per USB BC1.2 </li><li>USB Charging Port Controller - Automatic DCP Modes - DCP Shorted Mode and YD/T 1591-2009 - 2.7V Divider 3 Mode - 1.2V Mode </li><li>High Bandwidth 1.2GHz Data Switches </li><li>Support Mode Change Among SDP/CDP/DCP Auto </li><li>Keep Data Communication During Worse Cold Crank Situation at 3V </li><li>36V 3A Synchronous Buck Converter </li><li>Protection Function - DS+/DS- OVP - Over-Temperature Protection </li><li>Cycle-by-Cycle Overcurrent Limit Protection </li><li>Input Undervoltage Protection - VBUS Overvoltage Protection - Adjacent Pin-Short Protection </li><li>Power Good Indicator </li><li>Enable Control </li><li>HBM 8kV on DS+/DS- Pins </li><li>Wettable Flank Package </li><li>AEC-Q100 Grade 1 Qualified </li><li>Ambient Temperature Range: -40°C to 125°C </li><li>Junction Temperature Range: -40°C to 125°C </li></ul></div>
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
productImageSwitcher
RTQ2117A-QA Ordering Information
normal-table
card-list
products
productTable
evbImageSwitcher
normal-table
card-list
evb
evbTable
orderingDetail
technical-documents
RTQ2117A-QA
technicalDocumentMultipleTable
design-tools
RTQ2117A-QA
designToolMultipleTable
32
56
56
56
rt-blue-800
i18n(text.application-title.text-content)
applicationTitle
withLine
24
24
24
24
<div class="spec-list"><ul class="lv1"><li>Automotive Car Chargers </li><li>USB Power Chargers </li></ul></div>
