The RTQ2822A/B is a high-performance, synchronous step-down converter that can deliver up to 12A output current with an input supply voltage range of 4.5V to 17V. The device integrates low R<sub>DS(ON)</sub> power MOSFETs, accurate 0.6V reference and an integrated diode for bootstrap circuit to offer a very compact solution.<br /><br />The RTQ2822A/B adopts Advanced Constant On-Time (ACOT<sup>®</sup>) control architecture that provides ultrafast transient response and further reduce the external-component count. In steady states, the ACOT<sup>®</sup> operates in nearly constant switching frequency over line, load and output voltage ranges and makes the EMI filter design easier. <br /><br />The device offers a variety of functions for more design flexibility. The selectable switching frequency, current limit level and PWM operation modes makes the RTQ2822A/B easy-to-use over wide application range. Independent enable control input pin and power good indicator are also provided for easy sequence control. To control the inrush current during the startup, the device provides a programmable soft start-up by an external capacitor connected to the SS pin. Fully protection features are also integrated in the device including the cycle-by-cycle current limit, OVP, UVP, input UVLO and OTP. <br /><br />The RTQ2822A/B is available in a thermally enhanced VQFN-18L 3.5x3.5 (FC) package.

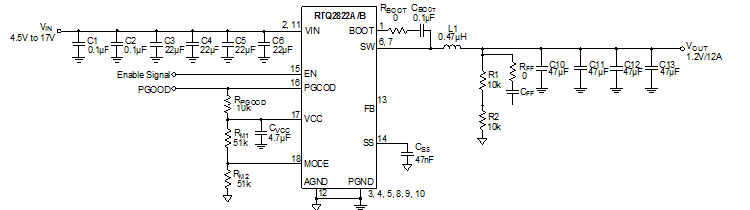

RTQ2822A/RTQ2822B Typical Circuit
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
scrollable-table
parameterTable
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
productFeature
<div class="spec-list"><ul class="lv1"><li>4.5V to 17V Input Voltage Range </li><li>Integrated 9.8mΩ/4.5mΩ MOSFETs </li><li>0.6V ±1% Voltage Reference </li><li>Adjustable Output Voltage from 0.6V to 5.5V </li><li>Supports Ceramic Output Capacitor </li><li>ACOT<sup>®</sup> Control for Fast Transient Response </li><li>Selectable Switching Frequency (400kHz/800kHz/1200kHz) </li><li>Selectable Current Limit Level </li><li>Power Good Indicator </li><li>Programmable Soft-Start Time with a Default 1ms </li><li>Monotonic Start-Up into Pre-Biased Outputs </li><li>18-Lead VQFN (FC) Package </li></ul></div>
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
productImageSwitcher

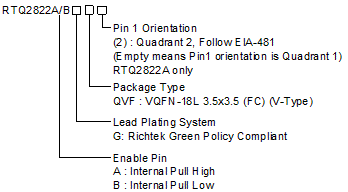

RTQ2822A/RTQ2822B Ordering Information
normal-table
card-list
products
productTable
evbImageSwitcher
normal-table
card-list
evb
evbTable
orderingDetail
technical-documents
RTQ2822A/RTQ2822B
technicalDocumentMultipleTable
design-tools
RTQ2822A/RTQ2822B
designToolMultipleTable
32
56
56
56
rt-blue-800
i18n(text.application-title.text-content)
applicationTitle
withLine
24
24
24
24
<div class="spec-list"><ul class="lv1"><li>Server, Storage and Network Equipment </li><li>Telecom Infrastructure </li><li>Point of Load (POL) Power Modules </li><li>High Density DC-DC Converters </li><li>High End Digital TV </li></ul></div>
